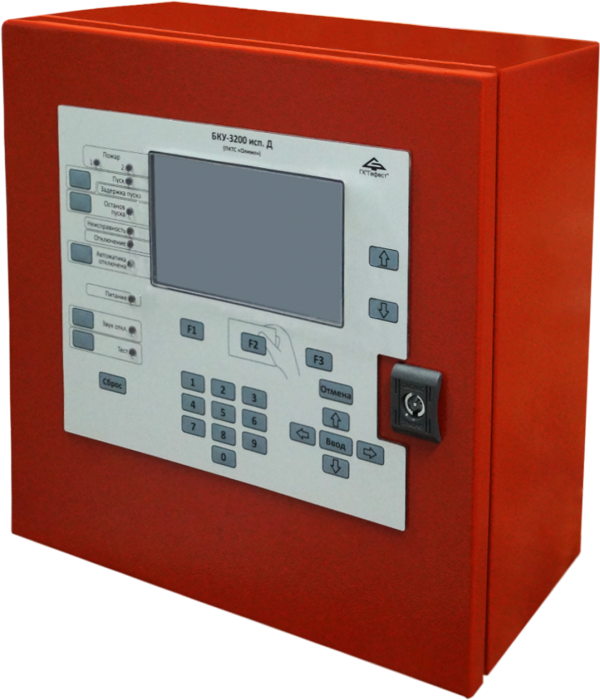

"Olimp" control panel

Possible algorithms of sprinkler activation:

     • Individual activation

     • group static activation

     • group dynamic activation

Uniqueness

“Olimp” provides electrical activation according to the predetermined algorithm. With this complex a conventional sprinkler extinguishing unit is transformed into a modern intellectual addressable system, where:

• each sprinkler has its own address;
• condition of sprinklers is constantly monitored;
• during the actuation of any automatic fire detector (e.g. the heat one), sprinklers are activated forcibly in accordance with the activation algorithm installed for a definite spot on the protected object;

• electrical activation circuit to every sprinkler and all the electrical circuits are monitored for disconnection and short-circuit.
• It is possible to implement a manual activation of any sprinkler in the protected compartment;
• all the troubling events are recorded in nonvolatile backup memory
• all the events of the system can be displayed on the plan via ARM “Olimp”

Reliability

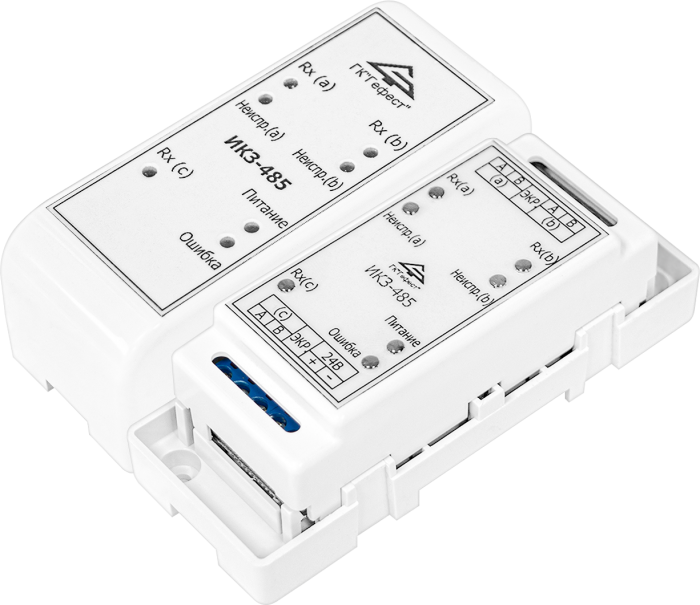

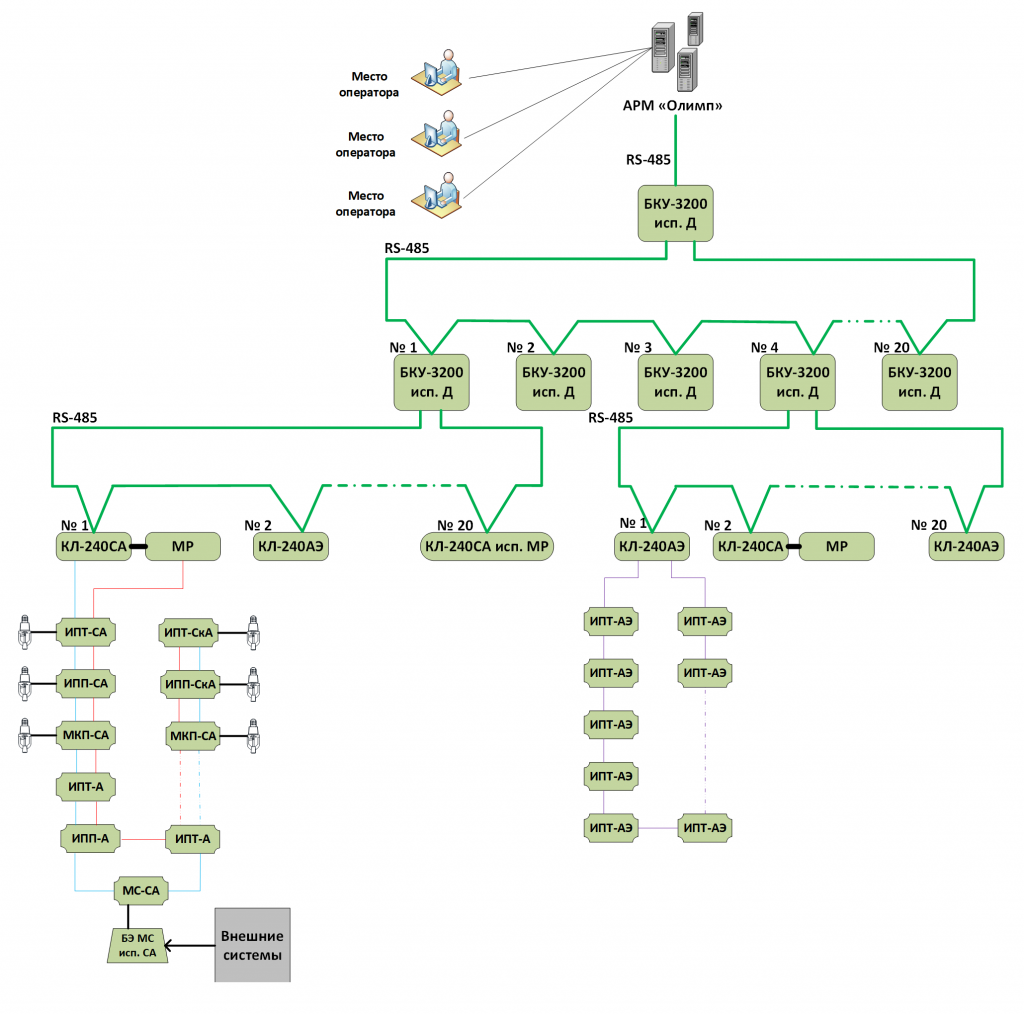

 “Olimp” has loop connection lines with short-circuit isolators RS-485, which provides stable operation of the equipment even under of the interface line.

Activation of sprinklers is possible only when there are two signals “Fire” from 2 different devices.

Informativity

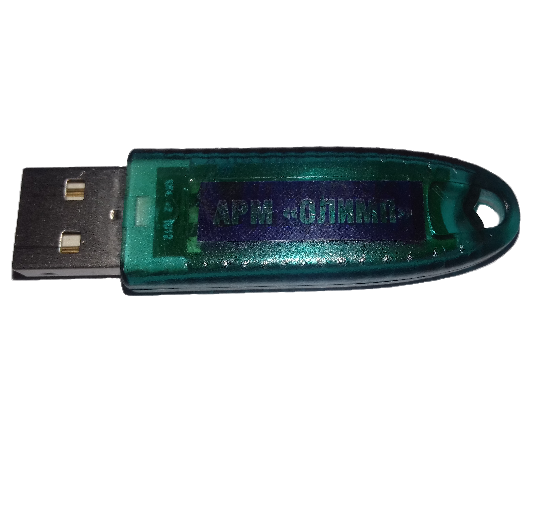

Use of ARM “Olimp” software makes it possible to display an accurate placement of damaged or activated sprinkler on the plan, which decreases the reaction time of the event and search of the activated sprinkler comparing to a conventional system.

Technical specification

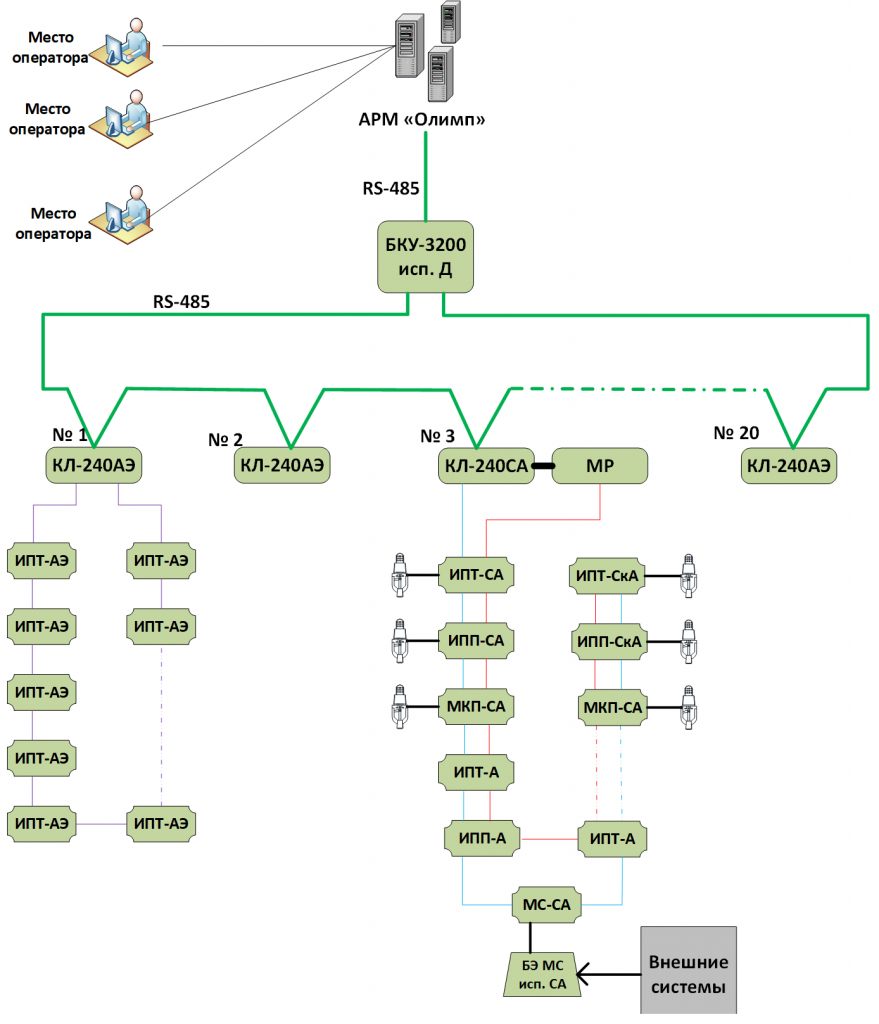

“Olimp” is a fire receiving and monitoring device. The system represents a block modular unit with wired connection lines and possibility of expansion of its parameters via increasing of modules and connection of external components.

Informative capacity of the system allows connection up to 96000 addresses, which can protect compartments with total area more than 100 000m2
