General and technical data

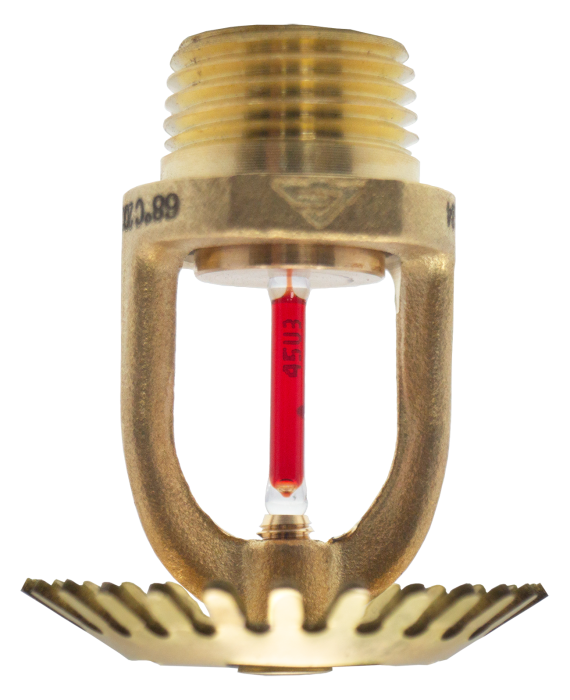

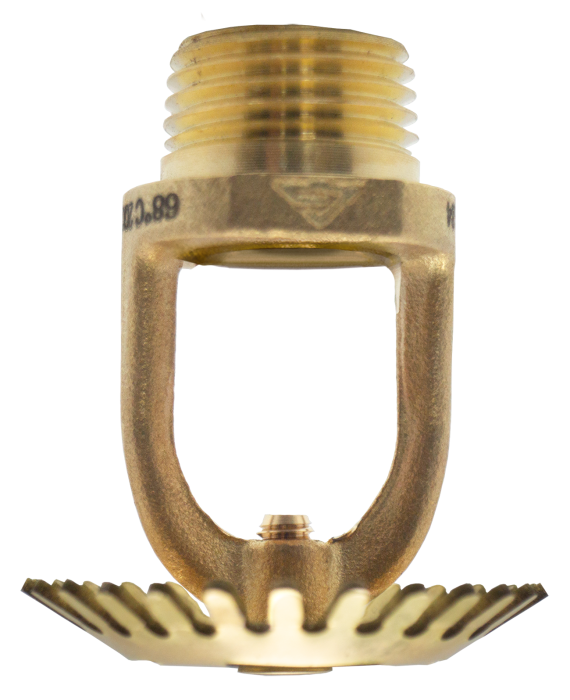

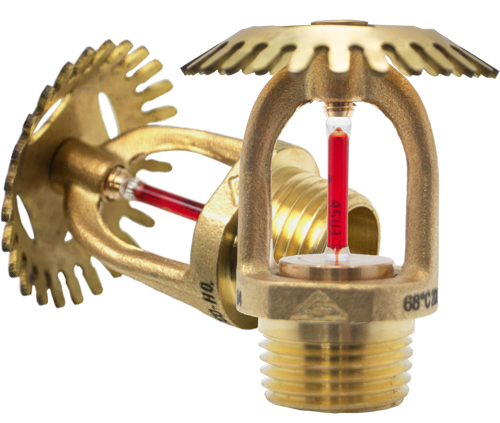

Rack sprinklers for high-storage warehouses.
Sprinklers "Aqua-Gefest" are implemented in automatic extinguishing units.
These sprinklers are designed to protect the premises with high-stack storage of goods.
Their installation is carried out in the intra-rack space and provides the fastest and most effective extinguishing of racks. Design of installations is carried out by SP 241.1311500.
We produce sprinklers with two capacity factors: 0.47, 0,80 and 0.84.
Their installation is carried out in the intra-rack space and provides the fastest and most effective extinguishing of racks. Design of installations is carried out by SP 241.1311500.
We produce sprinklers with two capacity factors: 0.47, 0,80 and 0.84.
Technical features
Protected area - not less than 3 sq.m.
Actuation temperature - 57°С, 68°С , 79°С, 93°С.
Bulb of standard response - 5 mm, of fast response - 3mm, 2,5 mm
Thread - 1/2 inches, 3/4 inches
Finish - without cover (bronze), with cover (nickel, white)
Weight - 0,076 kg
Overall dimensions - 60х30 mm.
313.00 rub.
313.00 rub.
