Suspensions

Suspensions for pipes are used for free horizontal placement of pipes of automatic extinguishing units and provide secure fixation of the pipeline on set height. Used in all types of buildings: living, social manufacturing and storage.

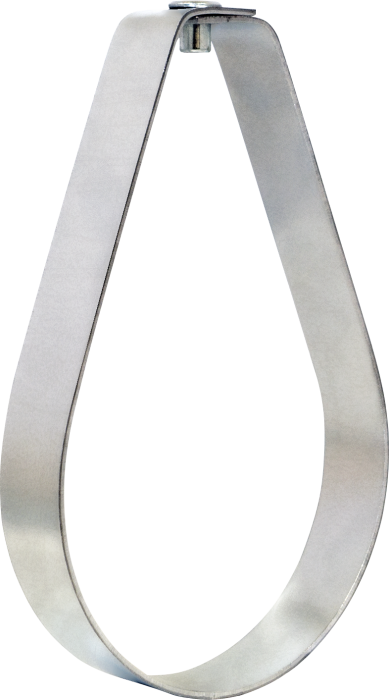

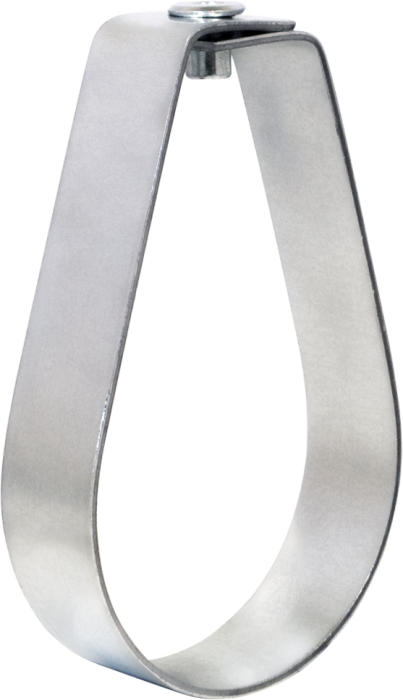

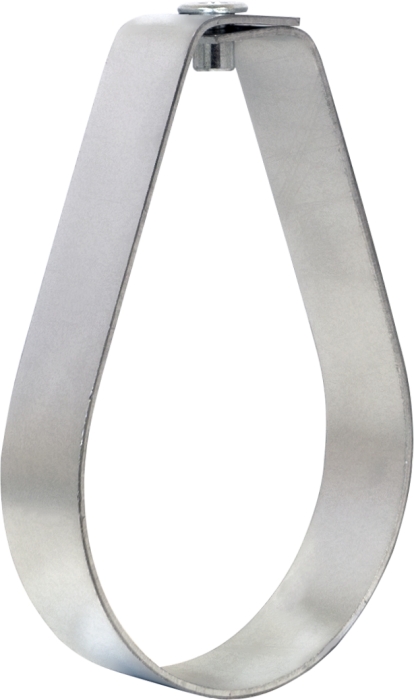

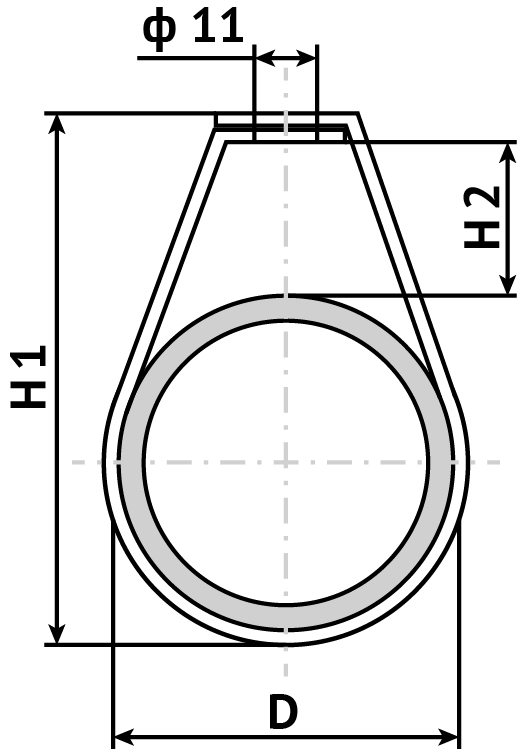

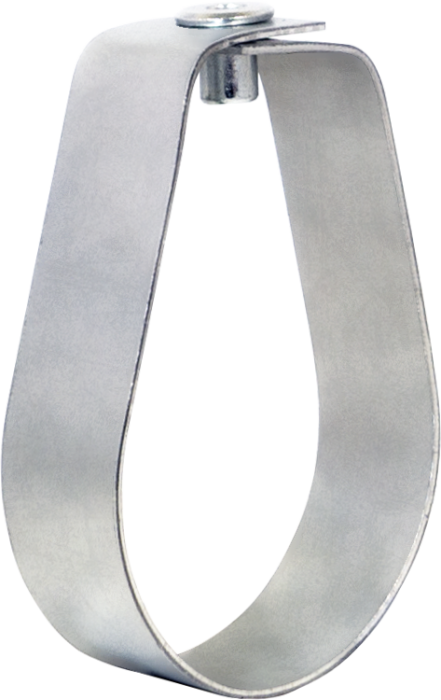

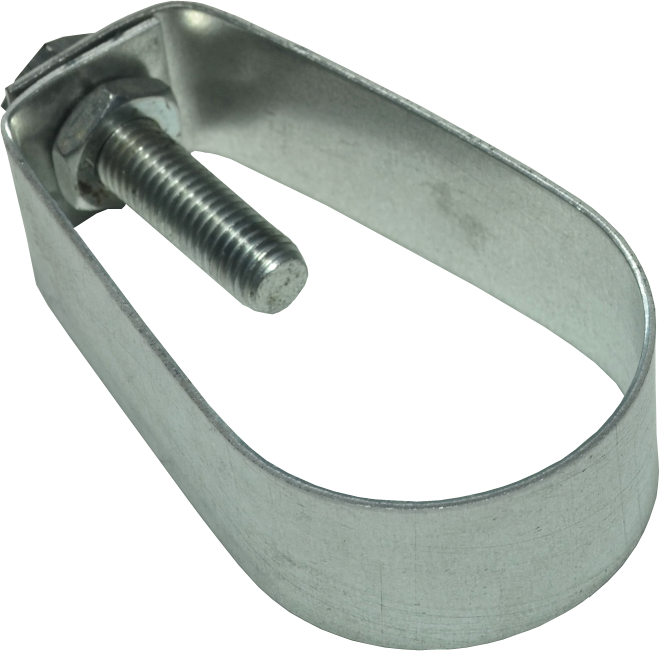

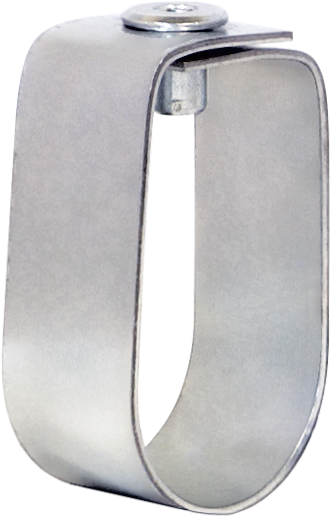

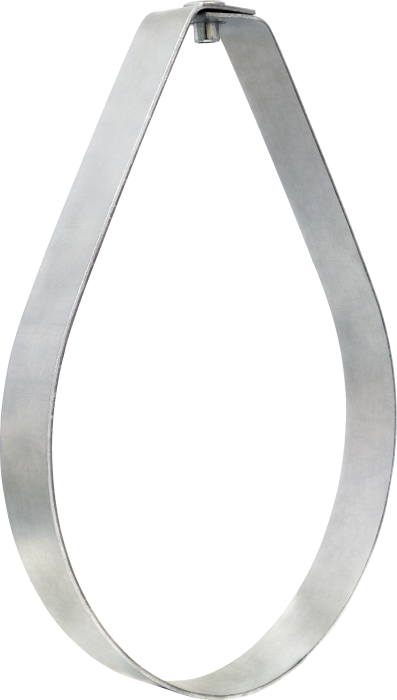

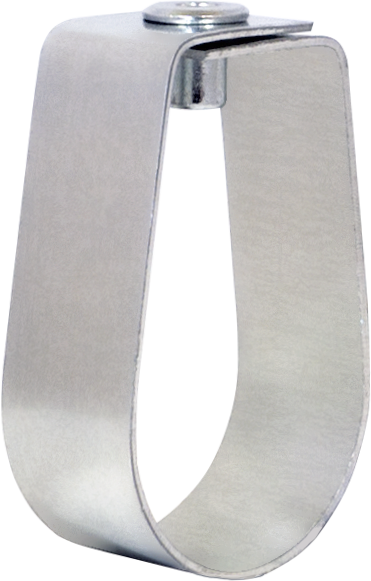

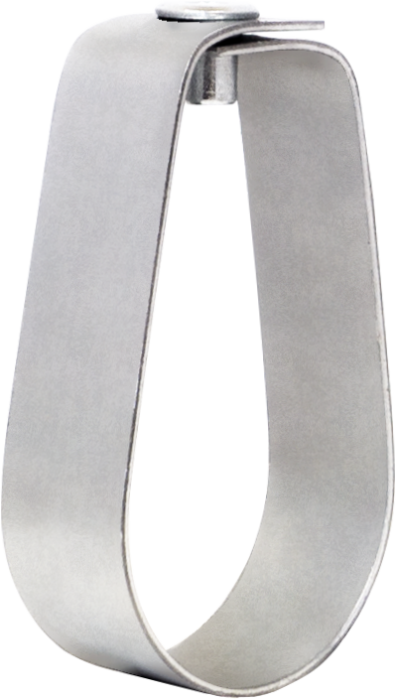

Suspension for pipes	Size reference	- Made from sheet steel 08PS-5 RNS 14918 with following hot zincification.   - Height of pipe placement in extinguishing system is controlled by a threaded stud.   - Suspensions for pipes of SP D” are offered, where D”– is a nominal size of a pipe gap in inches, for which given suspension is aimed.
Standard sizes and technical rates of suspensions for water extinguishing pipes Symbolic notation Nominal size, mmD Sizes, mm Weight, kg/ 100 ea. Max capacity, кN C1 C2 SP 1" 25 63 23 6.2 1.3 SP 11/4" 32 78 26 7.8 1.3 SP 11/2" 40 90 35 9.2 1.3 SP 2" 50 93 26 10.2 1.3 SP 21/2" 65 125 42 12.2 2.2 SP 3" 80 136 41 13.3 2.2 SP 4" 100 179 55 16.4 2.2 SP 6" 150 235 102 22.1 2.2
