General and technical data
Screen-printed light fire panels: “Irida-Gefest” are used for operation in a constant operation mode such as “EXIT”, “PUMP STATION”, “FIRE STANDPIPE” etc.
For indoor installation only.
The body of the panel is made from galvanized steel (painted with a polymeric white paint and can be painted ion any RAL color according to the customer’s will) and from stainless steel.
Certificate of Conformity to TR EEU for Irida-Gefest visual alarm
Peculiarities

For indoor installation only.
The body of the panel is made from galvanized steel (painted with a polymeric white paint and can be painted ion any RAL color according to the customer’s will) and from stainless steel.
Form and sizes of the panels are corresponded to GOST 12.4.026-2015.
Flashing models of screen printed light fire panels have a flashing frequency in the range from 0,5 to 2Hz.Certificate of Conformity to TR EEU for Irida-Gefest visual alarm
Peculiarities
- Provide contrast visibility of signs in flashing conditions up to 10000 lux (sunny day)
- Non-visible in a switch-off mode
- IP44 and IP66 protective cover
- LED screen
- Temperature range from –40°C to +55°C
- For outside installation a cap should be used
- Any pictograms in any language can be placed
- Clearly inform about operation mode of a panel
- There are fireproof and low-temperature-resistance models
- Provide a contrast visibility of a sign in direct illumination conditions:
Screen printed | up to 500 lux |
P series |
up to 10000 lux |
SP series | up to 50000 lux |
Technical characteristics
Electrical supply – from an AC power supply with U =24V
Operability under voltage change:
-
Screen printed – from 10,5V to 48V (U max)
-
P series, SP series – from 18V to 30V (U max)
Useful current:
Screen printed |
with the length less than 8 symbols - not more than 25 mA more than 8 characters long - up to 35 mA |
P series |
from 18V to 30V (U max) |
SP series |
from 18V to 30V (U max) |
Protective cover – IP44 and IP66
Sizes, mm:
1х8 - 300х80х40

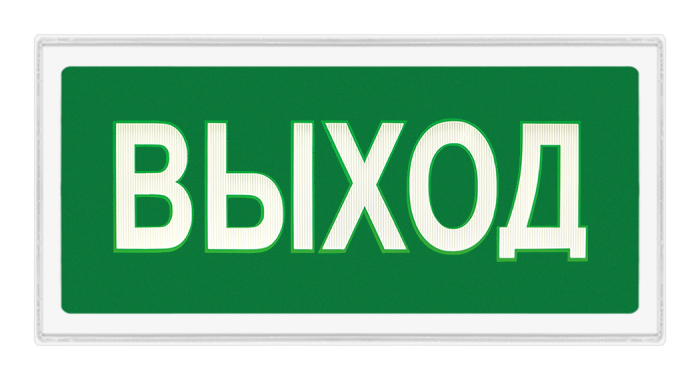

2х5 - 300х150х40

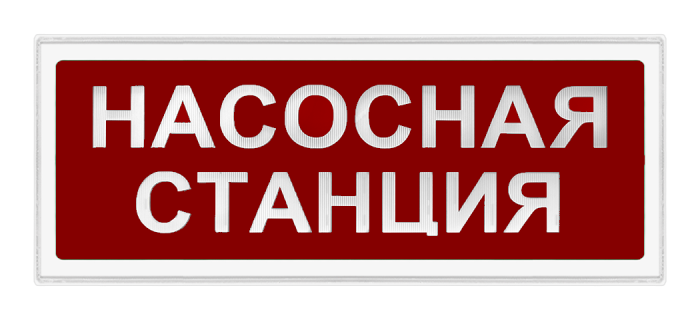

2х8 - 350х150х40

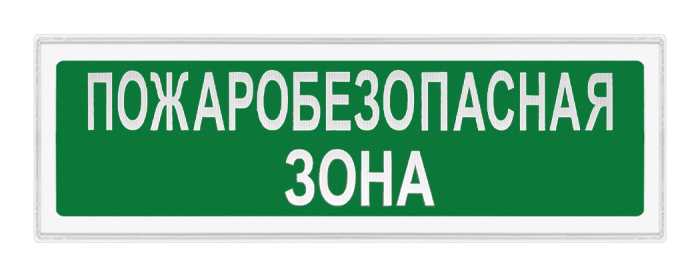

2х10 - 425х150х40
Connection diagram
