Description

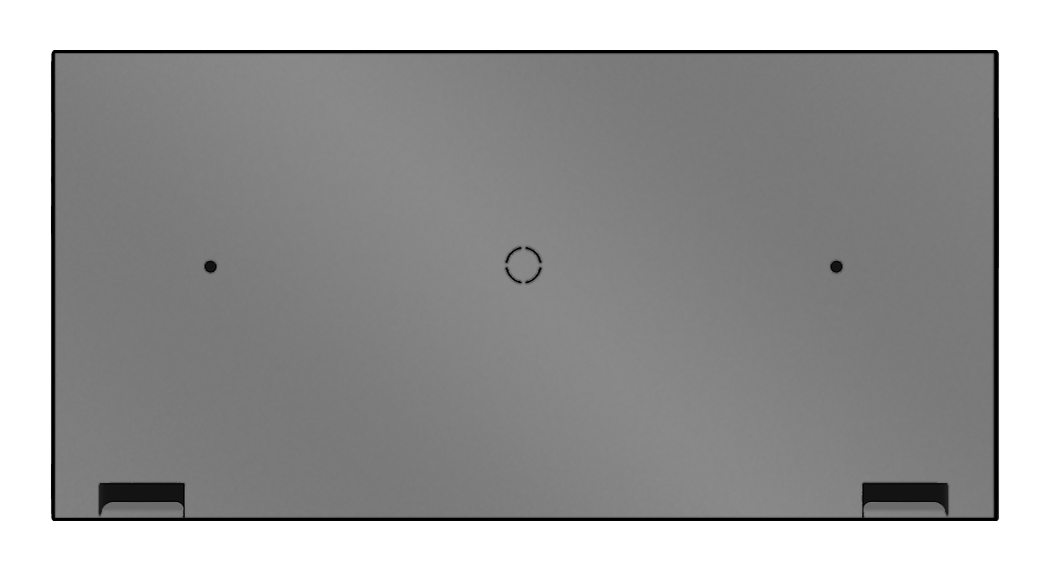

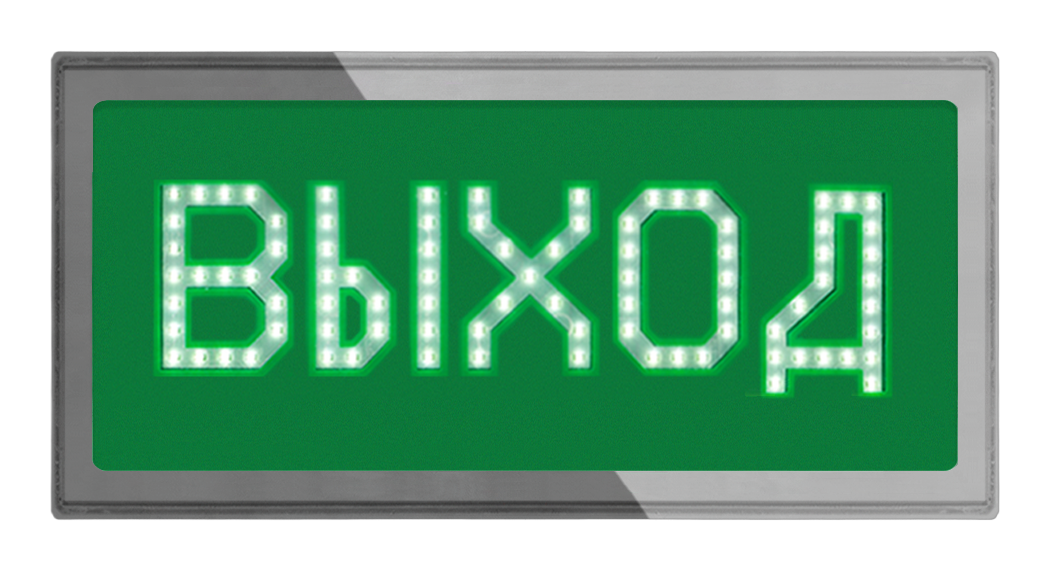

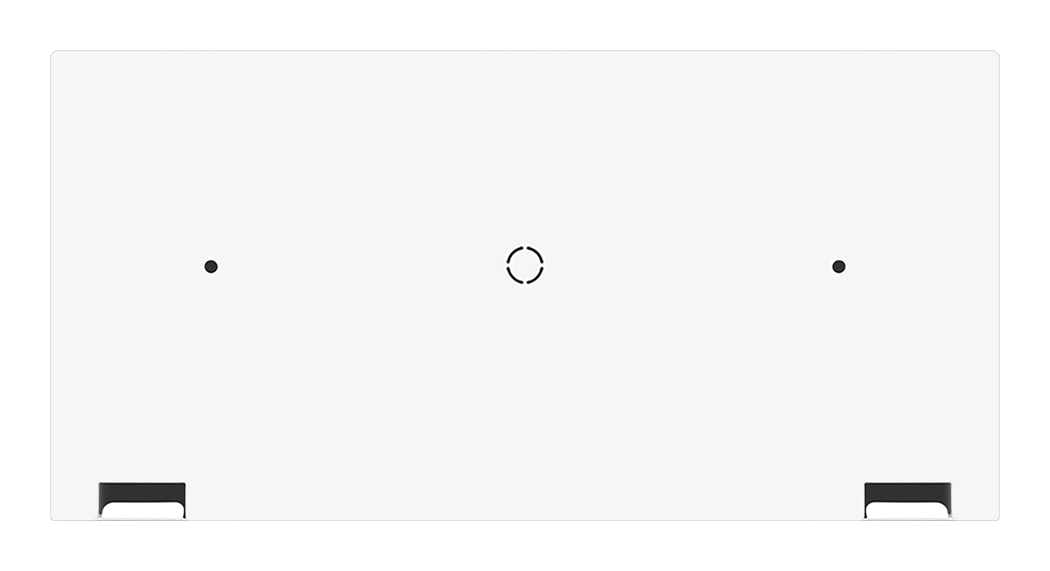

The body of the panel is made from galvanized steel (painted with a polymeric white paint and can be painted ion any RAL color according to the customer’s will) and from stainless steel.
Signal colors, form and sizes of the panels are corresponded to GOST 12.4.026-2015.

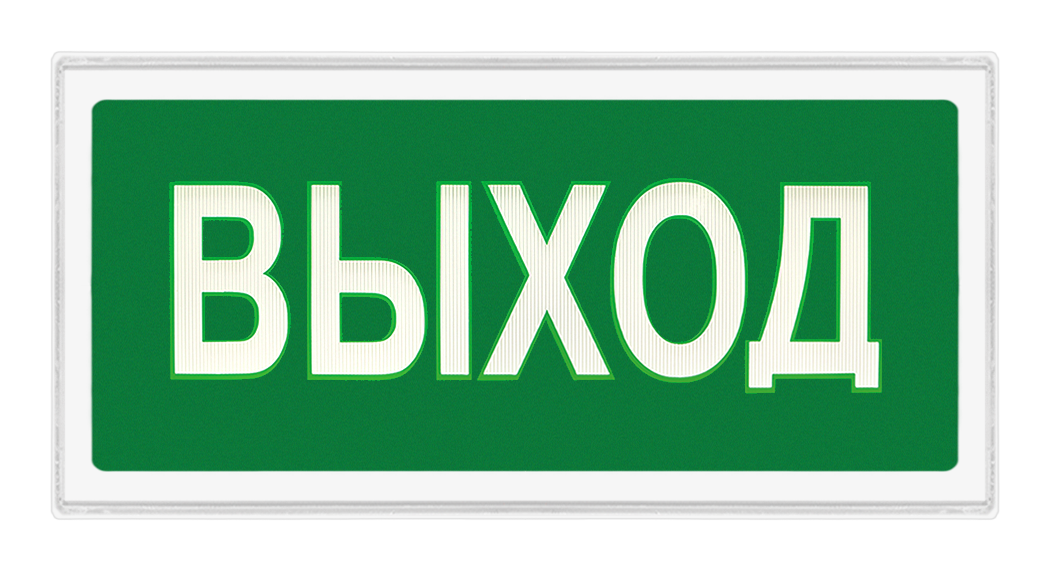

Any text or pictographic image can be used.
Peculiarities:
- Provide a contrast visibility of a sign in direct illumination conditions up to 500 lux
- For outside installation a cap should be used
- Any pictograms in any language can be placed
- Practiced in a screen printed manner which is optimal for manufacturing of light fire panels
- Clearly inform about operation mode of a panel
- Protective cover – IP44 and IP66
- Weight - 1,2 kg
Technical characteristics:
Electrical supply – from an AC power supply with U =24V
Operability under voltage change – from 10,5V to 48V (U max)
Useful current:
-with the length less than 8 symbols - not more than 25 mA
-more than 8 characters long - up to 35 mA
Sizes, mm:
2х5 - 300х150х30
Connection diagram
Characteristics
Designation | 2х5 |
Dimensions | 300х150х40 mm |
Power supply: current, no more | 25 mA |
Power supply: voltage | 24 V |
Sheath protection degree | IP 44, IP 66 |
Temperature regime | from –40 to + 55°С |
Weight | 1,2 kg |
