Visual alarm

The body of  the visual alarm “Irida-Gefest”  is made from galvanized steel (painted with a polymeric white paint and can be painted ion any RAL color according to the customer’s will).

Form and sizes of the panels are corresponded to GOST 12.4.026-2015.

Form and sizes of the panels are corresponded to GOST 12.4.026-2015.

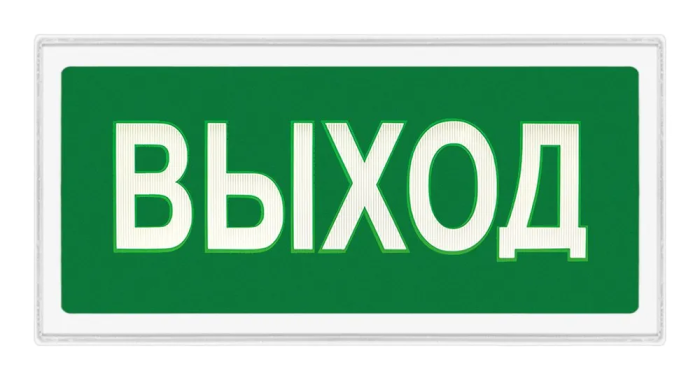

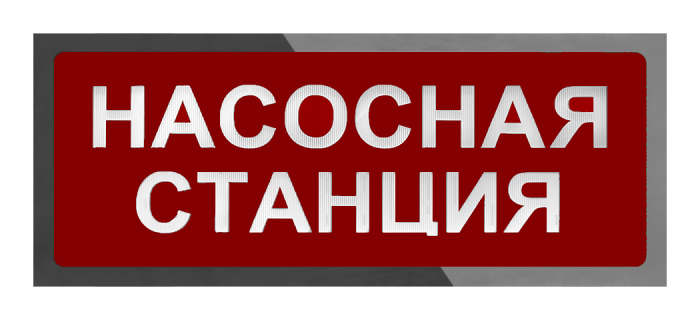

Flashing models of screen printed light fire panels have a flashing frequency in the range from 0,5 to 2Hz.

Certificate of Conformity to TR EEU for Irida-Gefest visual alarm

Peculiarities

• IP66 protective cover or IP44
• LED screen
• Temperature range from –40°C to +55°C

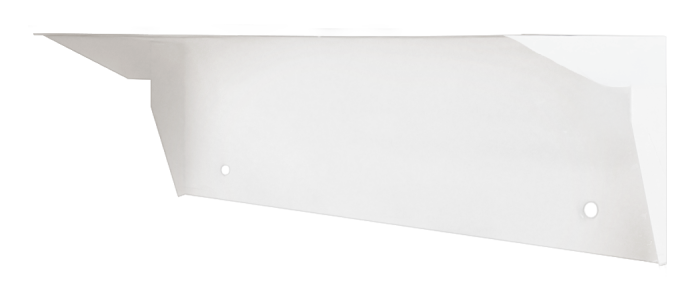

• For outside installation a cap should be used
• Any pictograms in any language can be placed
• Clearly inform about operation mode of a panel
• There are fireproof and low-temperature-resistance models
•

• Certificate of Conformity to TR EEU for Irida-Gefest visual alarm
•

• Technical characteristics


Electrical supply – from an AC power supply with U =24V

Operability under voltage change:

• Screen printed – from 10,5V to 48V (U max)

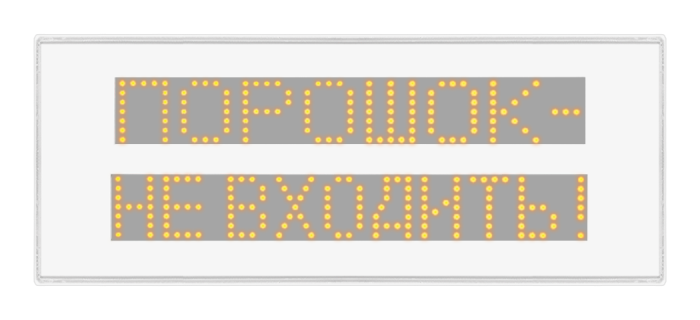

• P series, SP series  – from 18V to 30V (U max)

Useful current:

Screen printed	with the length less than 8 symbols - not more than 25 mA   more than 8 characters long - up to 35 mA
P series	from 18V to 30V (U max)
SP series	from 18V to 30V (U max)

Protective cover – IP66,  IP44

• Provide a contrast visibility of a sign in direct illumination conditions:

Screen printed	up to 500 lux
P series	up to 10000 lux
SP series	up to 50000 lux

Sizes, mm:

1х8 - 300х80х40

2х5 - 300х150х40

2х8 - 350х150х40

2х10 - 425х150х40

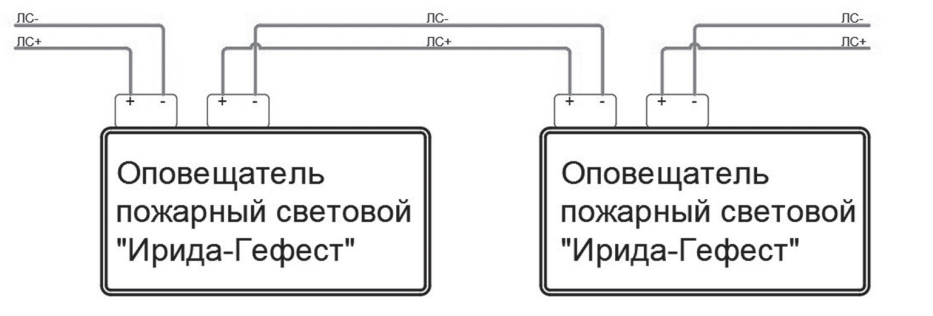

Connection diagram
