"Olimp-I" control panel

PKTS "Olimp-I" is a fire receiving, control and monitoring device can be used at sites of any complexity.

Provides:

• fire detection;
• monitoring of sprinklers with electrical activation (EAS);
• monitoring of warning and evacuation systems in case of fire of 1-2 types;
• monitoring of engineering, technological equipment and other devices;
• display the status of the automatic extinguishing installation in real time.

The system is block-modular, addressable-analog with wired communication lines and the possibility of expanding its parameters by adding modules and connecting external components.

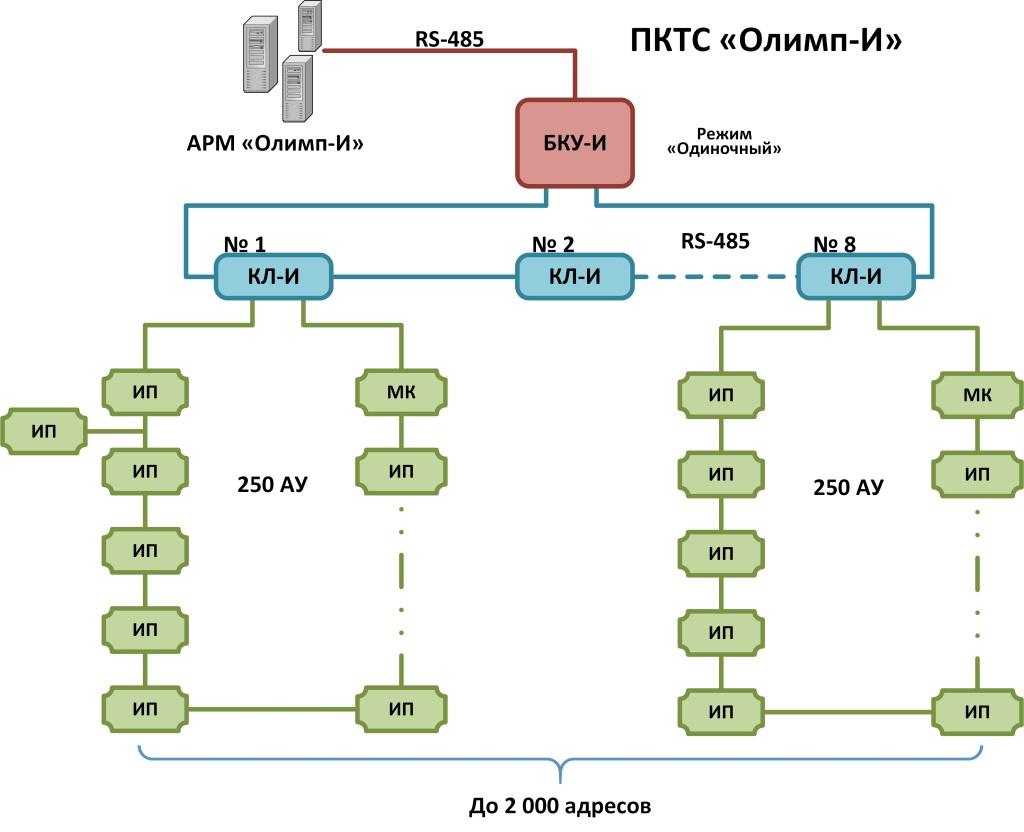

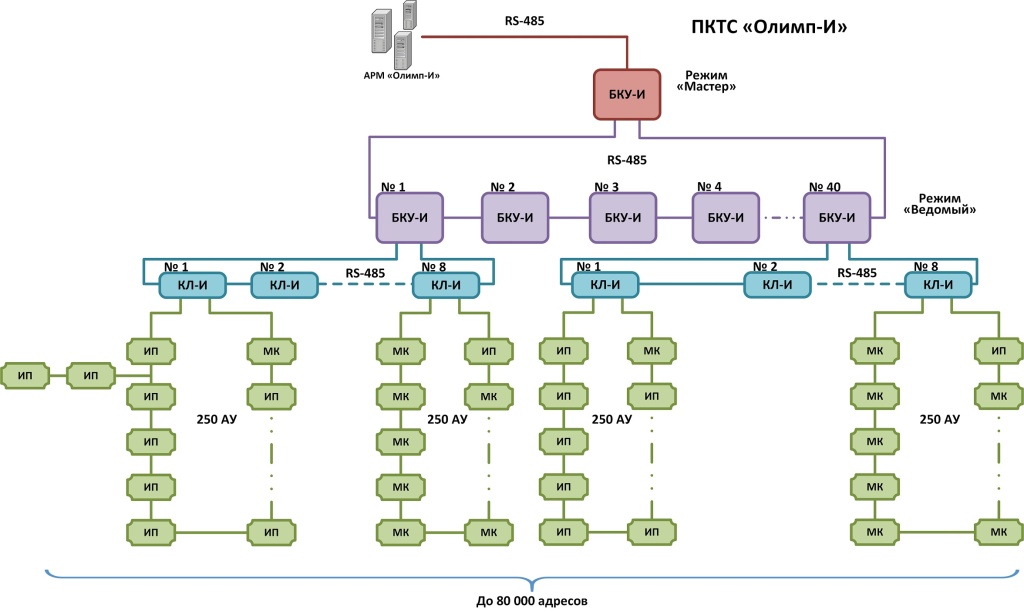

System composition:

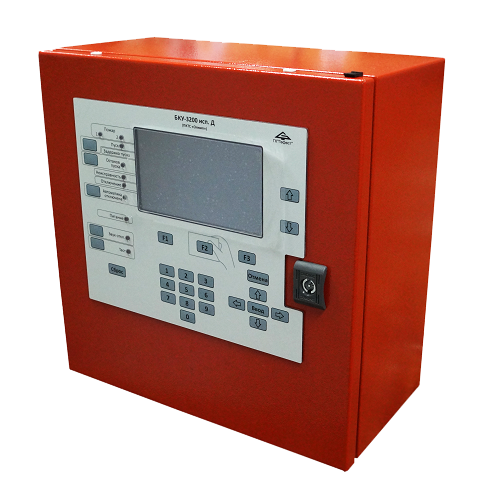

• monitoring and control unit BKU-I;
• local KL-I controller;

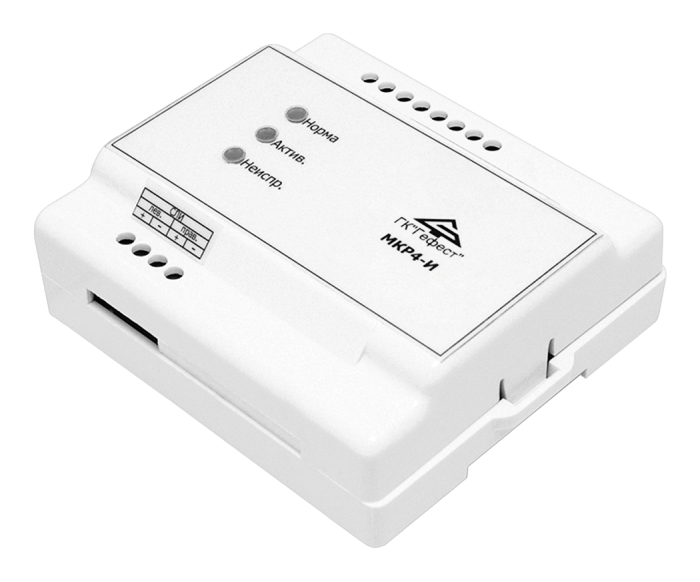

• addressable devices AD (control modules, fire detectors (including satellite detectors) of Gefest series);
• ARM "Olimp-I" software (optional).

Uniqueness:

Olimp-I allows you to perform electrical of sprinklers according to the program defined at the design stage. Olimp-I implements the following algorithms of EAS activation:

• individual activation of the EAS;
• group static activation of the EAS;
• group dynamic activation of the EAS;
• for each address can be defined an individual list of addresses to be triggered by the "Fire" signal (Algorithm C according to SP 484.1311500.2020).

When using this complex traditional automatic water fire sprinkler system is transformed into a modern intelligent addressable system, in which:

• Each sprinkler/sensor has its own address;
• For each address, an individual list of addresses can be set to be triggered by the "Fire" signal (Algorithm C according to SP 484.1311500.2020);
• For each zone, an individual group of triggering addresses can be set (bailout group);
• The serviceability of all communication lines included in the system is monitored;
• it is possible to carry out a manual start of any EAS;
• all events are recorded in non-volatile memory;
• all system events can be visually displayed on the object plan with the help of ARM "Olimp-I";
• The information capacity of the system allows the protection of objects with an area of more than 100,000 square meters.

Reliability

All communication lines in the Olimp-I are circular and the devices have built-in short-circuit isolators. This rules out failure of any system function or loss of communication with any device in case of any single communication line fault (according to SP 484.1311500.2020).

EAS can be activated only if there are "Fire" signals from two detectors (Algorithm C according to SP 484.1311500.2020). For example, by two different physical principles of fire detection (signal from heat and smoke detectors), which increases protection against false alarms.

For the convenience of working with the system and responding to events, you can use the software Olimp-I, which allows you to display on the plan of the protected object the exact location and state of the boosters. This reduces the time to find the location of, for example, a faulty AD, and also allows you to visually assess the current state of the system.
