Electrical junction boxes IP66

General and technical data

Junction boxes KM-IP66 are designed for connection and branching of cable lines. Used for mounting indoors and outdoors under a canopy.

The body of junction boxes is made of 1,2 mm thick galvanized steel and is covered by polymeric paint. It has double protection against corrosion because of galvanic treating and polymeric cover. Elements of connections and fittings also have galvanic anti-corrosion cover. Density of contact between the cap and the body is implemented via a silicon pad.

On the cover and on the housing there are grounding clamps "PE". The side walls are equipped with stainless steel cable glands providing the protection degree not less than IP66.

The box is equipped with a DIN rail on which switching devices are placed.

It is possible to use cables laid in metal hose, corrugated stainless pipe, pipe for water and gas. You can find types of cable glands used for cable connection laid in a metal hose, corrugated stainless pipe, pipe for water and gas below.

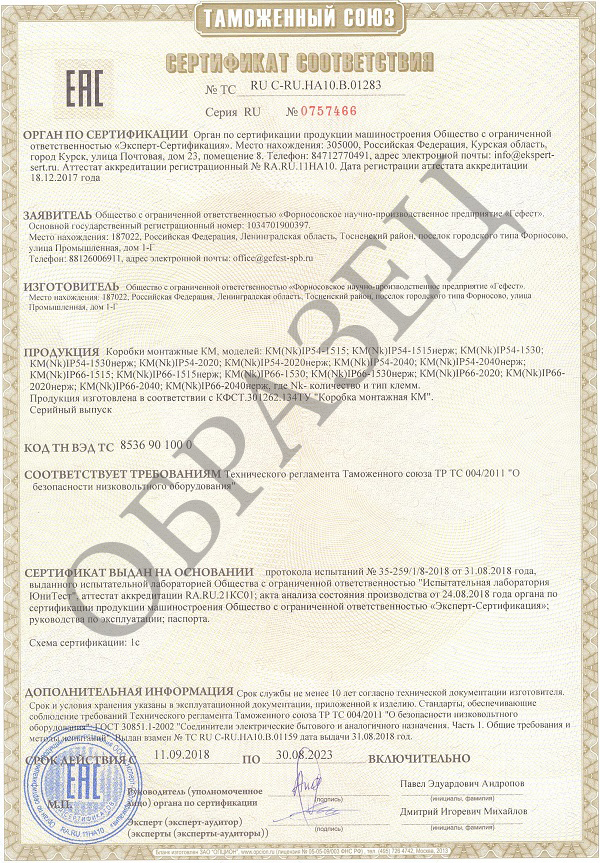

The boxes are certified for compliance with the requirements of technical regulations: ТR CU 004/2011 "About safety of low-voltage equipment".

DIN rail profile	Example of installation of terminal blocks on the DIN rail	Example of high angle installation of terminal blocks

Advantages:

Protection degree IP66
Climatic modification as per GOST 15150: EC 1.
Temperature range: from -40ºС to +100ºС.
The diameter of the connected cable for standard cable glands M16, M20, M25: 4-18 mm.
It is possible to color boxes according to RAL.

Modification

Modification designation	Size**, mm	Q-ty of inputs, up to

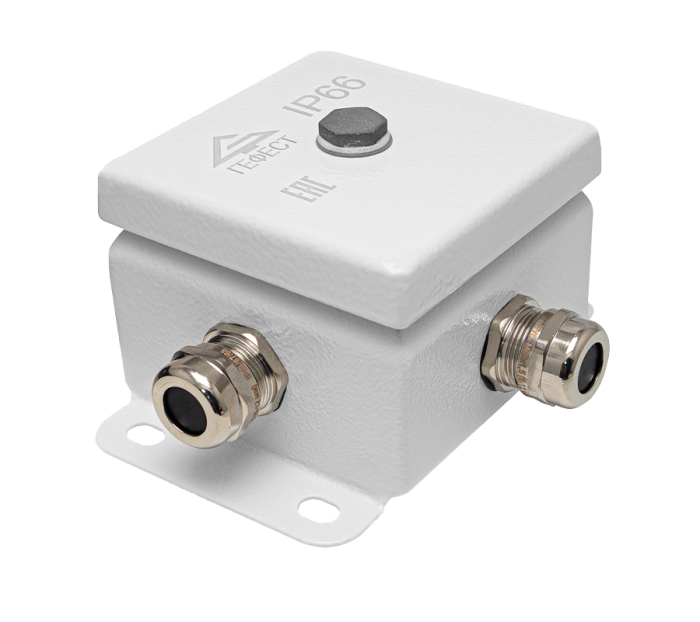

KM-IP66-0808	80x80x62	4

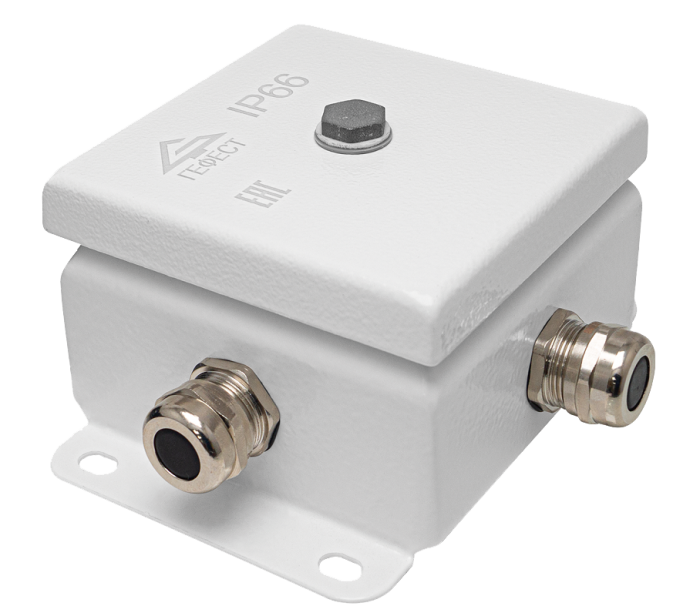

KM-IP66-1010	100x100x62	4

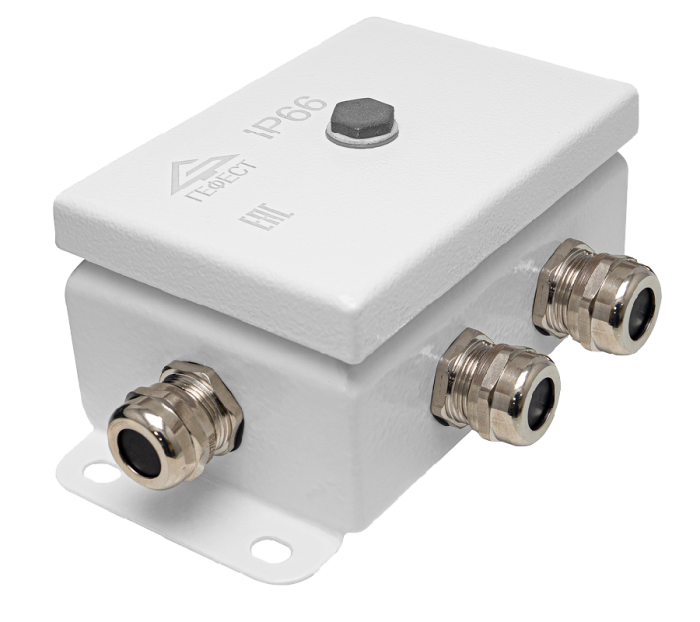

KM-IP66-0812	80x100x62	6

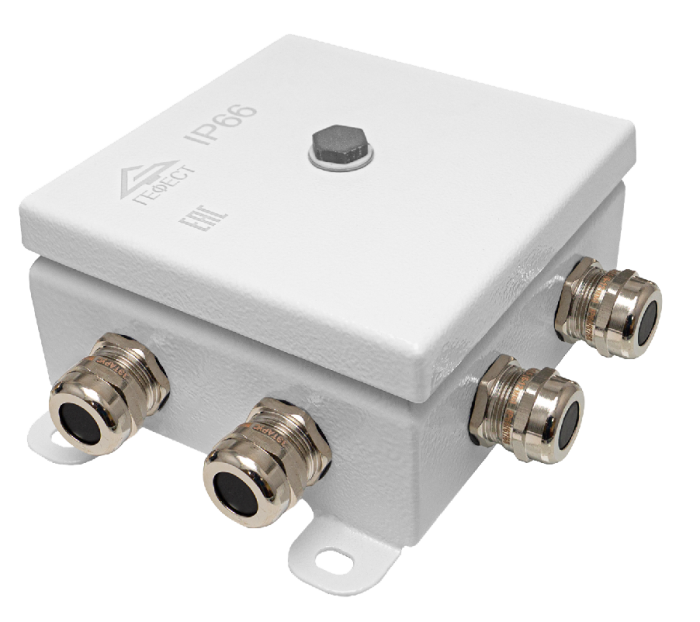

KM-IP66-1212	120x120x62	8

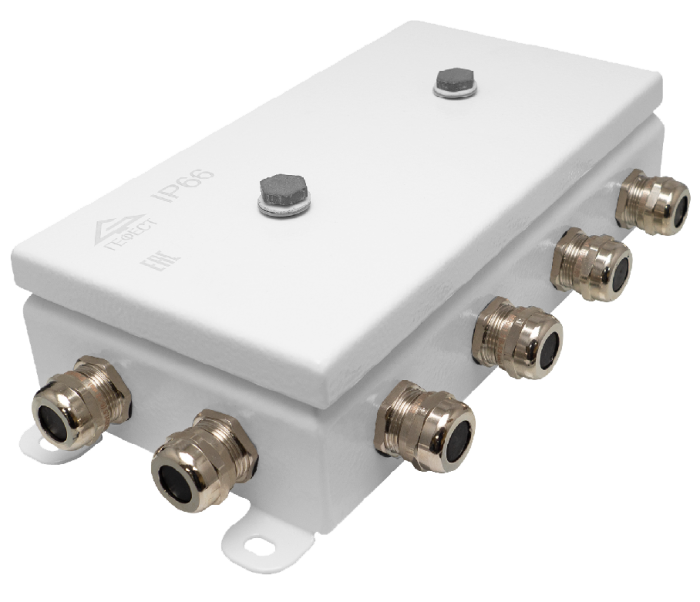

KM-IP66-1224	120x240x62	12

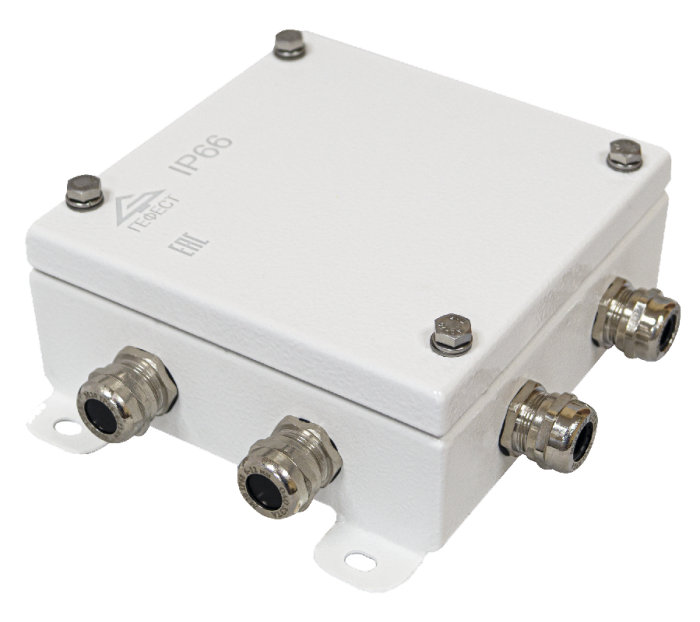

KM-IP66-1515	150х150х62	8

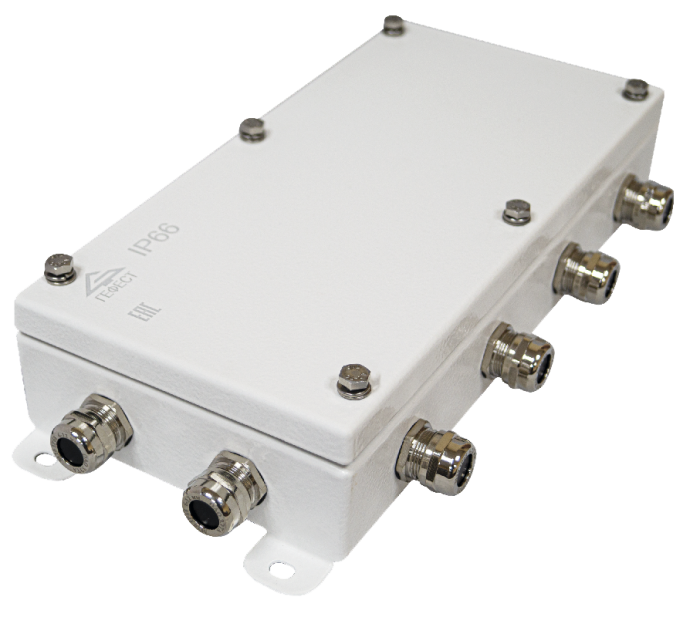

KM-IP66-1530	150х300х62	12

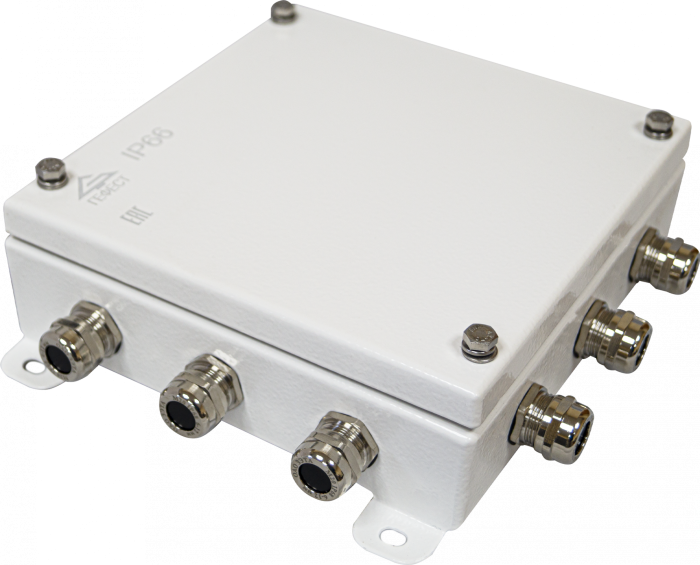

KM-IP66-2020	200х200х62	12

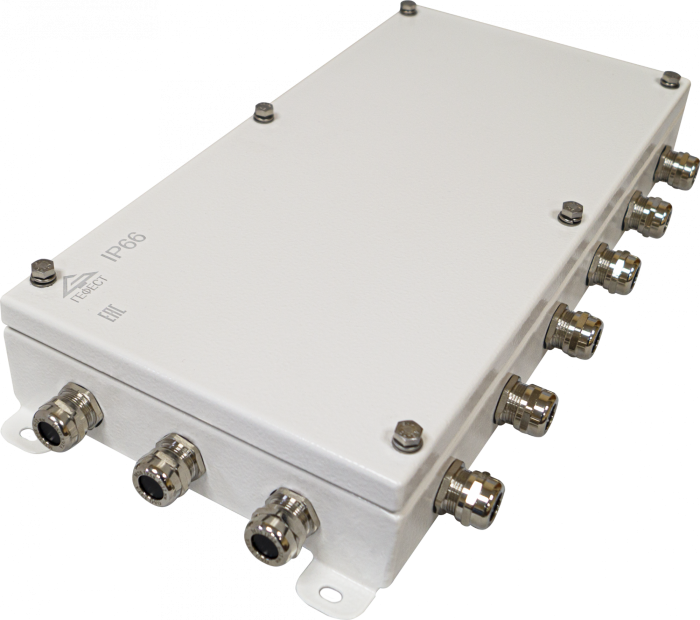

KM-IP66-2040	200х400х62	20

* Cable glands of other diameter can be installed on customer’s demands if technological capability of such installation is available. In this case, possible quantity of cable glands can differ from values mentioned in the table.

** Without regard to hangers and inputs

Designation of junction boxes during the order

KM -IP66 х where:

KM – denomination;

IP66- degree of protection;

х - designation of size of a junction box

Types of cable glands used for connection of the cable laid in a metal hose, corrugated stainless pipe, pipe for water and gas below shall be specified during the order.

Types and manufacturers of cable glands can be changed at the discretion of the manufacturer keeping all the basic properties.

Ordering price of non-standard cable glands and RAL painting are on request.

Available sizes and materials of cable glands for FJBG IP66

It is possible to make non-standard cable glands on the customer’s demand.

Possible maximum and minimum diameters of cable armor:

- from 3 mm to 6,5 mm

- from 4 mm to 8 mm

- from 6 mm to 12 mm (standard shipment)

- from 10 mm to 14 mm

- from 8 mm to 16 mm

- from 13 mm to 18 mm

Cable glands can be manufactured from brass with covered with or from stainless steel.
