LED visual alarm SP-series

The body of the panel is made from stainless steel and galvanized steel (painted with a polymeric white paint and can be painted ion any RAL color according to the customer’s will).

Signal colors, form and sizes of the panels are corresponded to GOST 12.4.026-2015.

For indoor installation only.

Certificate of Conformity to TR EEU for Irida-Gefest visual alarm

Peculiarities:

• Provide a contrast visibility of a sign in direct illumination conditions up to 50000 lux
• LED screen
• For outside installation a cap should be used
• Any pictograms in any language can be placed
• Temperature range from -40 to +55
• Clearly inform about operation mode of a panel
• Protective cover – IP44 and IP66

Technical characteristics:

Electrical supply – from an AC power supply with U =24V

Operability under voltage change – from 18V to 30V (U max)

Useful current – not more than 250 mA

Sizes, mm:

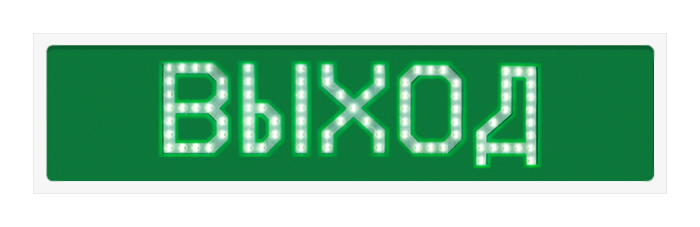

1х8 - 300х80х40

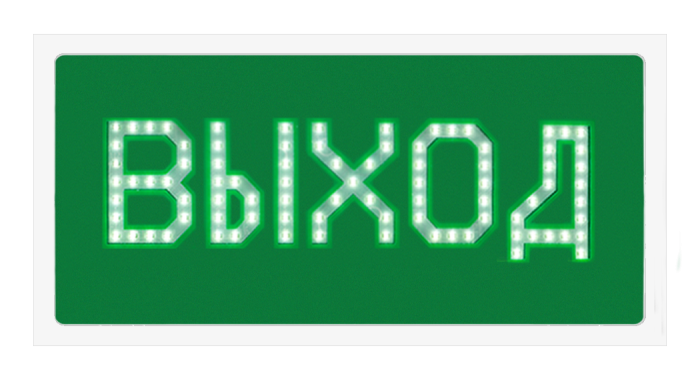

2х5 - 300х150х40

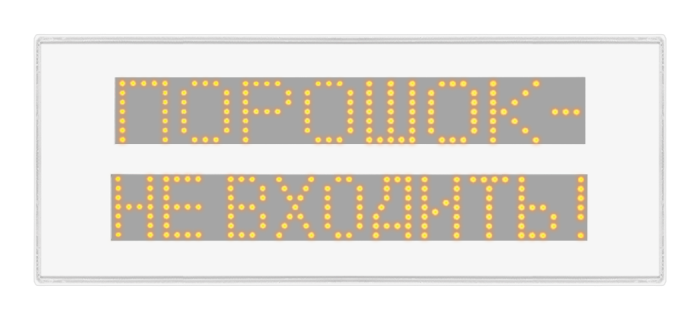

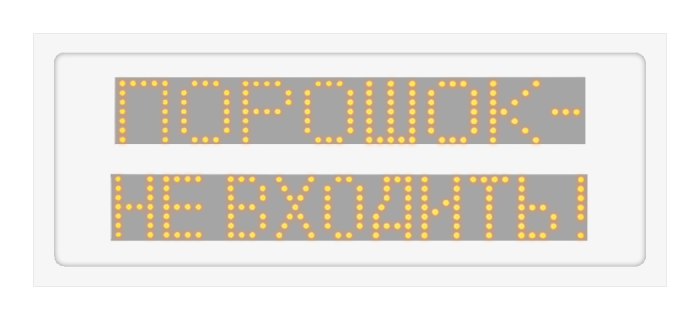

2х8 - 350х150х40

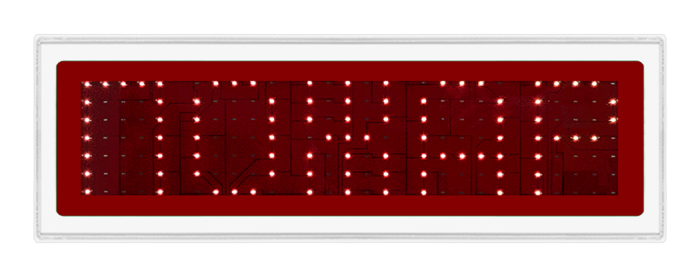

2х10 - 425х150х40

Connection diagram
