Datasheet. Fireproof and electrical junction boxes. ver 1.17.pdf Description

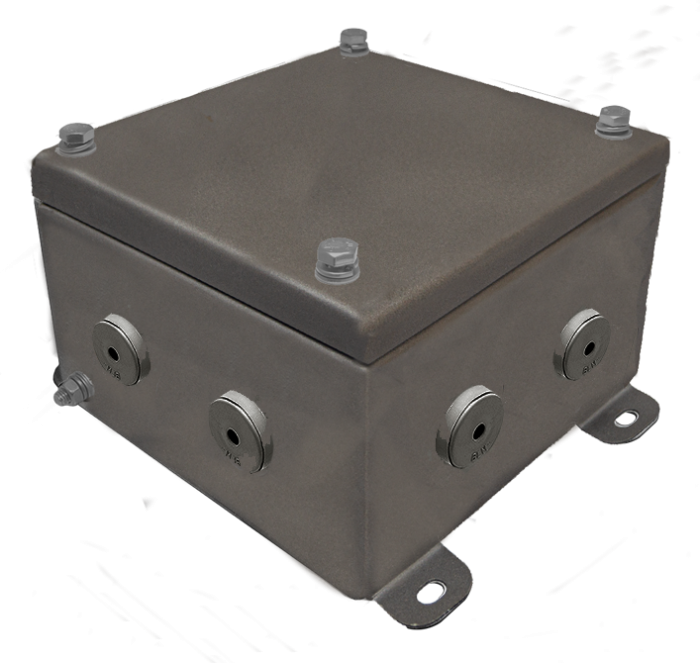

Electrical junction box KM-A-1515 IP66(R) is designed for installation of switching devices. It is used for installation outdoors and indoors, in residential, public and industrial buildings. Housing is made of stainless steel AISI 304 with thickness of 1.2 mm.
Design
Housing of the box is increased in height and has a square shape. The lid fits tightly to the housing due to the screws and silicone gasket. The box is equipped with a DIN rail on which switching devices are placed There are grounding clamps "PE" on the cover and on the body. There are cable glands made of rubber, providing protection degree of at least IP66.
Feature
Electrical junction boxes have an increased corrosion resistance at the expense of galvanic treatment and polymer coating. All external mounting elements are made of stainless steel.
Certification
The boxes are certified for compliance with the requirements of technical regulations: ТР ТС 004/2011 "About safety of low-voltage equipment".
Main technical specifications
- Protection degree IP66
- Temperature range: from - 40°С до +100°С
- Connected cable diameter: 4-18 mm.
- Climatic modification as per GOST 15150: EC 2,5.
- Nominal connecting capacity of terminals: М12(4-7), М16(5-9), М20(8-13), М25(11-17), М32(15-20).
- Quantity of cable glands: 8
- Length of the section on the DIN-rail to accommodate switching equipment: 95 mm
- Warranty service life of the box: 24 months from commissioning date.
