Fire-control unit “Gefest”

General and technical data

Fire control unit (PPU) “Gefest”

Today’s development level of technology demands new approaches to organization of maintaining of fire-protecting systems. Fire-control unit “Gefest” is a unique, multicomponent unit, which elements can be used as in a common complex, or independently. PPU modules “Gefest” are chosen in accordance with tasks of maintaining of fire protection of an exact object.

Unit is used together with series produced PPU or Automatic system of Control of Technological Process (ASC TP). It compensates the lack of functions for implementation of FZ-123 to organization of fire protection (e.g. control of presence and workability of light and sound detectors, 220V circuits, safety lighting, etc…) Excludes overflow functionality that takes place, when integrated units in fireproof automatic systems are used. Certificate.

Advantages of usage

Monitoring of normally turned on flame detectors “EXIT”
Monitoring of normally turned on sound and light flame detectors “FIRE”
Monitoring of connection lines with maintaining objects with the voltage 220V
Workability control of magnet starters
Short-circuit isolation in feed network 12-24V (quick-response electronic fuse)
Isolation of circuits with burned flame detectors during fire
Diagnostics of control relay

Main parts

Unit of connection and start control (Basic) UKLSiP (B)**
Commutation and diagnostics unit UK-D*

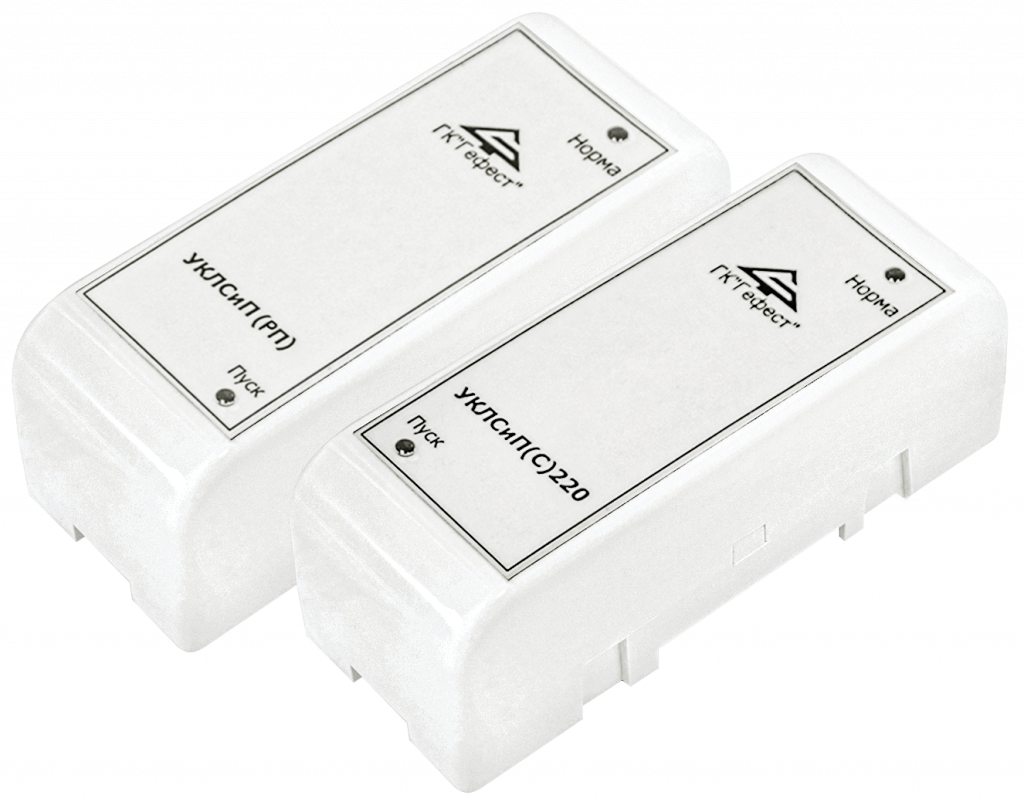

Unit of connection and start control (relay-precision) UKLSiP (RP)**
Unit of connection and start control (networking) UKLSiP (S)**
Connection and start control unit (networking for reactive load) UKLSiP (SR)**

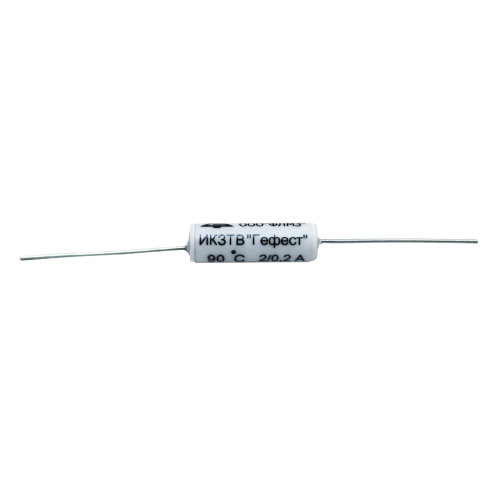

Short-circuit isolator of feeding circuits IKZ CP**
Remote noise suppression unit UV-P**

*-Units are used only within PPU “Gefest”

**-Units are used within PPU “Gefest”, and also independently

Commutation and diagnostics unit UK-D

UK-D is used only together with UKLSiP (B), in dependence of implementation options provide:

Control objects commutation
Conditional diagnostics of winding of control relay
Control of contact closure
Control of sound and light flame detectors workability

UK-D (01), UK-D (02), UK-D (03) work as intellectual relay, allowing diagnosing feed-tension availability on implementation units (including 220V), block violation, etc…

UK-D (04) implements the control function of connection lines workability and workability of permanently turned on light flame detectors “Exit”.

UK-D (05) control connection lines, workability of light and sound flame detectors activated by signal “Fire”. Provide the possibility to form implementation units activation delay.

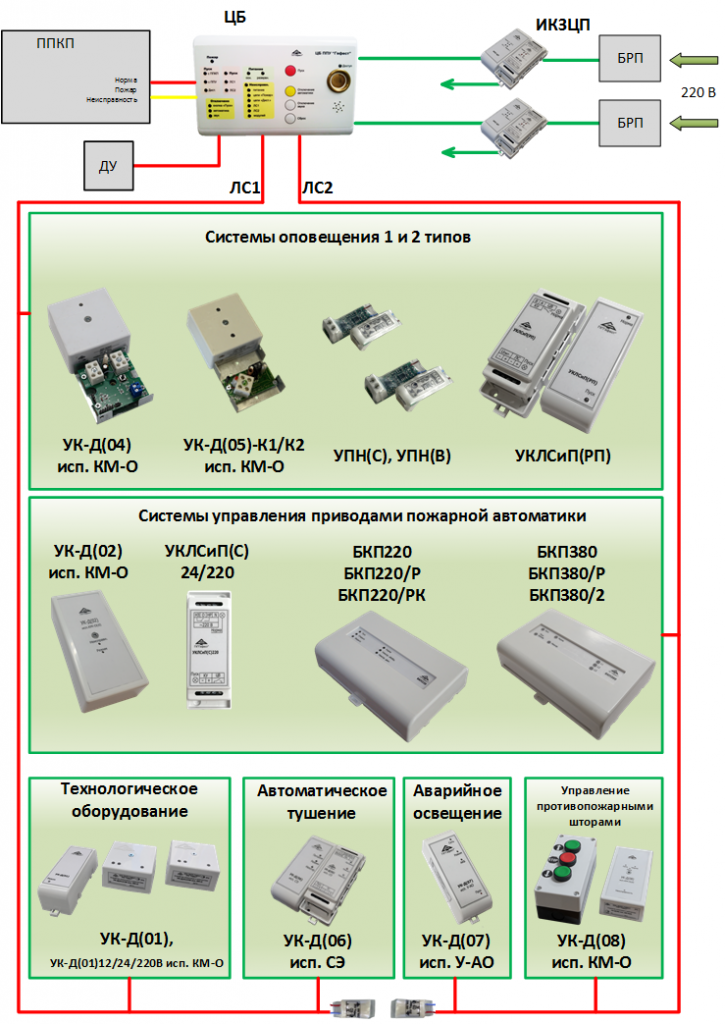

Example of connection of PPU "Gefest" components

Fire Control Unit PPU “Gefest” is awarded with diploma and medal of the contest “Safety Etalon”. Production won in the nomination of “Alarming systems and signal-sound equipment”. October 2010.
