Cable line

Taking into account the changes came in force on 10.07.2012 to #123-FL "Technical regulations of fire safety requirements" in section 82 cl. 2 the demands to the fire-protection connection lines resistance during a fire became stricter. Now, besides the corresponded demands to cables and wires of FPS (fire-protection system) there are similar demands to cable lines in general (besides cables and wires, cable lines include elements of anchoring, commutation and laying of connection lines.)

Considering new demands we certificated "Cable line that includes:

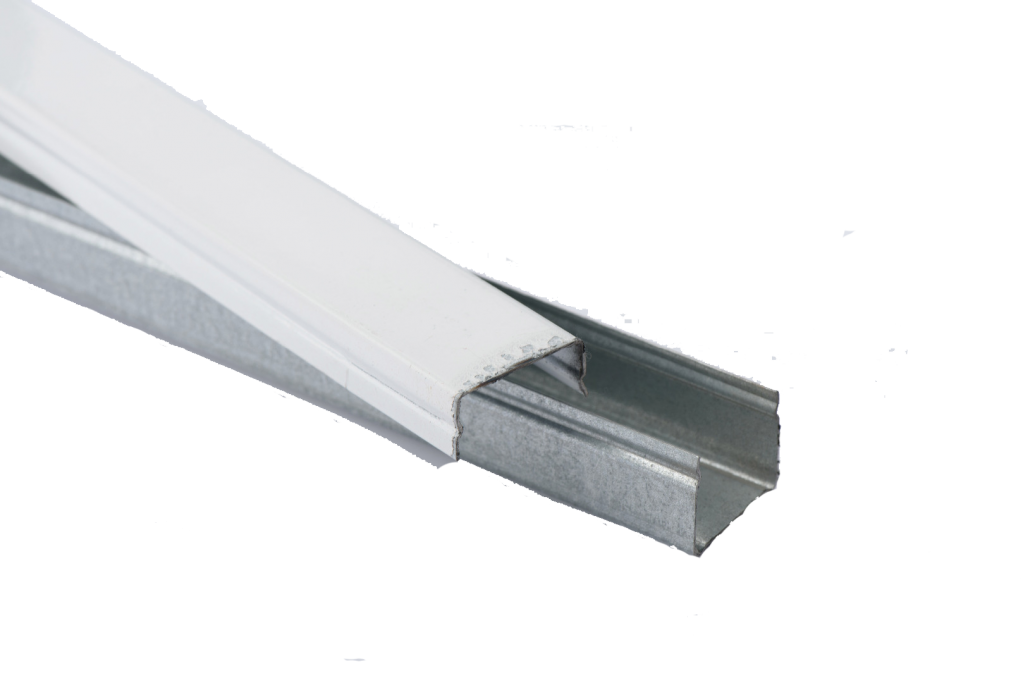

Galvanized metal cable-duct

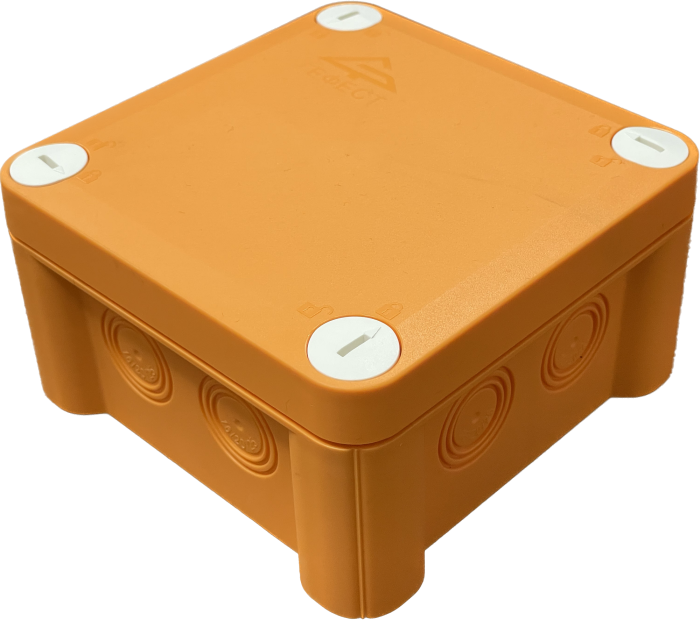

Fireproof junction boxes

Cable line fittings

CABLE LINE FOR AN OPEN CABLE LAYING

• Saves workability during fire for 60 minutes;

• Easy and quick laying type;

• Laying along the basis tape is possible;

•All connections and branches should be made in fireproof boxes KM-O only with ceramical terminal blocks

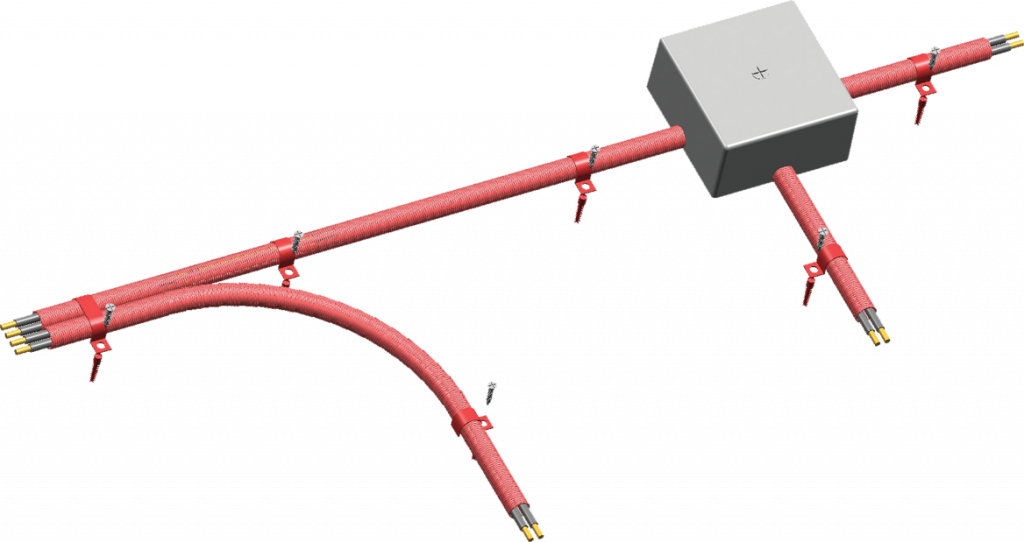

Open laying example

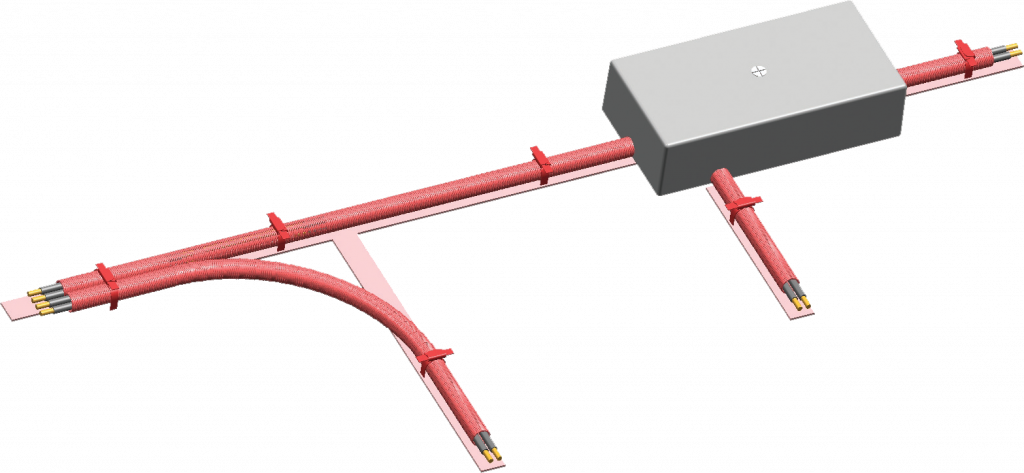

Laying along a basis tape example

CABLE LINE LAYING IN A METAL HOSE

• Saves workability during fire for 120 minutes;

• Reliable and soft fixation of a fireproof cable excludes a possibility of a cirquit discontinuity and improves realiability of the system;

• Laying along the basis tape is possible;

•All connections and branches should be made in fireproof boxes KM-O only with ceramical terminal blocks

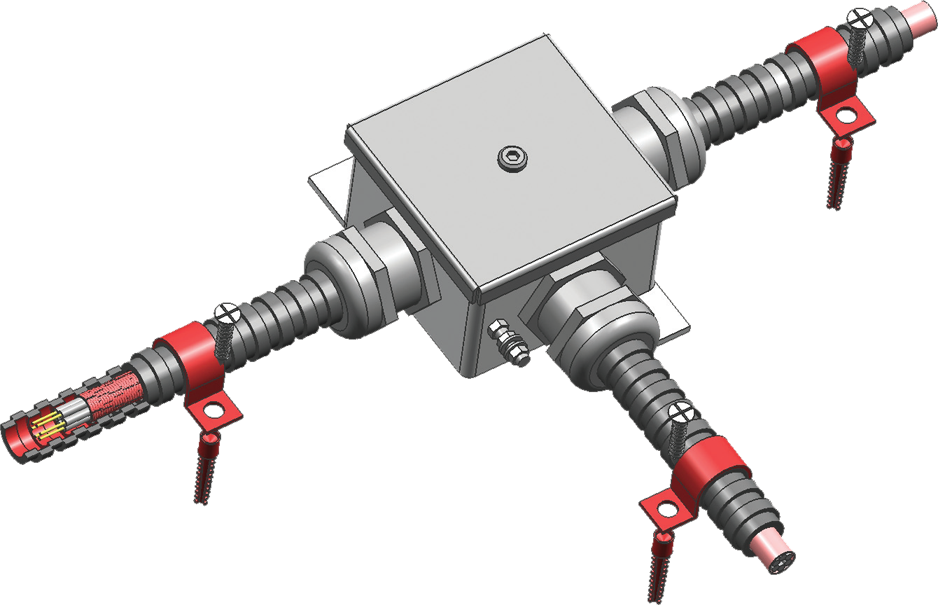

Metal hose laying example

CABLE LINE FOR CABLE LAYING IN A GALVANIZED CABLE-DUCT

• Saves workability during fire for 120 minutes;

• Reliable and soft fixation of a fireproof cable excludes a possibility of a cirquit discontinuity and improves realiability of the system;

• The cable is roomily laid in the inner metal surface, there is no local mechanical impact on the cable surfacfe;

• Laying along the basis tape is possible;

• All connections and branches should be made in fireproof boxes KM-O only with ceramical terminal blocks

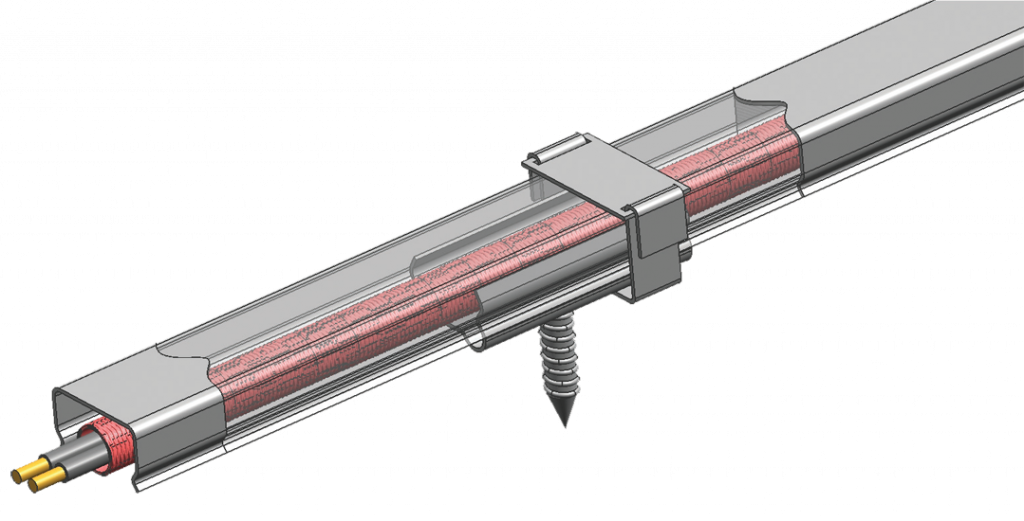

Example of cable laying in a cable-duct KKMO. The cable is layed inside of the cable-duct without using of extra fixation

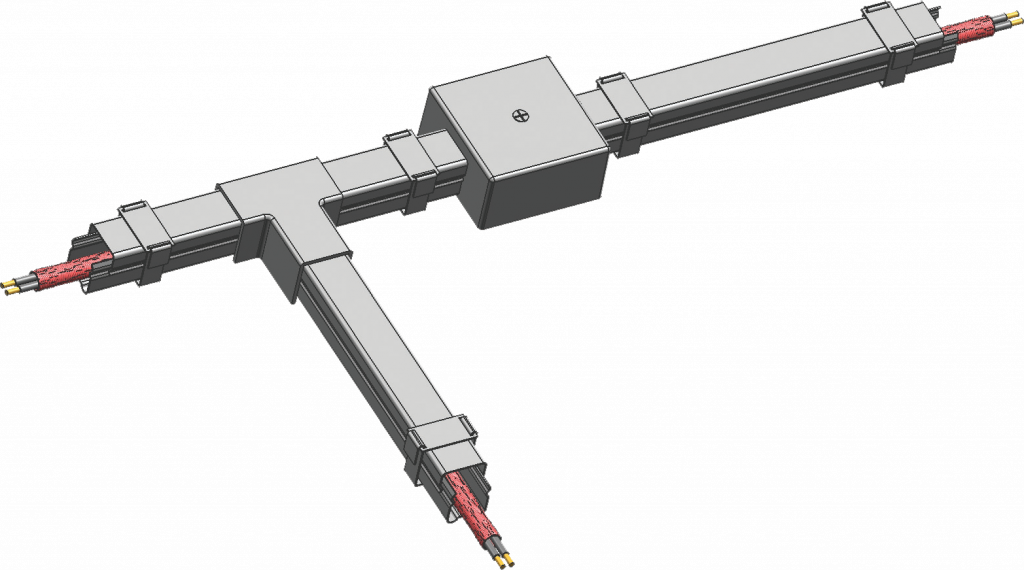

Example of usage of half-galvanized cable-duct KKMO
