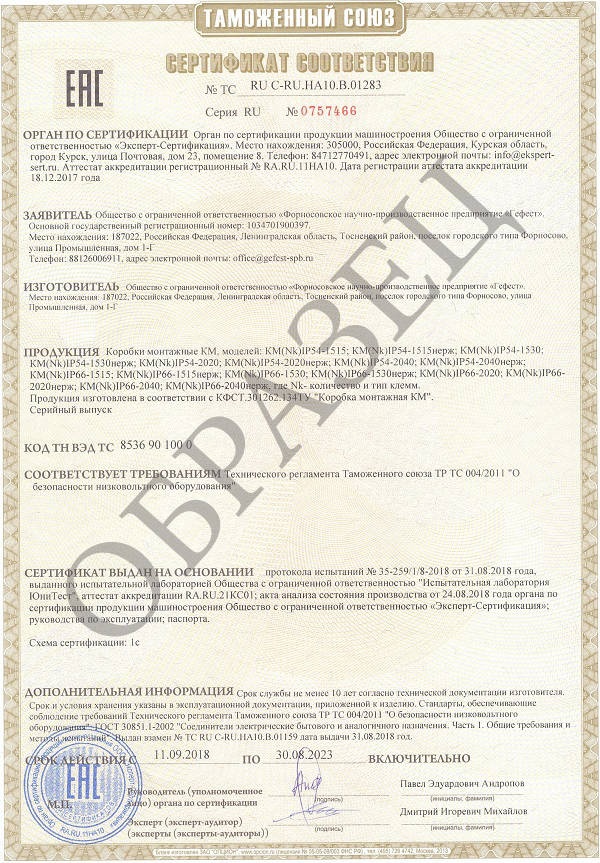

Certificate TR EAEU Junction boxes.jpg
Datasheet. Fireproof and electrical junction boxes. ver 1.17.pdf Description

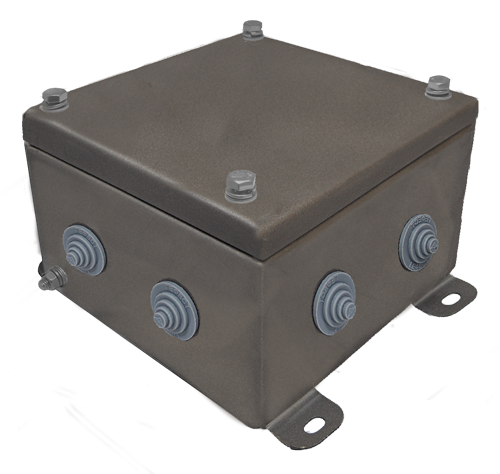

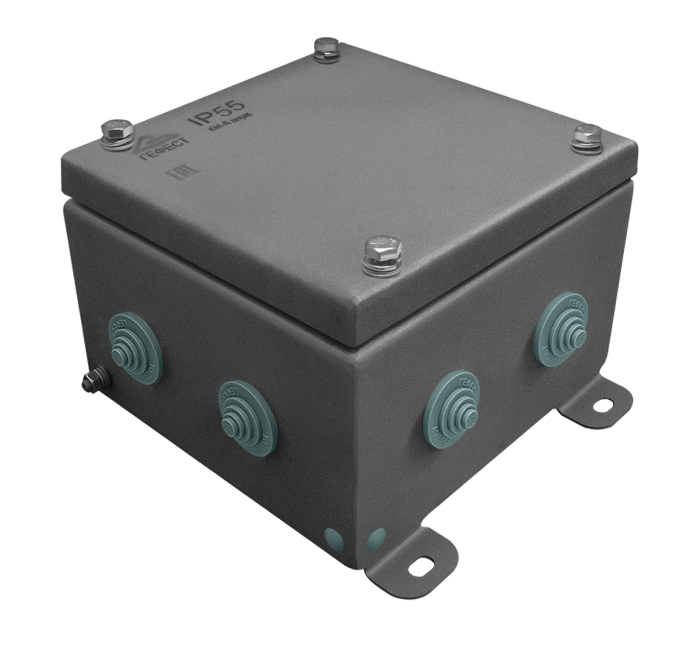

Electrical junction box KM-A-1515 IP55 is designed for installation of switching devices. It is used for installation outdoors and indoors, in residential, public and industrial buildings.
Design
Housing is made of stainless steel sheet AISI 304 with thickness of 1.2 mm.
Housing of the box is increased in height and has a square shape. The lid fits tightly to the housing due to the screws and silicone gasket. The box is equipped with a DIN rail on which switching devices are placed There are grounding clamps "PE" on the cover and on the body. Side walls are equipped with stepped silicone membrane-type bushings, providing a protection degree not less than IP55.
Feature
Electrical junction boxes have an increased corrosion resistance at the expense of galvanic treatment and polymer coating. All external mounting elements are made of stainless steel.
Certification
The boxes are certified for compliance with the requirements of technical regulations: ТР ТС 004/2011 "About safety of low-voltage equipment".
Main technical specifications
- Protection degree IP66
- Temperature range: from - 40°С до +100°С
- Connected cable diameter: 4-18 mm.
- Climatic modification as per GOST 15150: EC 1.
- Quantity of cable glands: 8
- Length of the section on the DIN-rail to accommodate switching equipment: 95 mm
- Warranty service life of the box: 24 months from commissioning date.
