Modification designation |
Size* mm |
Q-ty of glands, up to |
КМ-А-1515 IP55 from stainless steel |
150x150x100 |
8 |
* without fitting elements and cable glands
Description

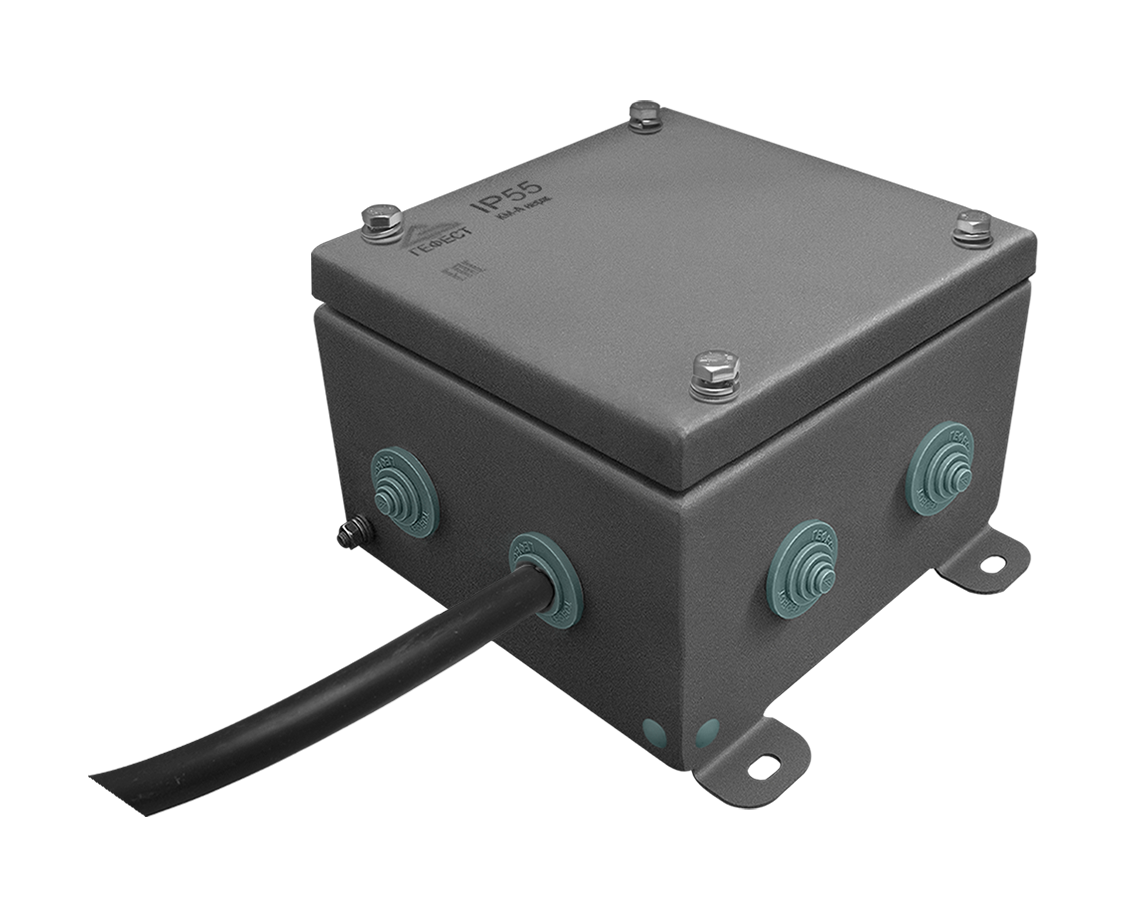

Electrical junction box KM-A-1515 IP55 from stainless steel is designed for installation of switching devices. It is used for installation outdoors and indoors, in residential, public and industrial buildings. The body is made of stainless steel sheet 1.2 mm thick.

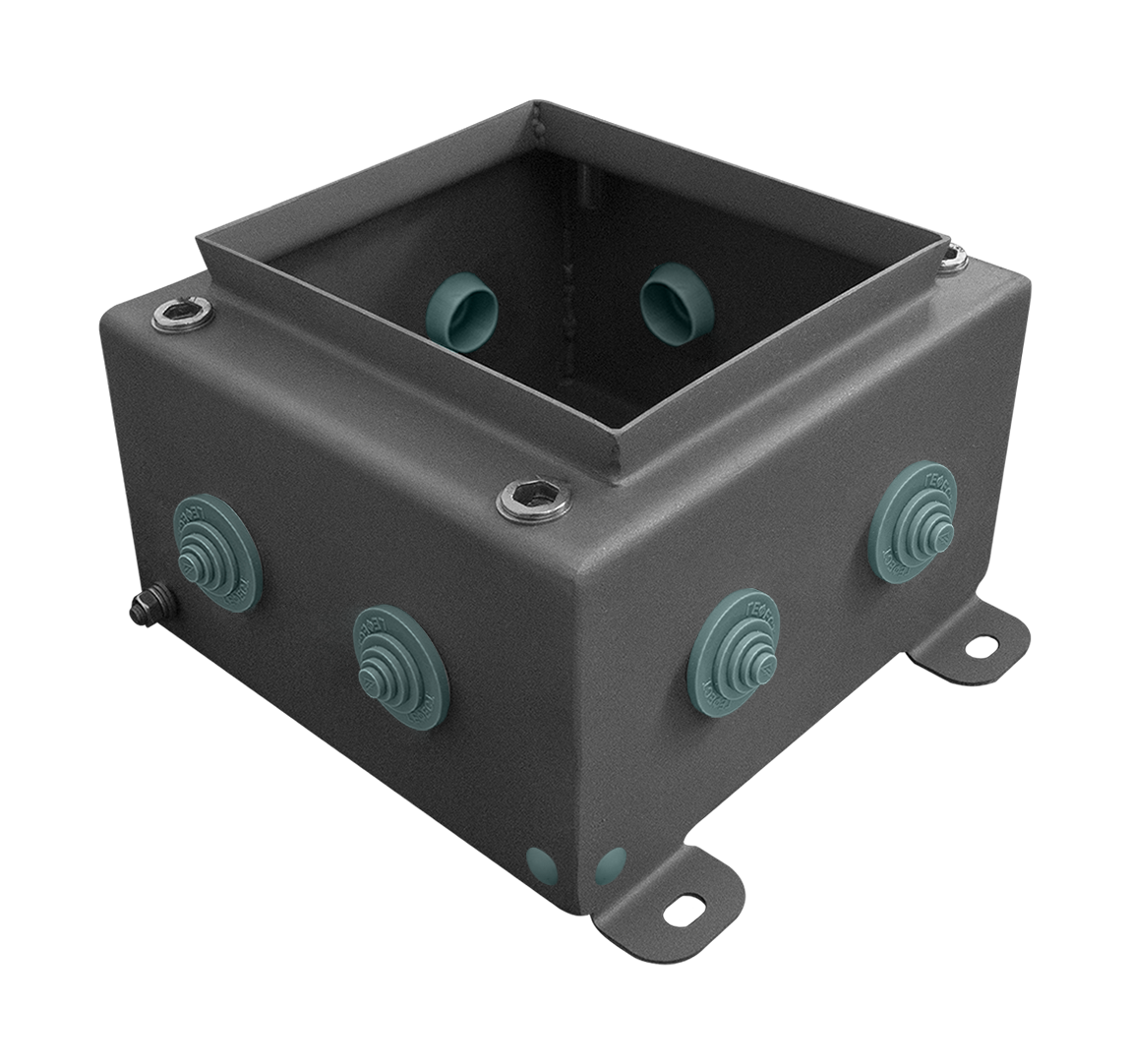

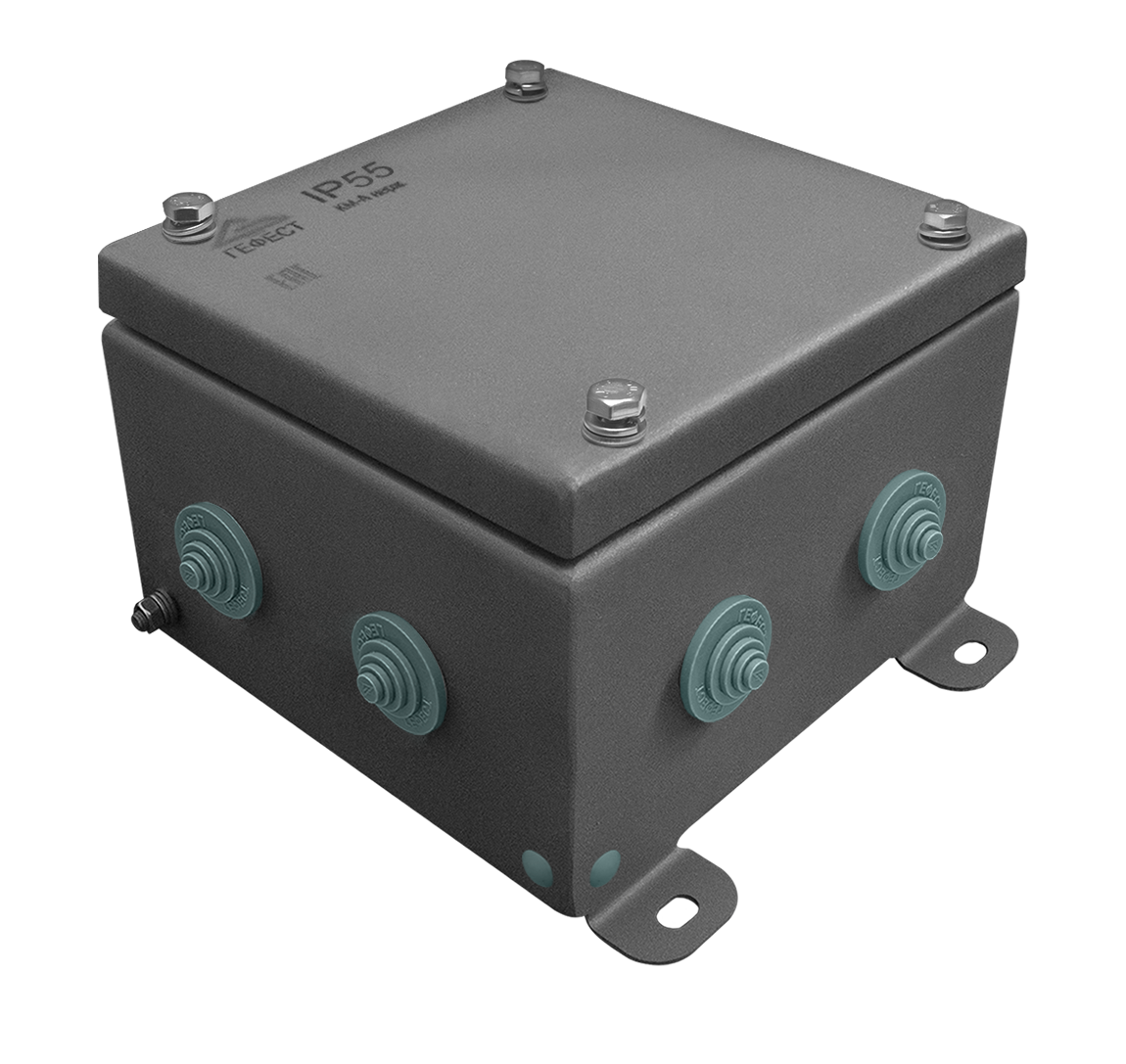

Housing of the box is increased in height and has a square shape. The lid fits tightly to the housing due to the screws and silicone gasket.

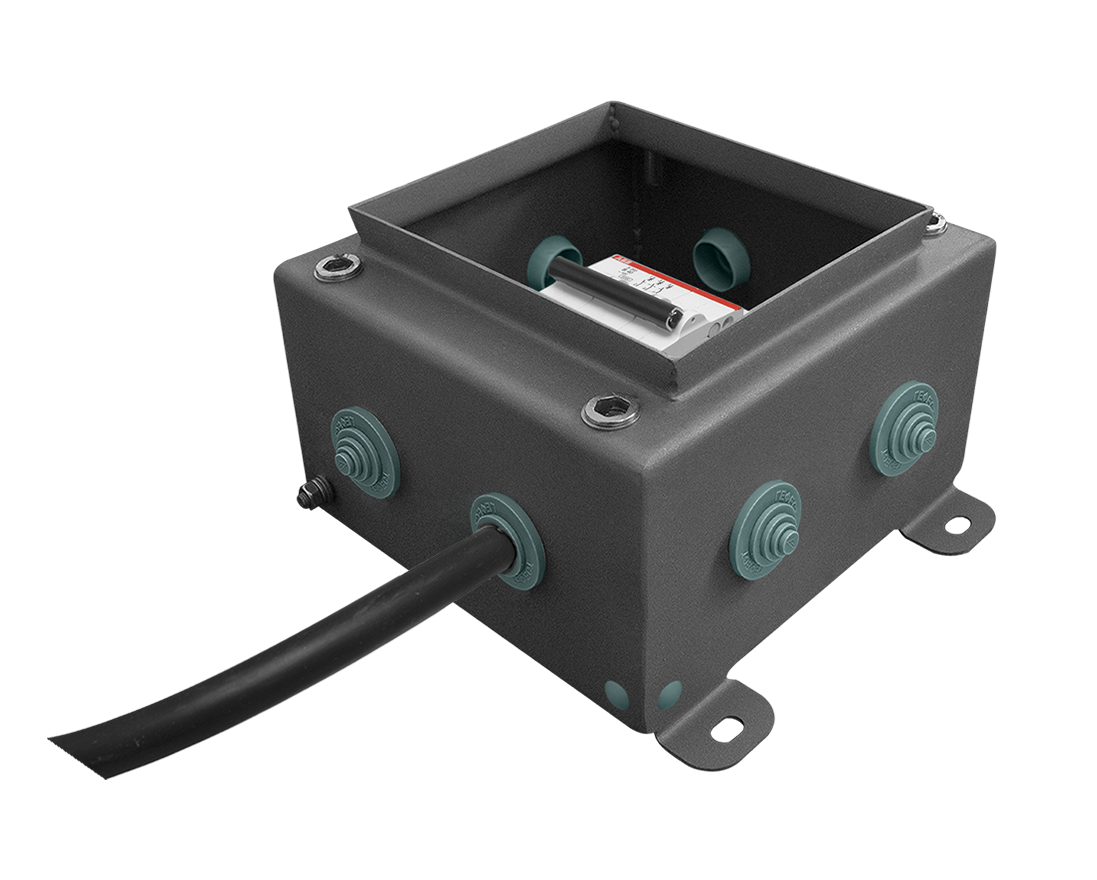

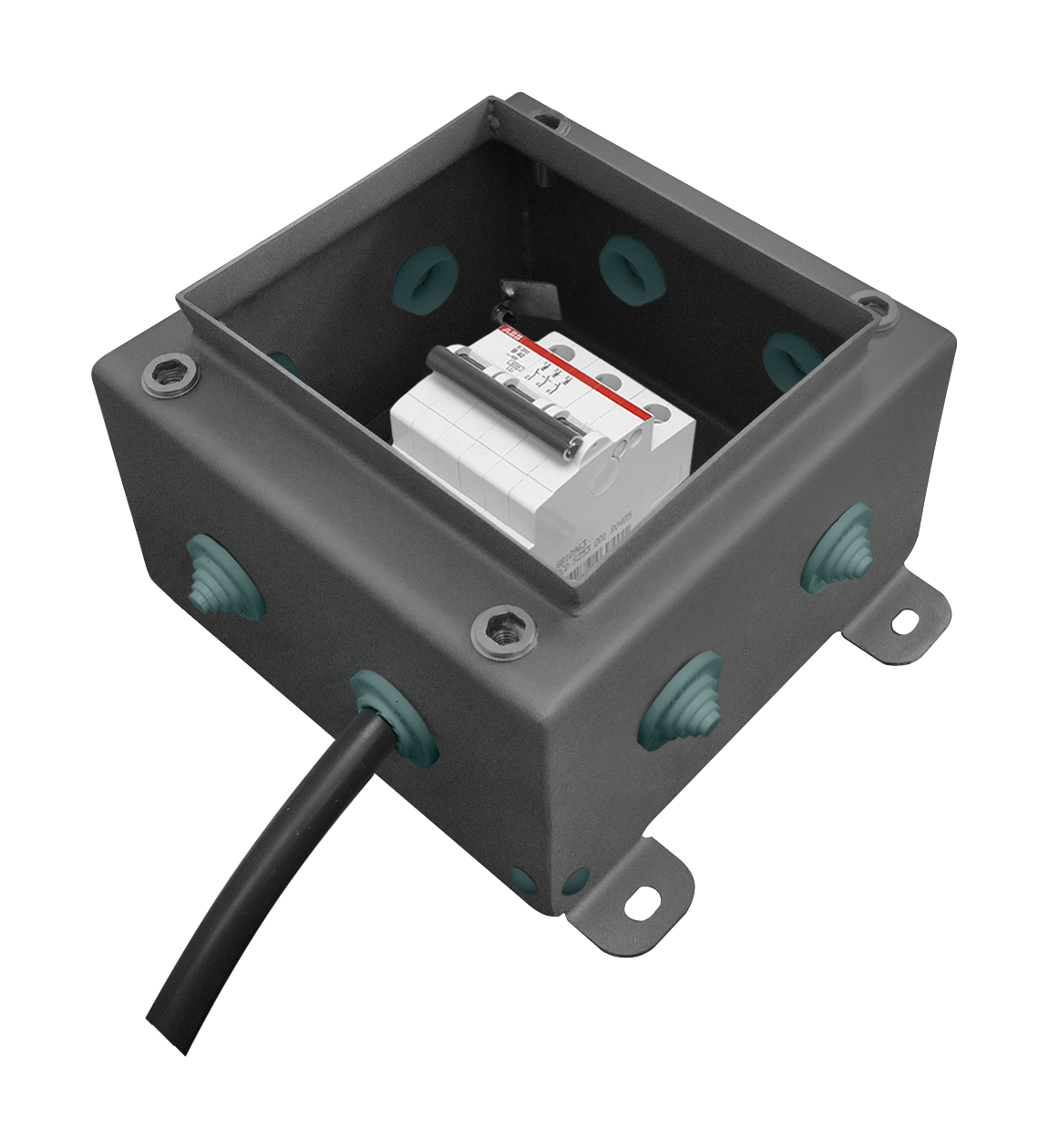

The box is equipped with a DIN rail on which switching devices are placed There are grounding clamps "PE" on the cover and on the body. Side walls are equipped with stepped silicone membrane-type bushings, providing a protection degree not less than IP55. All external mounting elements are made of stainless steel.
Certification
The boxes are certified for compliance with the requirements of technical regulations: ТР ТС 004/2011 "About safety of low-voltage equipment".
Main technical specifications
- Protection degree IP55
- Temperature range: from - 40°С до +100°С
- Connected cable diameter: 4-18 mm.
- Climatic modification as per GOST 15150: ЕC1.
- Quantity of cable glands: 8
- Length of the section on the DIN-rail to accommodate switching equipment: 95 mm
- Warranty service life of the box: 24 months from commissioning date.

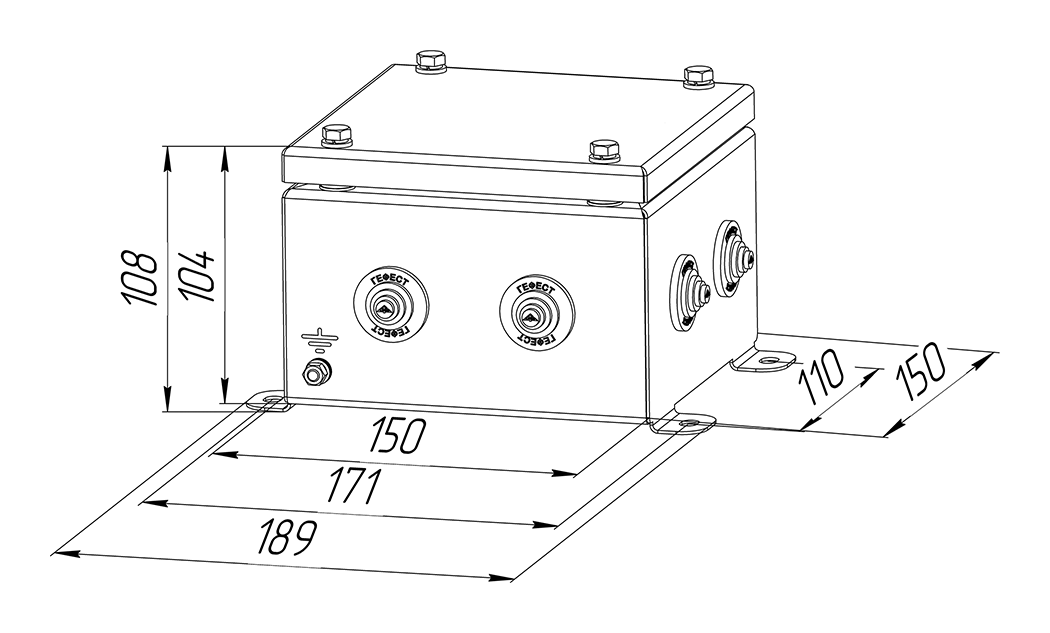

Designation | КМ-А-1515 IP55 from stainless steel |
Dimensions | 150х150х100 mm |
Max. section of the clamped wires, sq. mm | 4-18 |
Number of inputs, up to | 8 |
Sheath protection degree | IP55 |
Temperature regime | from -40ºС tо +100ºС |
Weight | 1,3 kg |
