Electrical junction boxes IP66 from stainless steel

General and technical data

Junction boxes KM-IP66 are designed for connection and branching of cable lines. Used for mounting indoors and outdoors under a canopy.

The body is made of stainless steel sheet AISI 304 1.2 mm thick. Junction box Sever body has a rectangular or square shape.

Elements of connections and fittings have galvanic anti-corrosion cover. Density of contact between the cap and the body is implemented via a silicon pad.

On the cover and on the housing there are grounding clamps "PE". The side walls are equipped with stainless steel cable glands providing the protection degree not less than IP66.

Inside the body of the box there is a steel galvanized DIN rail.

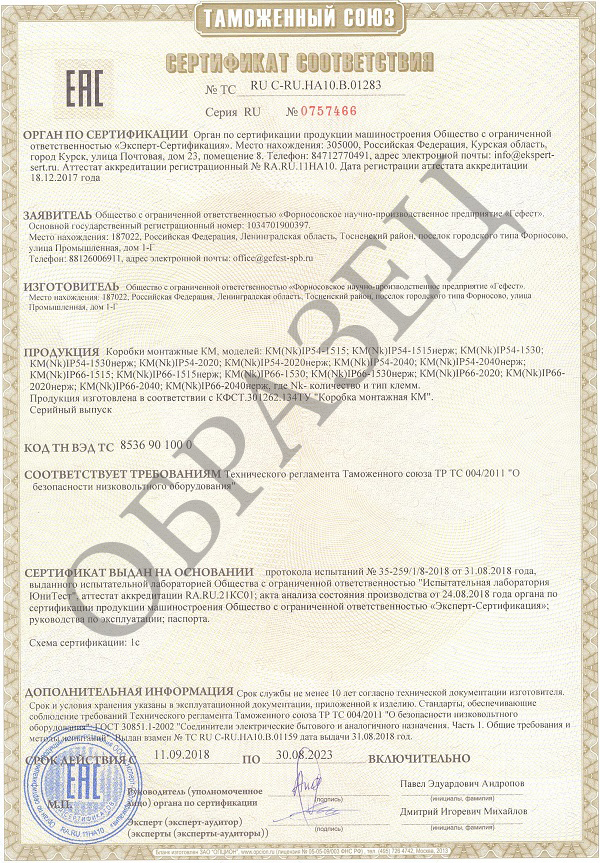

The boxes are certified for compliance with the requirements of technical regulations: ТР ТС 004/2011 "About safety of low-voltage equipment".

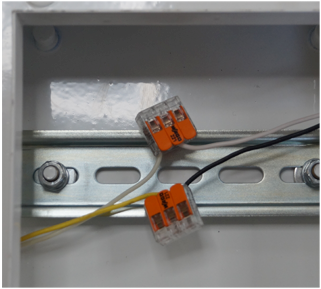

DIN rail profile	Example of installation of terminal blocks on the DIN rail	Example of high angle installation of terminal blocks

Main technical specifications

Protection degree IP66
Climatic modification as per GOST 15150: EC 1, EC 5, MU 1, MU 5.
Temperature range: from -40ºС to +100ºС.
The diameter of the connected cable for standard cable glands M16, M20, M25: 4-18 mm.

Modification

Modification designation	Size**, mm	Q-ty of inputs, up to

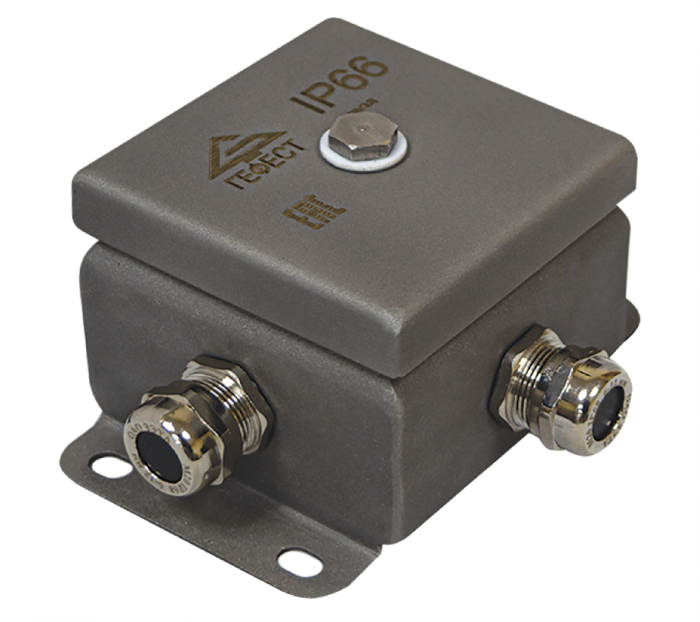

KM-IP66-0808 Stainless steel	80x80x62	4

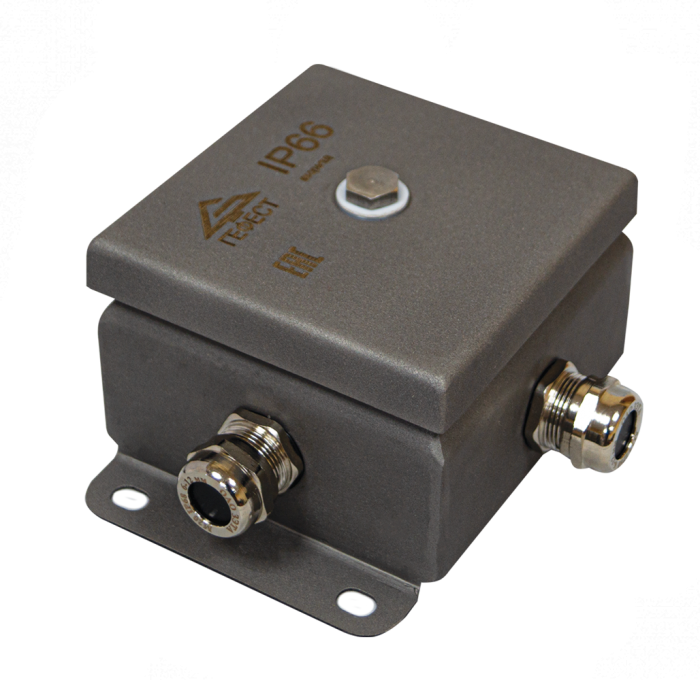

KM-IP66-1010 Stainless steel	100x100x62	4

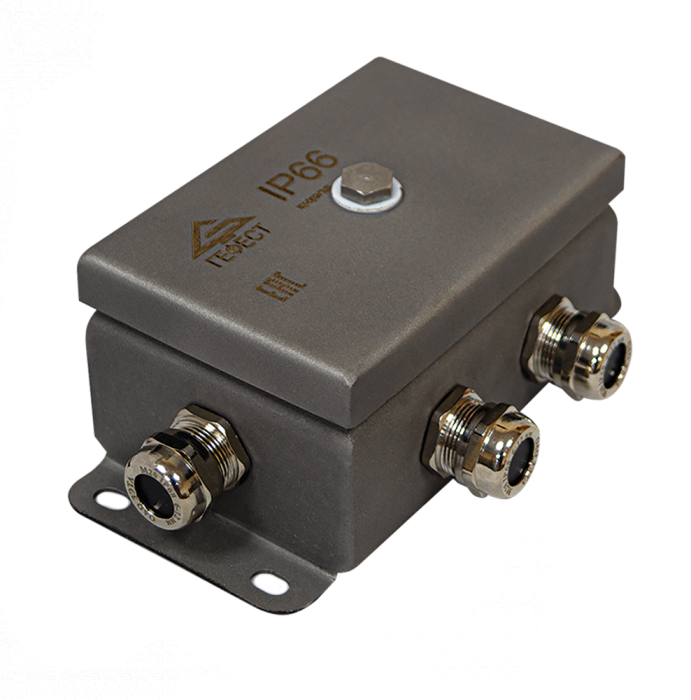

KM-IP66-0812 Stainless steel	80x100x62	6

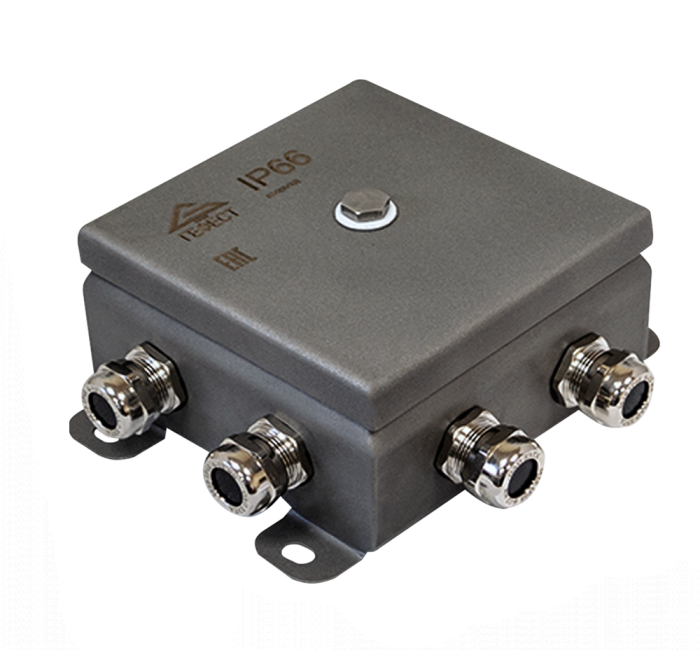

KM-IP66-1212 Stainless steel	120x120x62	8

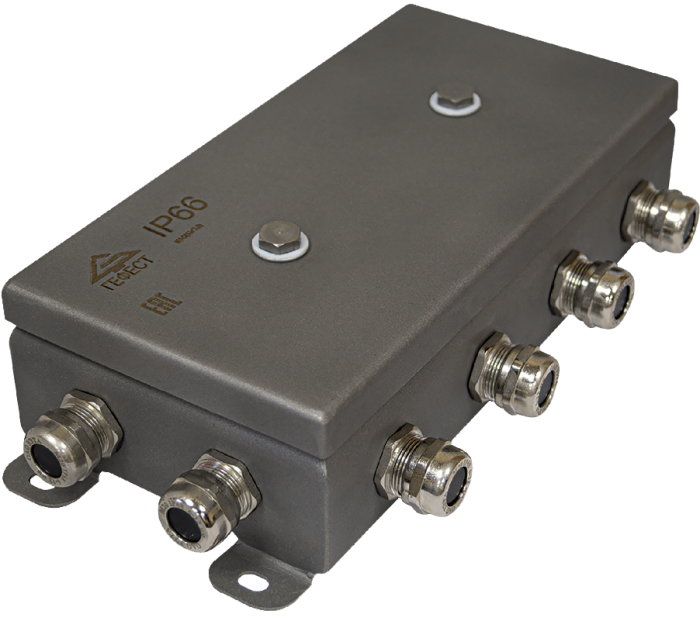

KM-IP66-1224 Stainless steel	120x240x62	12

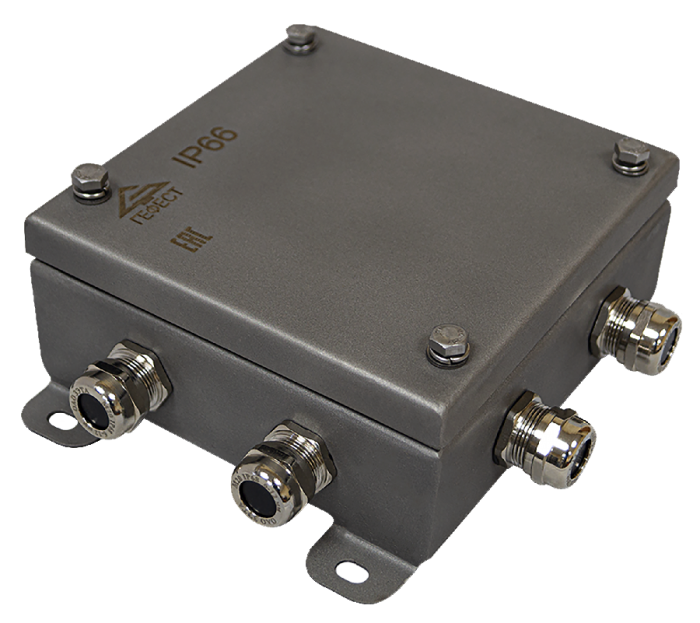

KM-IP66-1515 Stainless steel	150х150х62	8

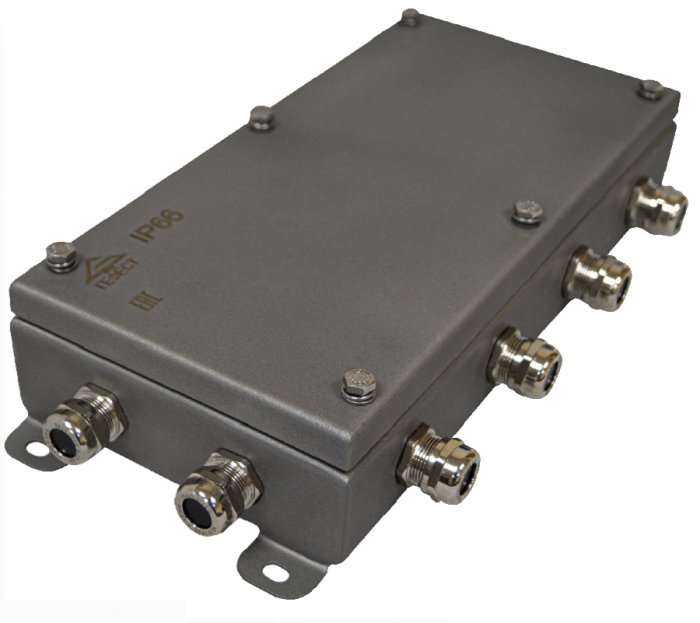

KM-IP66-1530 Stainless steel	150х300х62	12

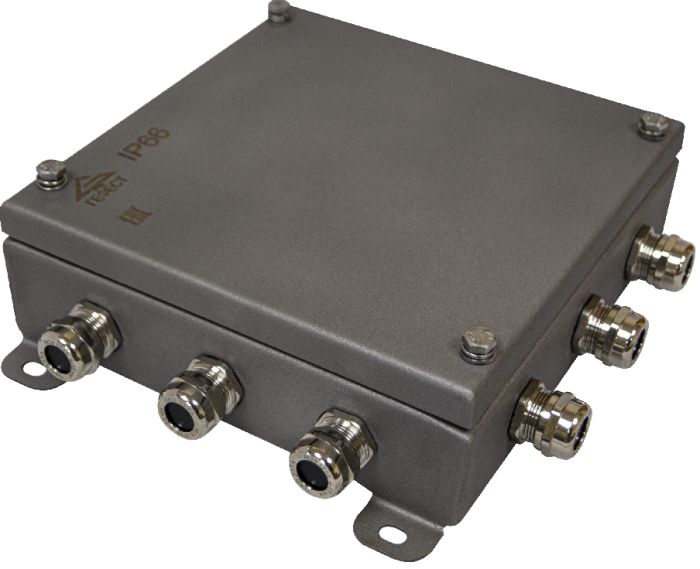

KM-IP66-2020 Stainless steel	200х200х62	12

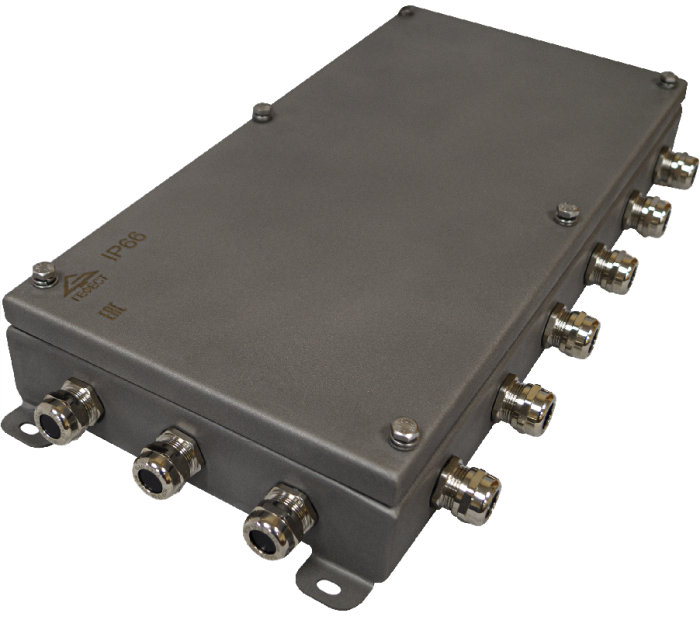

KM-IP66-2040 Stainless steel	200х400х62	20

Cable glands of other diameter can be installed on customer’s demands if technological capability of such installation is available. In this case, possible quantity of cable glands can differ from values mentioned in the table.

** Without regard to hangers and inputs

Designation of junction boxes during the order

KM-IP66-х stainless steel where:

KM – denomination;

IP66- degree of protection;

х - designation of size of a junction box: «1515»; «1530»; «2020»; «2040»

stainless steel - body material

Types of cable glands used for connection of the cable laid in a metal hose, corrugated stainless pipe, pipe for water and gas below shall be specified during the order.

Types and manufacturers of cable glands can be changed at the discretion of the manufacturer keeping all the basic properties.

Available sizes and materials of cable glands for KM IP66

It is possible to make non-standard cable glands on the customer’s demand.

Possible maximum and minimum diameters of cable armor:

- from 3 mm to 6,5 mm

- from 4 mm to 8 mm

- from 6 mm to 12 mm (standard shipment)

- from 10 mm to 14 mm

- from 8 mm to 16 mm

- from 13 mm to 18 mm

Cable glands can be manufactured from brass with covered with or from stainless steel.

Designation of placement of cable glands
