Modification designation |
Sizes*, mm |
Q-ty of inputs, up to |
KM-IP66-1224 Stainless steel | 123х240х62 | 12 |
* without fitting elements and cable glands

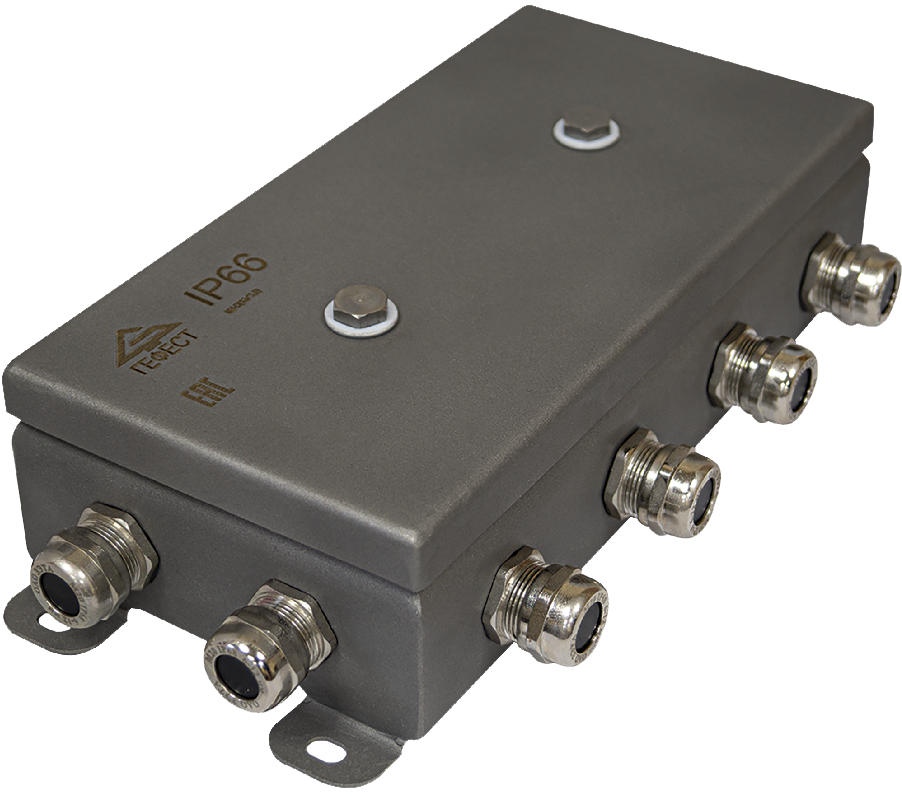

Junction boxes KM-IP66 are designed for connection and branching of cable lines. Used for mounting indoors and outdoors under a canopy.
The body is made of stainless steel sheet AISI 304 1.2 mm thick. Junction box body has a rectangular or square shape.
Elements of connections and fittings have galvanic anti-corrosion cover. Density of contact between the cap and the body is implemented via a silicon pad.
On the cover and on the housing there are grounding clamps "PE". The side walls are equipped with stainless steel cable glands providing the protection degree not less than IP66.
Inside the body of the box there is a steel galvanized DIN rail.
The boxes are certified for compliance with the requirements of technical regulations: ТР ТС 004/2011 "About safety of low-voltage equipment".
Main technical specifications
- Protection degree IP66
- Climatic modification as per GOST 15150: EC 1, EC 5, MU 1, MU 5.
- Temperature range: from -40ºС to +100ºС.
- The diameter of the connected cable for standard cable glands M16, M20, M25: 4-18 mm.

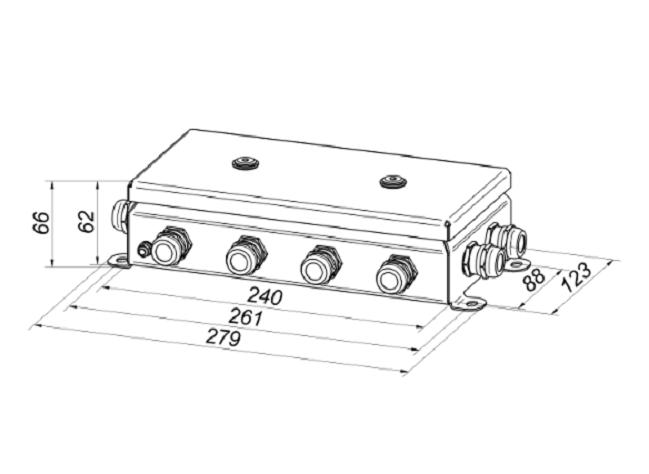

Designation of placement of cable glands
Designation | КМ-IP66-1224 Stainless steel |
Dimensions | 123х240х62 mm |
Number of inputs, up to | 12 |
Sheath protection degree | IP66 |
Temperature regime | from -40ºС tо +100ºС |
Weight | 1,65 kg |
