Electrical junction boxes IP66(R)

Electrical junction boxes IP66(R) are designed to connect and branch wiring for various purposes.

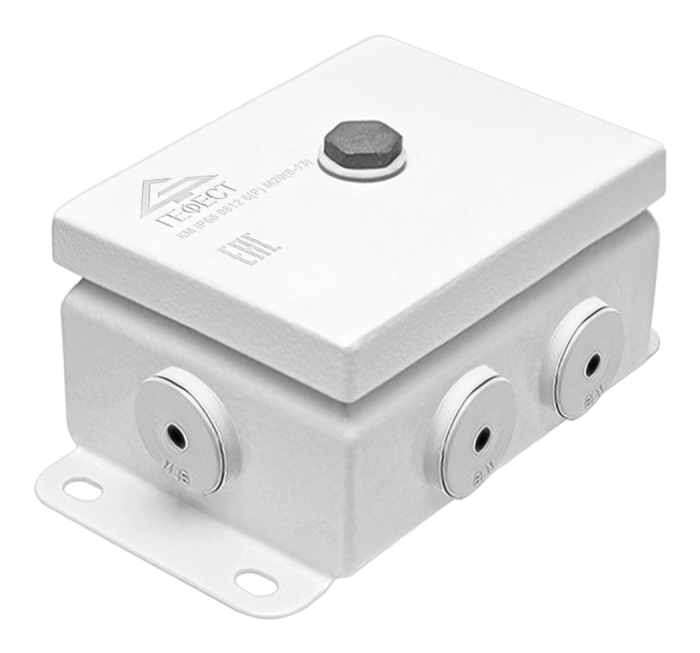

Electrical junction boxes IP66(R) have rubber cable glands. They are used for installation indoors and outdoors under a roof. Enclosure is made of structural steel sheet St3 with thickness of 1.2 mm, protective galvanized coating and painted with polymer paint in white color RAL 9016.

Design

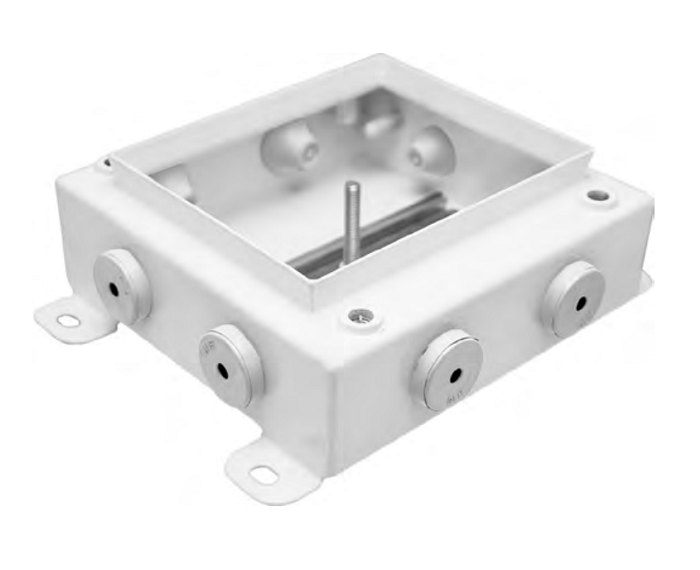

The body of the box is rectangular or square in shape. The lid fits hermetically to the body by the connection with screws and sealing silicone gasket. The boxes are equipped with a DIN rail for fixing the terminals. There are grounding clamps "PE" on the cover and on the body.

There are cable glands made of rubber, providing protection degree of at least IP66.

Electrical junction boxes have an increased corrosion resistance at the expense of galvanic treatment and polymer coating. All external mounting elements are made of stainless steel. Cable entries are made of rubber and provide quick and reliable access for the cable inside the box.

Certification

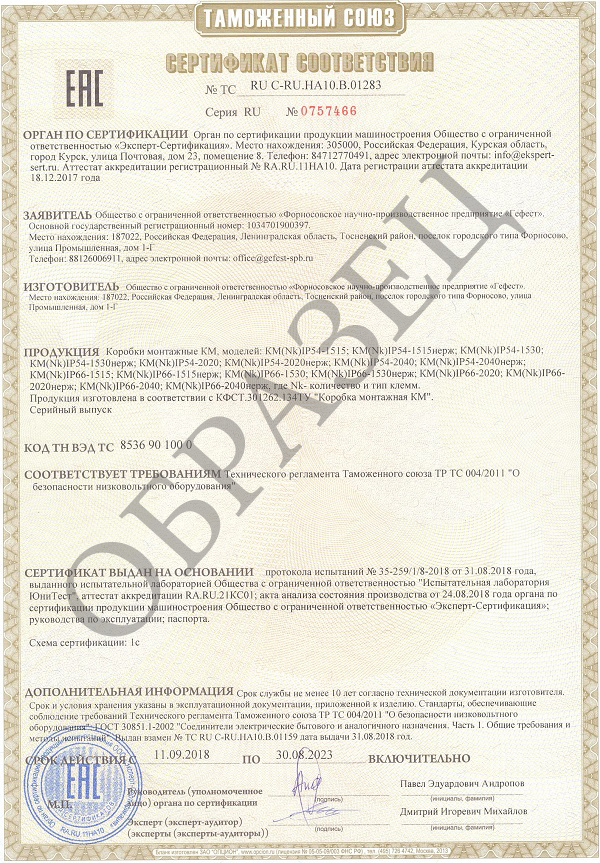

The boxes are certified for compliance with the requirements of technical regulations: ТR CU 004/2011 "About safety of low-voltage equipment".

Main technical specifications

• Protection degree IP66
• Temperature range: from  - 40°С до +100°С

• Climatic modification as per GOST 15150: EC 1.
• Nominal connecting capacity of terminals: М12(4-7), М16(5-9), М20(8-13), М25(11-17), М32(15-20).

•


  Корпус	Desifnation	Sizes*, mm*	Number of inputs, up to

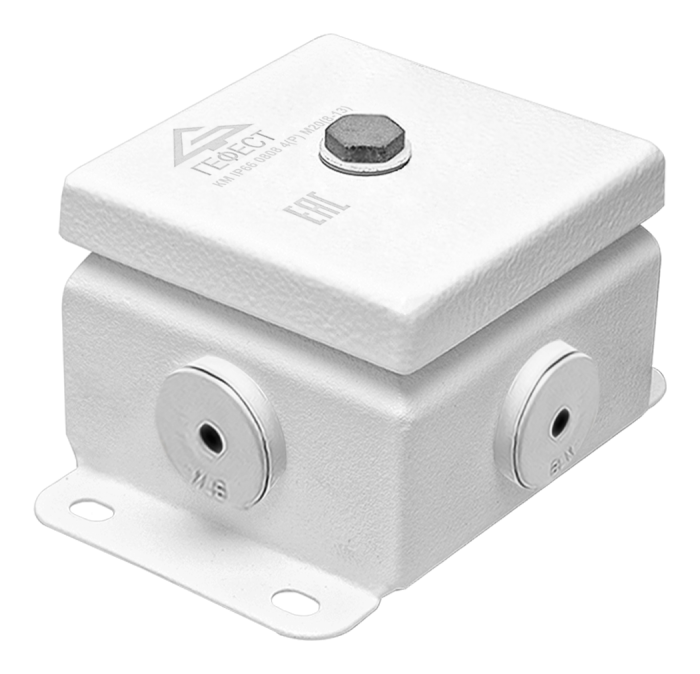

  	КМ IP66(Р) 0808	86х86х66	4
  	КМ IP66(Р) 0812	86х126х66	6

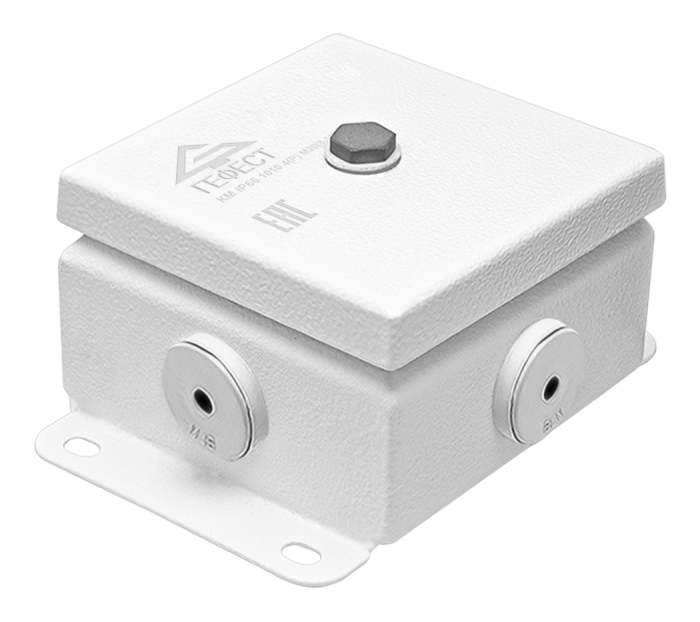

  	КМ IP66(Р) 1010	103х103х66	4

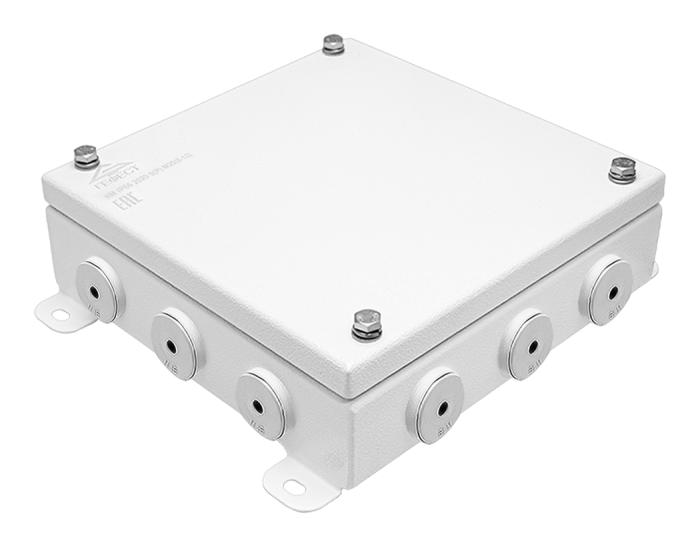

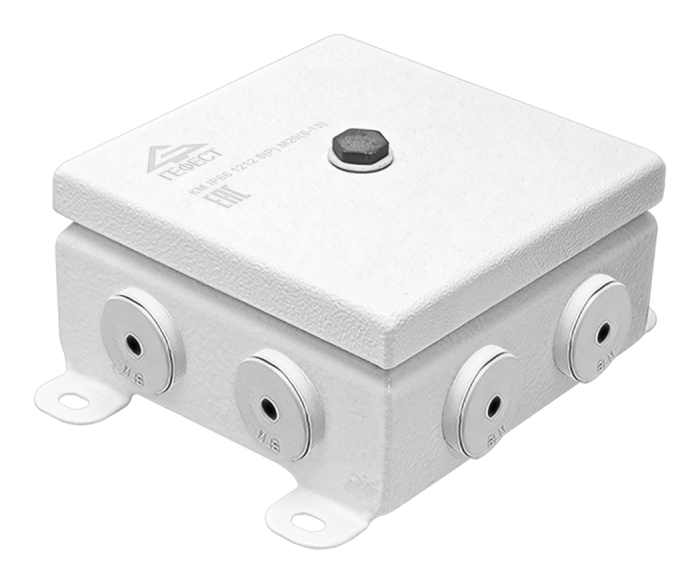

  	КМ IP66(Р) 1212	123х123х66	8

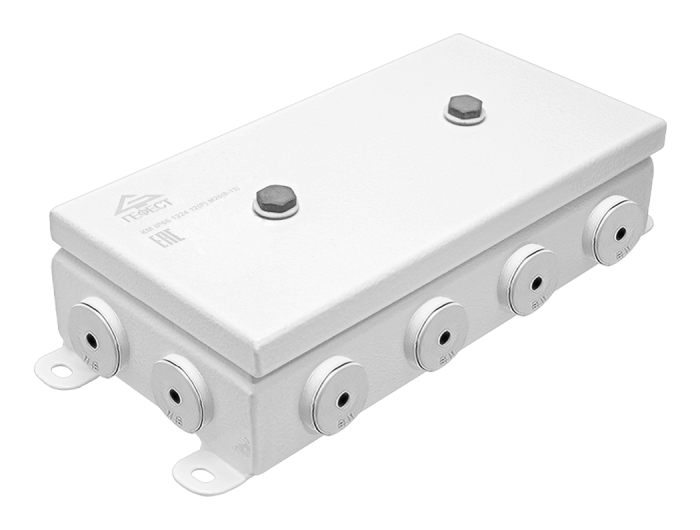

  	КМ IP66(Р)1224	123х240х62	12

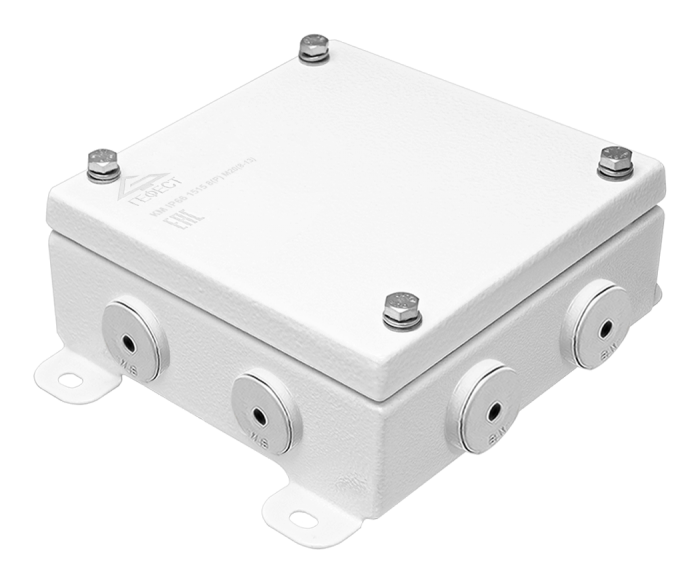

  	КМ IP66(Р) 1515	150х150х66	8

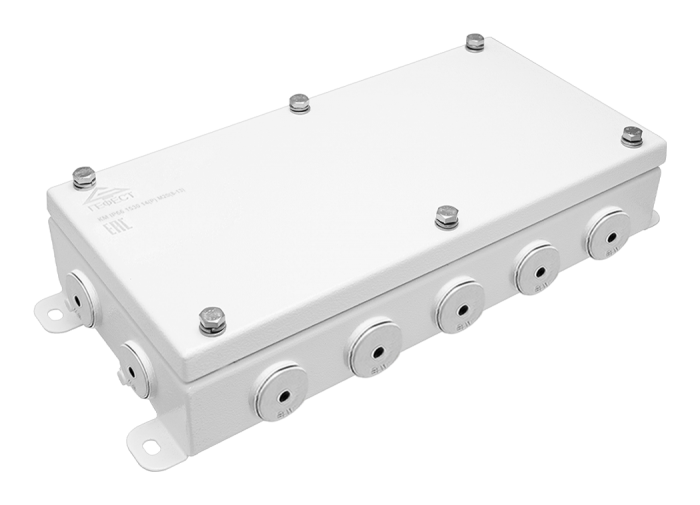

  	КМ IP66(Р) 1530	150х300х66	14
  	КМ IP66(Р) 2020	200х200х66	12

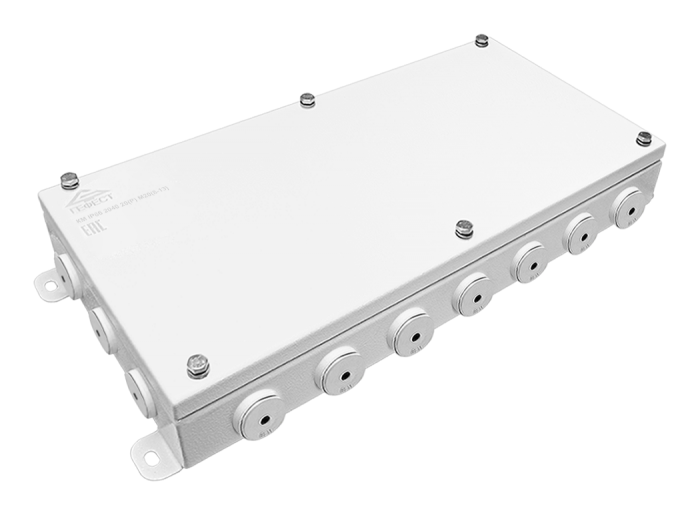

  	КМ IP66(Р) 2040	200х400х66	20

  * Without regard to hangers and inputs
