Fireproof junction boxes IP55 from stainless steel

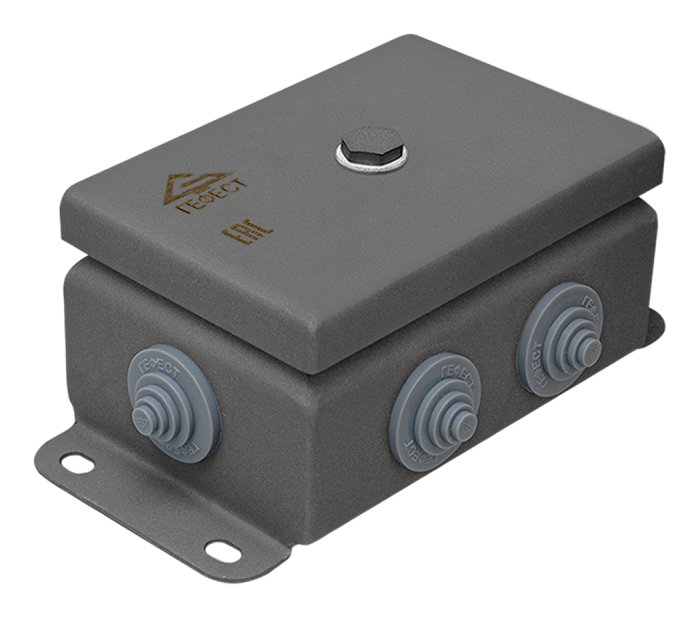

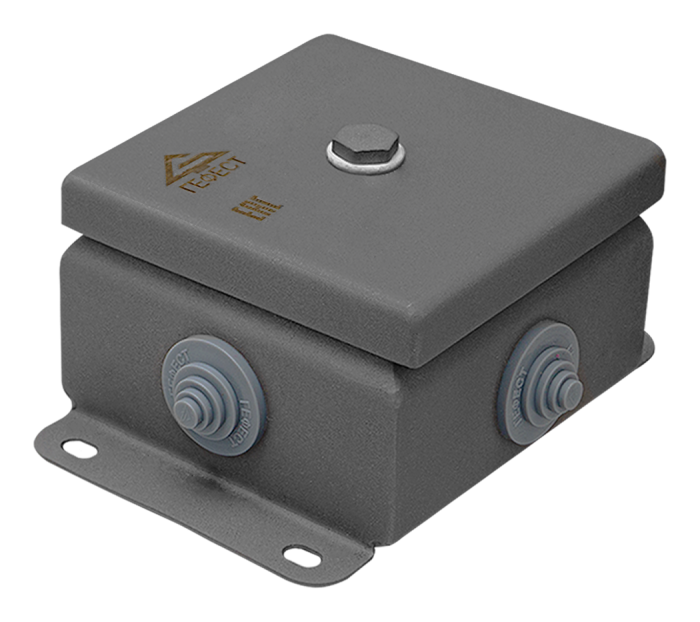

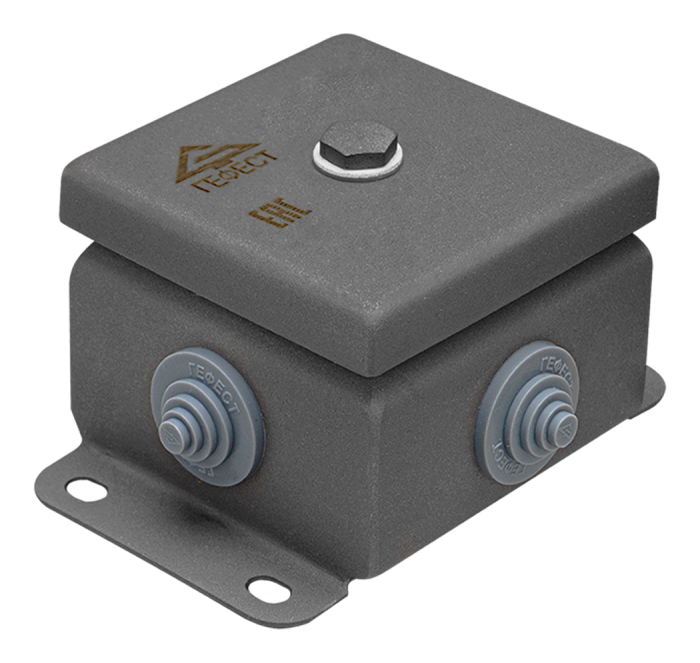

Installation boxes fireproof KM-O IP55 are designed to connect and branch fireproof cable lines.

The body is made of stainless steel sheet AISI 304 1.2 mm thick. Fireproof junction box body has a rectangular or square shape. The lid is hermetically sealed to the housing by the connection with screws and sealing silicone gasket. On the cover and on the housing there are grounding clamps "PE".  The side walls are equipped with membrane-type sealing bushings, providing the degree of protection against penetration not lower than IP55.

Fireproof junction boxes KM-O IP55 are made of stainless steel grade AISI 304, which has chemical and corrosion resistance, high strength, and has excellent low-temperature properties. All external fixing elements are made of stainless steel.  There are special seal sleeves installed in side walls providing not less than IP55 degree of protection.

The boxes are certified for compliance with the requirements of technical regulations: TR TS 004/2011 "On Safety of Low Voltage Equipment". TU 3449-005-70631050-2009.

Main technical specifications

Degree of protection: IP55.

Fire resistance as a part of the cable line: 60 minutes.

Climatic modification as per GOST 15150: EC 2, EC 5, MU 2, MU 5.

Operating temperature range from -40 ° C to +80 ° C

Connected cable diameter: 4-18 mm.

Nominal connecting capacity of terminals: 2.5, 4.0, 6.0, 10.0 mm2.

Rated voltage 450 V

Modifications

	Desifnation	Sizes*, mm	Number of inputs, up to	Number of contacts, up to

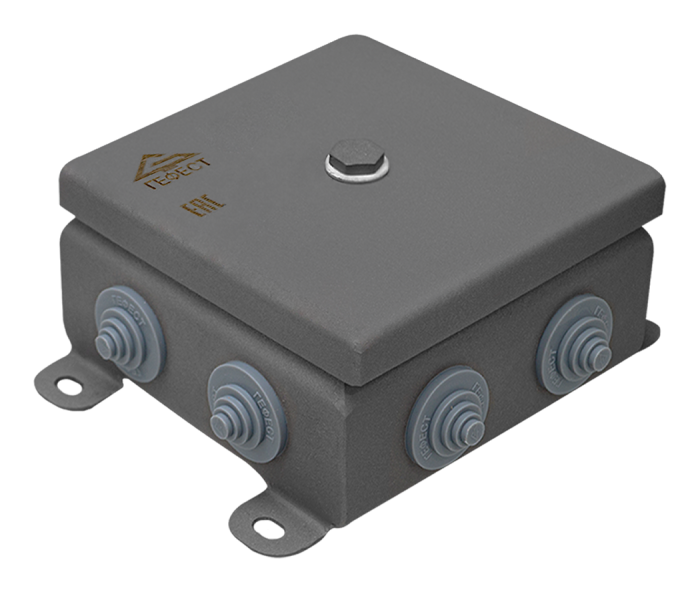

	КМ-О IP54-1212 from stainless steel	120х120х62	8	12

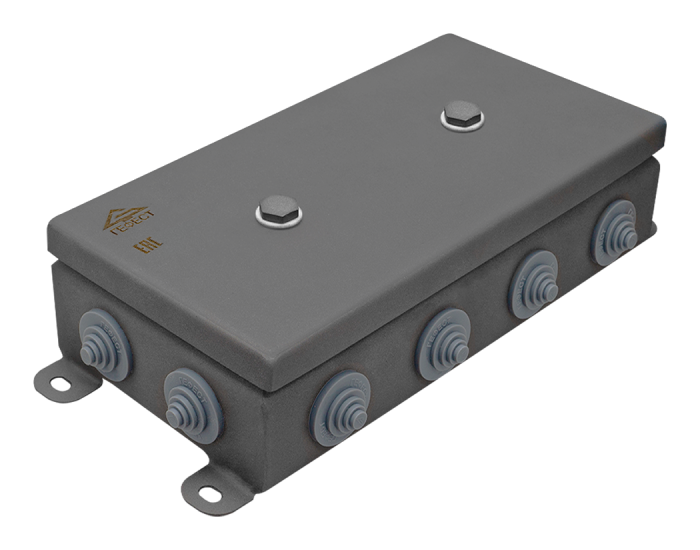

	КМ-О IP54-1224 from stainless steel	120х240х62	12	16

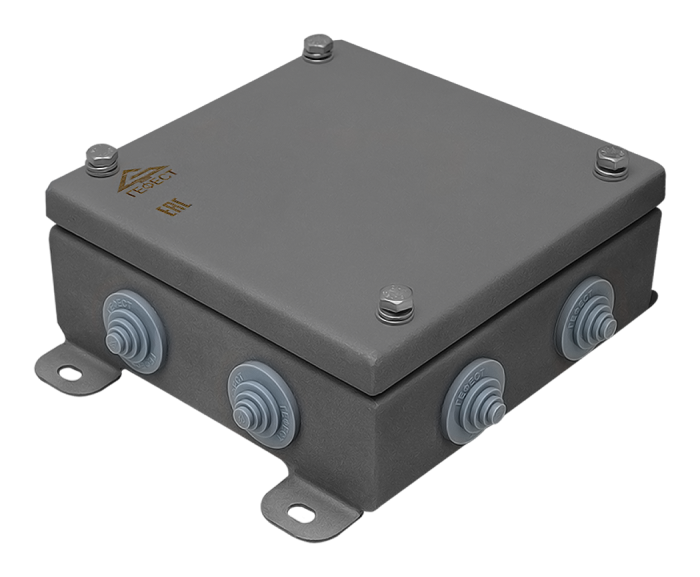

	КМ-О IP54-1515 from stainless steel	150х150х62	8	16

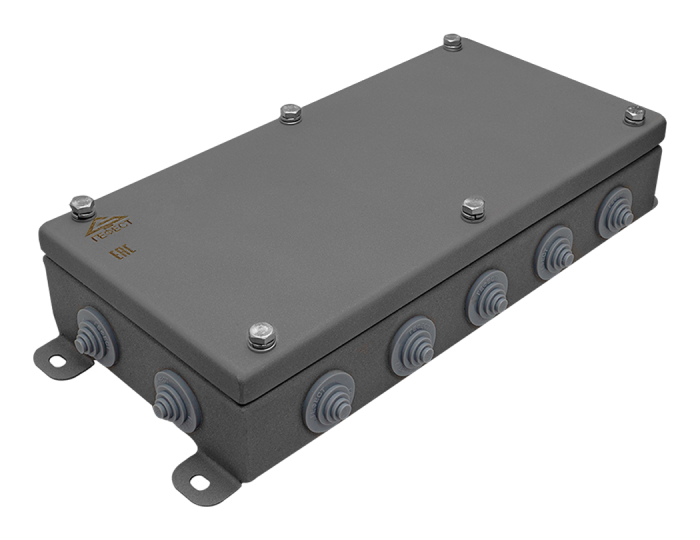

	КМ-О IP54-1530 from stainless steel	150х300х62	14	28

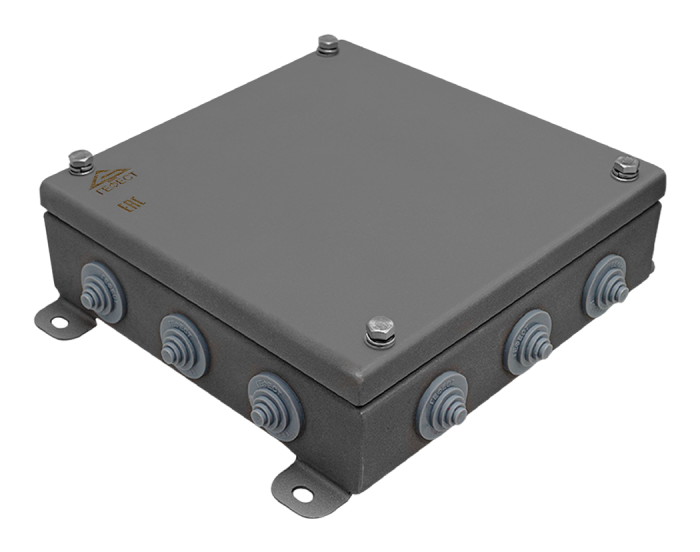

	КМ-О IP54-2020 from stainless steel	200х200х62	12	32

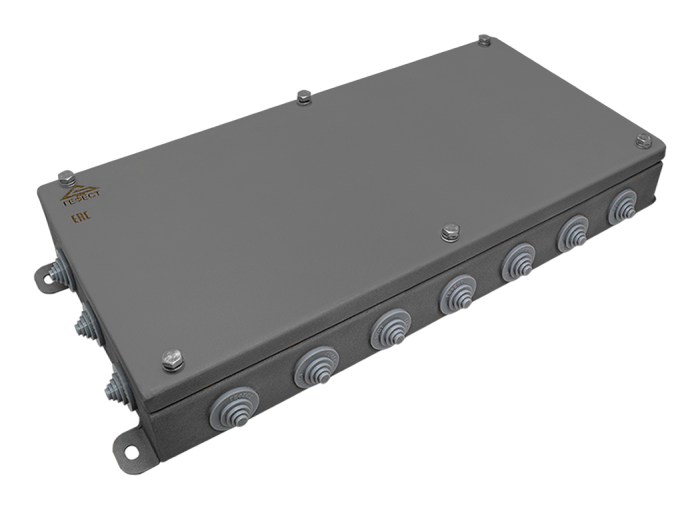

	КМ-О IP54-2040 from stainless steel	200х400х62	20	64

* without fitting elements and cable glands

Designation of junction boxes during the order

KM-O (10k*6,0)-IP54-х, where:

KM-O – denomination;

10k - number of contacts in a terminal block;

6,0 – maximum possible cross-section of wires connected to terminal blocks. In the case of installation of a terminal block needed for connection wires with a cross-section up to 3,0 mm2 this designation is not used;

IP54- degree of protection;

х - designation of size of a junction box: «1212»; «1224»; «1515»; «1530»; «2020»; «2040» (see the table  “Modifications” KM-O IP 54)

ss– stainless steel box
