vendor code УТ000029850
5814.00 rub.
Description
Modification designation |
Sizes* , mm |
Q-ty of inputs, up to |

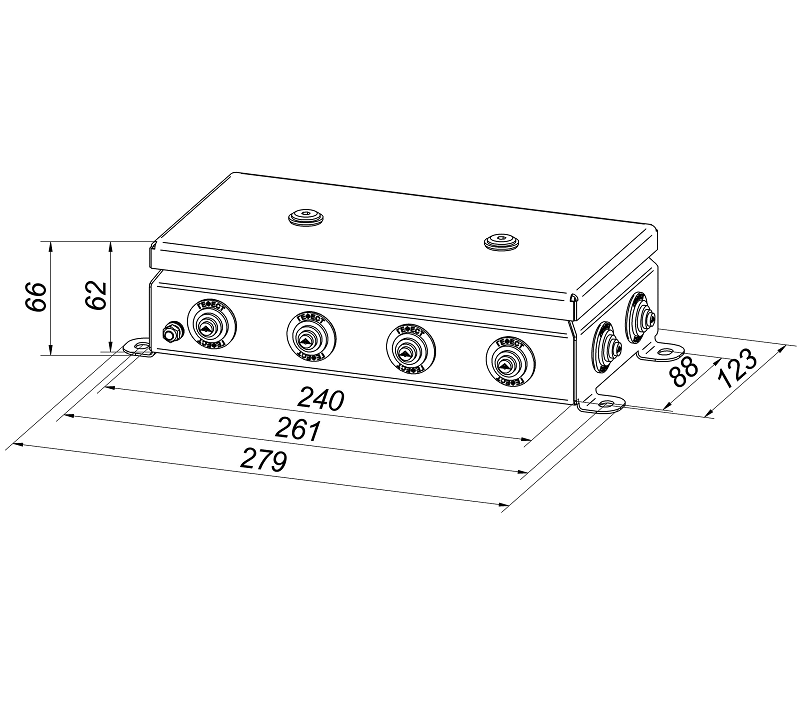

КМ-О(16k) IP55 1224 stainless steel | 123х240х62 | 12 |
* without fitting elements and cable glands
Installation boxes fireproof KM-O IP55 are designed to connect and branch fireproof cable lines.

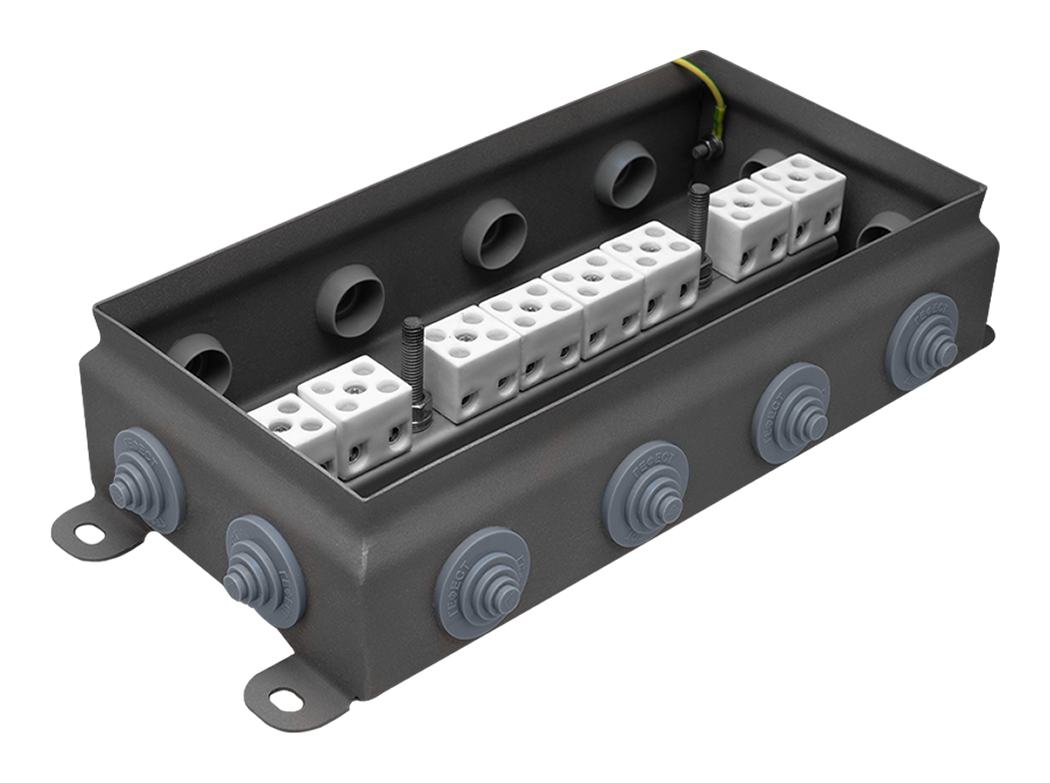

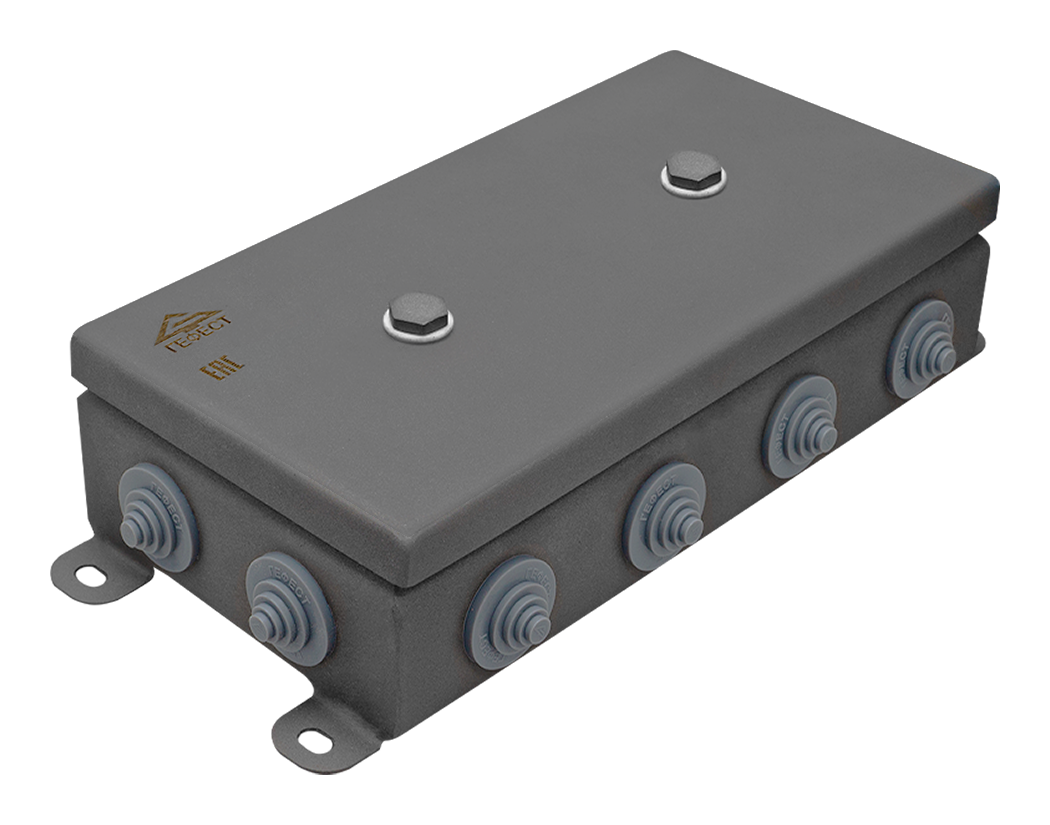

The body is made of stainless steel sheet AISI 304 1.2 mm thick. Fireproof junction box body has a rectangular or square shape. The lid is hermetically sealed to the housing by the connection with screws and sealing silicone gasket. On the cover and on the housing there are grounding clamps "PE". The side walls are equipped with membrane-type sealing bushings, providing the degree of protection against penetration not lower than IP55.
Fireproof junction boxes KM-O IP55 are made of stainless steel grade AISI 304, which has chemical and corrosion resistance, high strength, and has excellent low-temperature properties. All external fixing elements are made of stainless steel. There are special seal sleeves installed in side walls providing not less than IP55 degree of protection.
The boxes are certified for compliance with the requirements of technical regulations: TR TS 004/2011 "On Safety of Low Voltage Equipment". TU 3449-005-70631050-2009.
Main technical specifications
Degree of protection: IP55.
Fire resistance as a part of the cable line: 60 minutes.
Climatic modification as per GOST 15150: EC 2, EC 5, MU 2, MU 5.
Operating temperature range from -40 ° C to +100 ° C
Connected cable diameter: 4-18 mm.
Nominal connecting capacity of terminals: 2.5, 4.0, 6.0, 10.0 mm2.
Rated voltage 450 V
Characteristics
Designation | КМ-О IP55 1224 stainless steel |
Dimensions | 123х240х66 mm |
Max. section of the clamped wires, sq. mm | 4-18 mm2 |
Number of contacts | 16 |
Number of inputs, up to | 12 |
Power supply: voltage | 450 V |
Sheath protection degree | IP55 |
Temperature regime | from - 40ºС to +130ºС |
Weight | 1,8 kg |
