Datasheet. Fireproof and electrical junction boxes. ver 1.17.pdf Electrical junction boxes IP66(R) are designed to connect and branch wiring for various purposes.
Electrical junction boxes IP66(R) have rubber cable glands and are designed to connect. They are used for installation indoors and outdoors under a roof. Enclosure is made of stainless steel AISI 304 with thickness of 1.2 mm.
Design

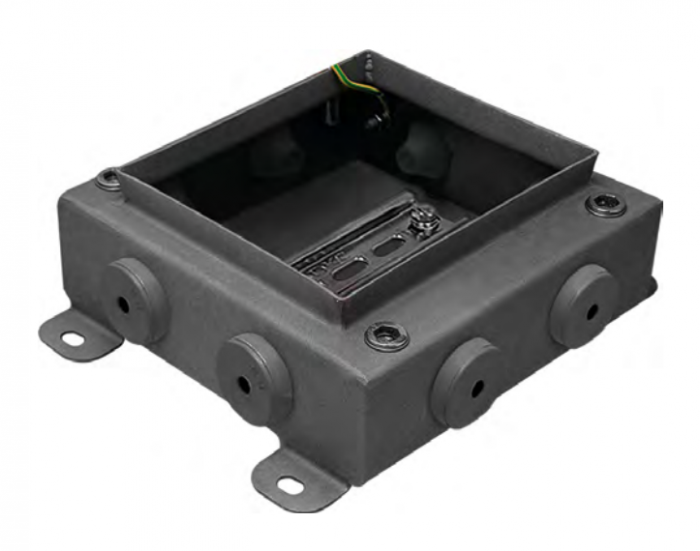

The body of the box is rectangular or square in shape. The lid fits hermetically to the body by the connection with screws and sealing silicone gasket. The boxes are equipped with a DIN rail for fixing the terminals. There are grounding clamps "PE" on the cover and on the body.
There are cable glands made of rubber, providing protection degree of at least IP66.
Electrical junction boxes have an increased corrosion resistance at the expense of galvanic treatment and polymer coating. All external mounting elements are made of stainless steel. Cable entries are made of rubber and provide quick and reliable access for the cable inside the box.
Certification

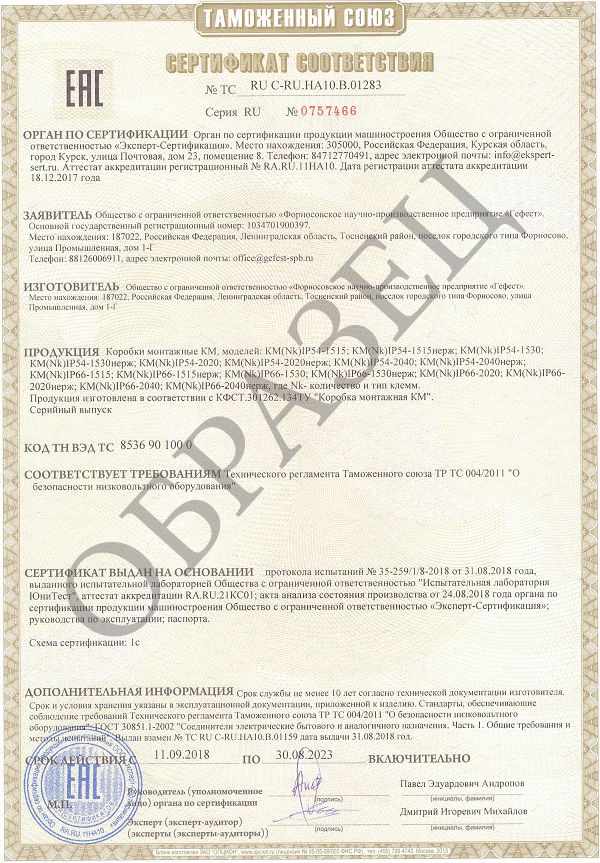

The boxes are certified for compliance with the requirements of technical regulations: ТR CU 004/2011 "About safety of low-voltage equipment".
Main technical specifications
- Protection degree IP66
- Temperature range: from - 40°С до +100°С
- Climatic modification as per GOST 15150: EC 2, EC 5, MU 2, MU 5
- Nominal connecting capacity of terminals: М12(4-7), М16(5-9), М20(8-13), М25(11-17), М32(15-20).
| Desifnation | Sizes*, mm |
Number of inputs, up tо |
|
.png "КМ-нерж-0808-IP66(Р).png") |

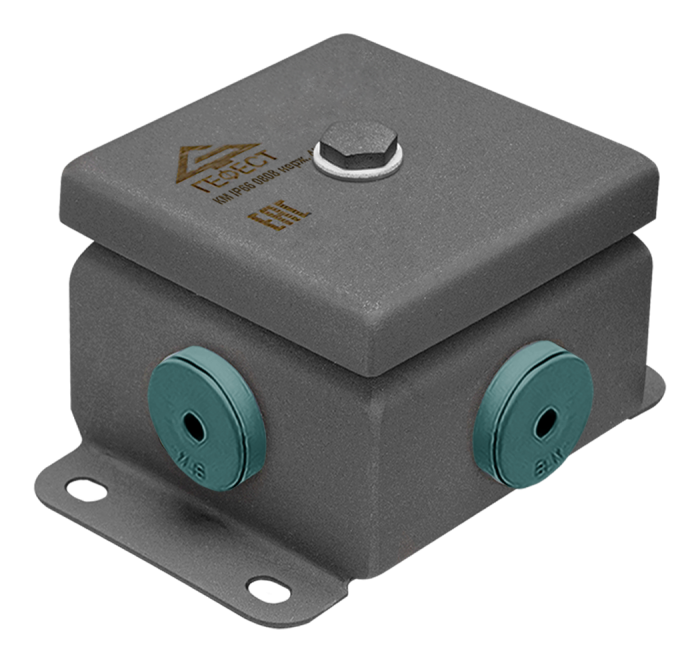

КМ IP66(Р) 0808 from stainless steel | 86х86х66 | 4 |
.png "КМ-нерж 0812-IP66(Р).png") |

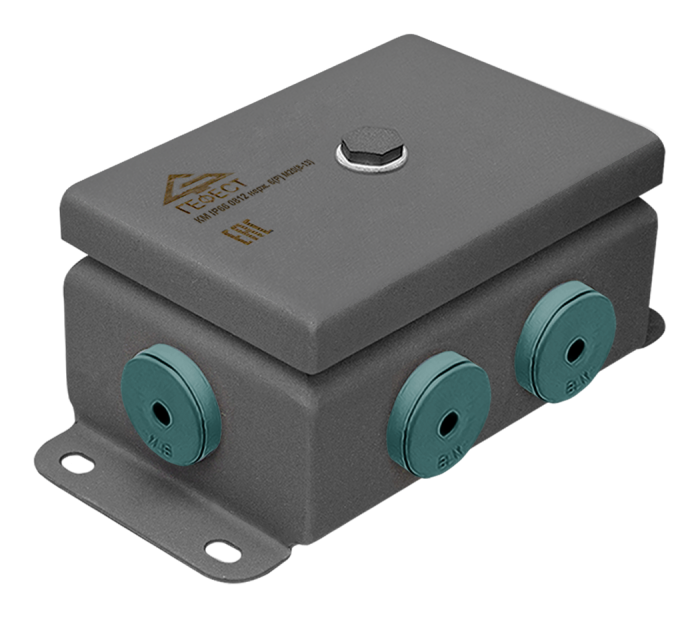

КМ IP66(Р) 0812 from stainless steel | 86х126х66 | 6 |
.png "КМ-нерж-1010-IP66(Р).png")
|
КМ IP66(Р) 1010 from stainless steel | 103х103х66 | 4 |
.png "КМ-нерж 1212-IP66(Р).png")
|
КМ IP66(Р) 1212 from stainless steel | 123х123х66 | 8 |
.png "КМ-нерж-1224-IP66(Р).png") |
КМ IP66(Р)1224 from stainless steel | 123х240х62 | 12 |
.png "КМ-нерж 1515-IP66(Р).png") |
КМ IP66(Р) 1515 from stainless steel |
150х150х66 | 8 |
.png "КМ-нерж 1530-IP66(Р).png")
|
КМ IP66(Р) 1530 from stainless steel | 150х300х66 | 14 |
.png "КМ-нерж-2020-IP66(Р).png") |
КМ IP66(Р) 2020 from stainless steel | 200х200х66 | 12 |
.png "КМ-нерж-2040-IP66(Р).png") |

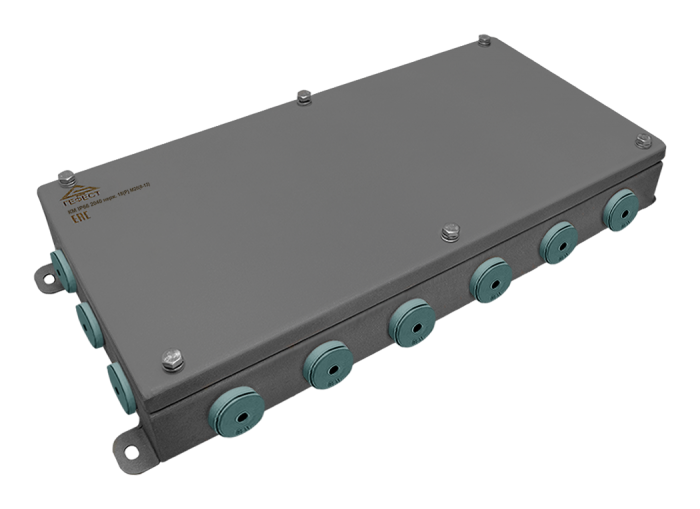

КМ IP66(Р) 2040 from stainless steel | 200х400х66 | 20 |
-закрытая-изометрия.png "КМ IP66(Р) 0808 4 inputs (8-13) from stainless steel")

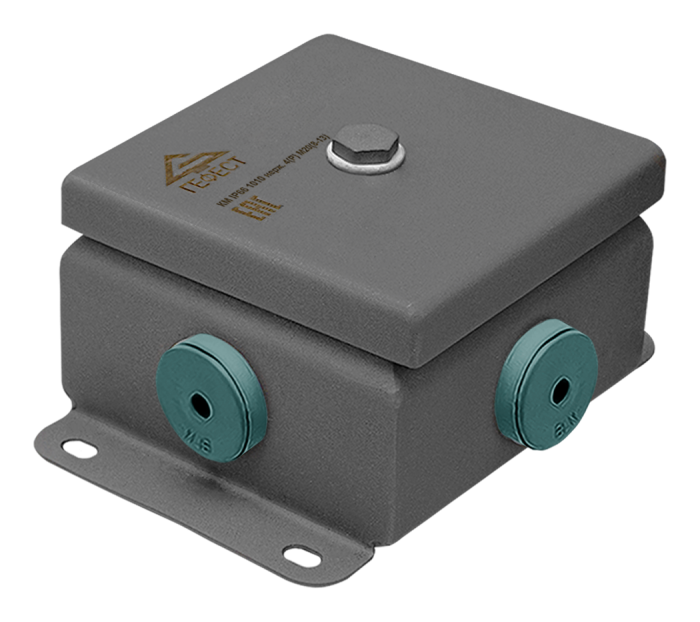

-закрытая-изометрия.png "КМ IP66(Р) 1010 4 inputs (8-13) from stainless steel")
-закрытая-изометрия.png "КМ IP66(Р) 0812 8 inputs (8-13) from stainless steel")

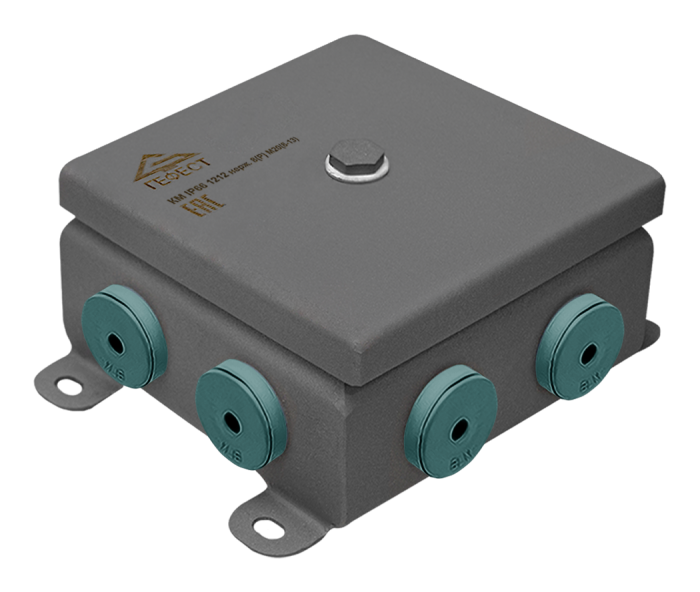

-закрытая-изометрия.png "КМ IP66(Р) 1212 8 inputs (8-13) from stainless steel")

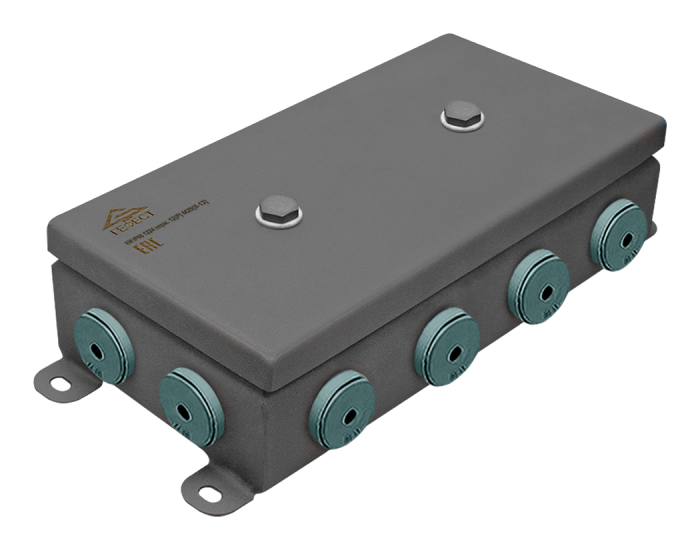

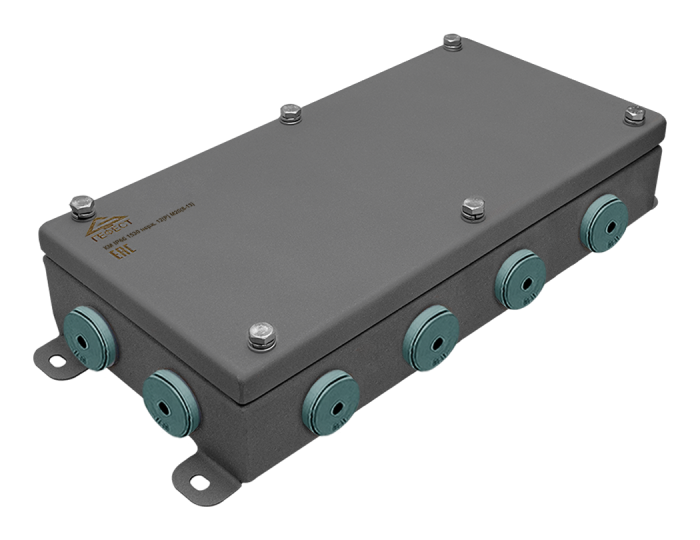

-закрытая-изометрия.png "КМ IP66(Р) 1224 12 inputs (8-13) from stainless steel")

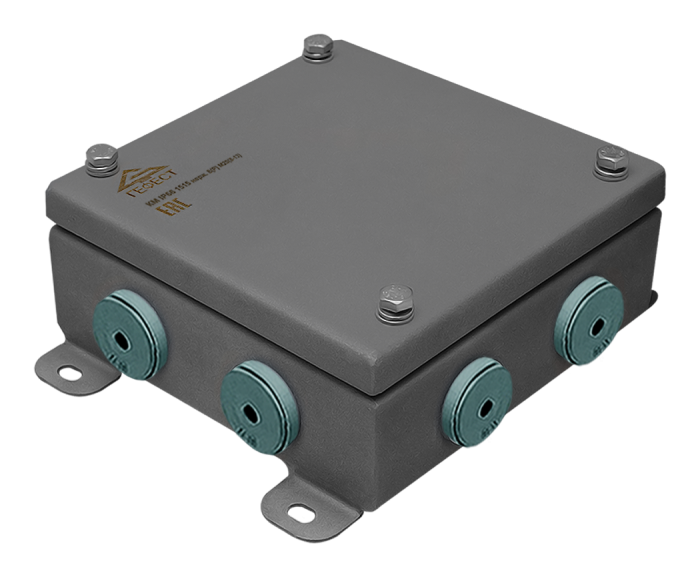

-закрытая-изометрия.png "КМ IP66(Р) 1515 8 inputs (8-13) from stainless steel")
-закрытая-изометрия.png "КМ IP66(Р) 1530 12 inputs (8-13) from stainless steel")

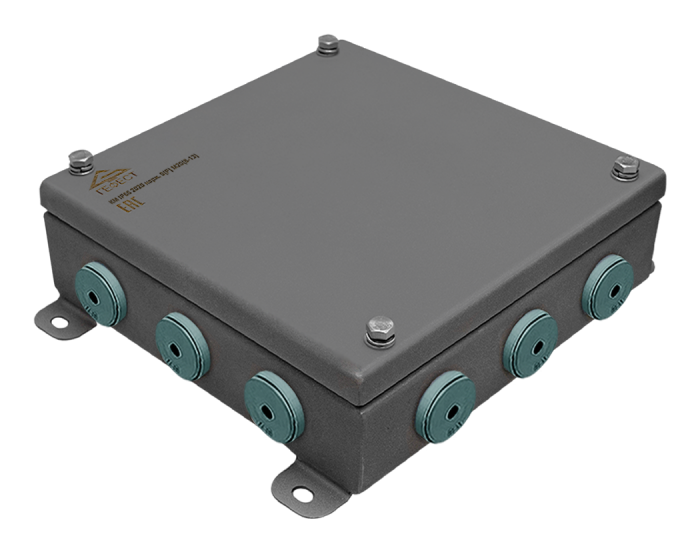

-закрытая-изометрия.png "КМ IP66(Р) 2020 12 inputs (8-13) from stainless steel")
-закрытая-изометрия.png "КМ IP66(Р) 2040 8 inputs (8-13) from stainless steel")
