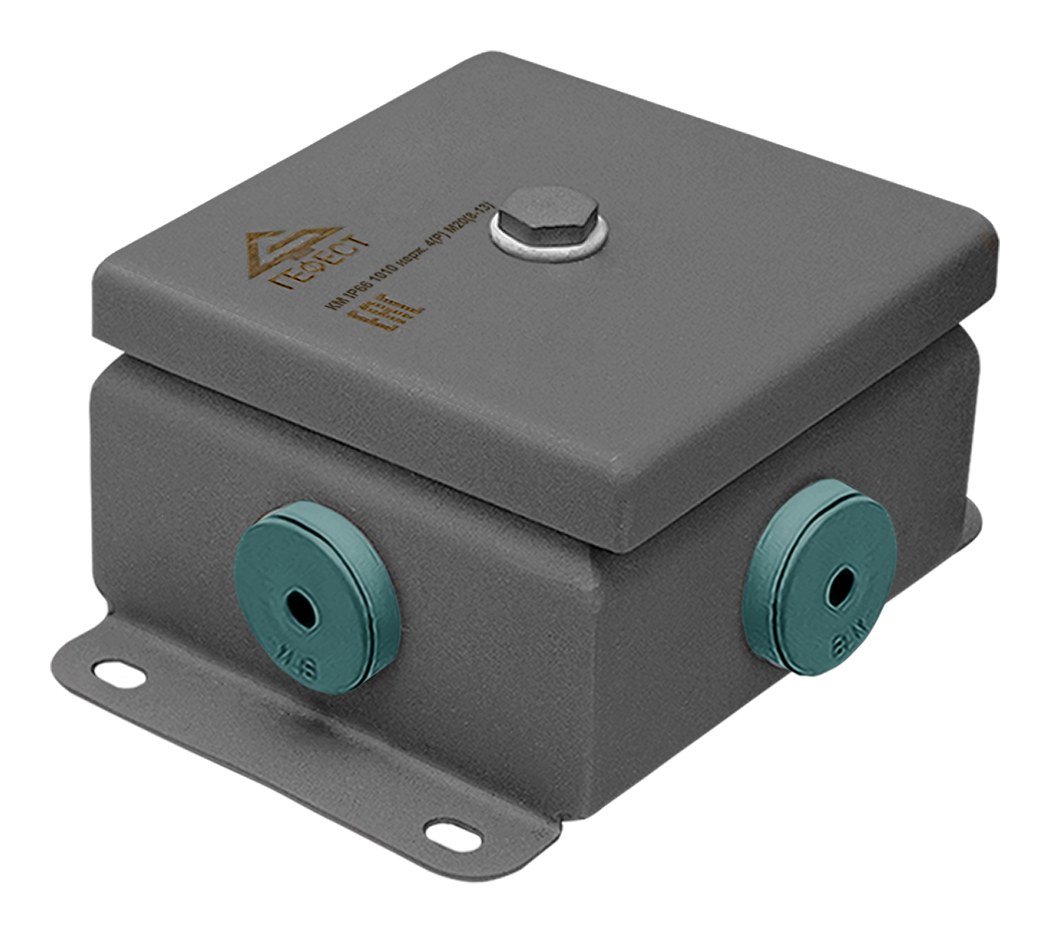

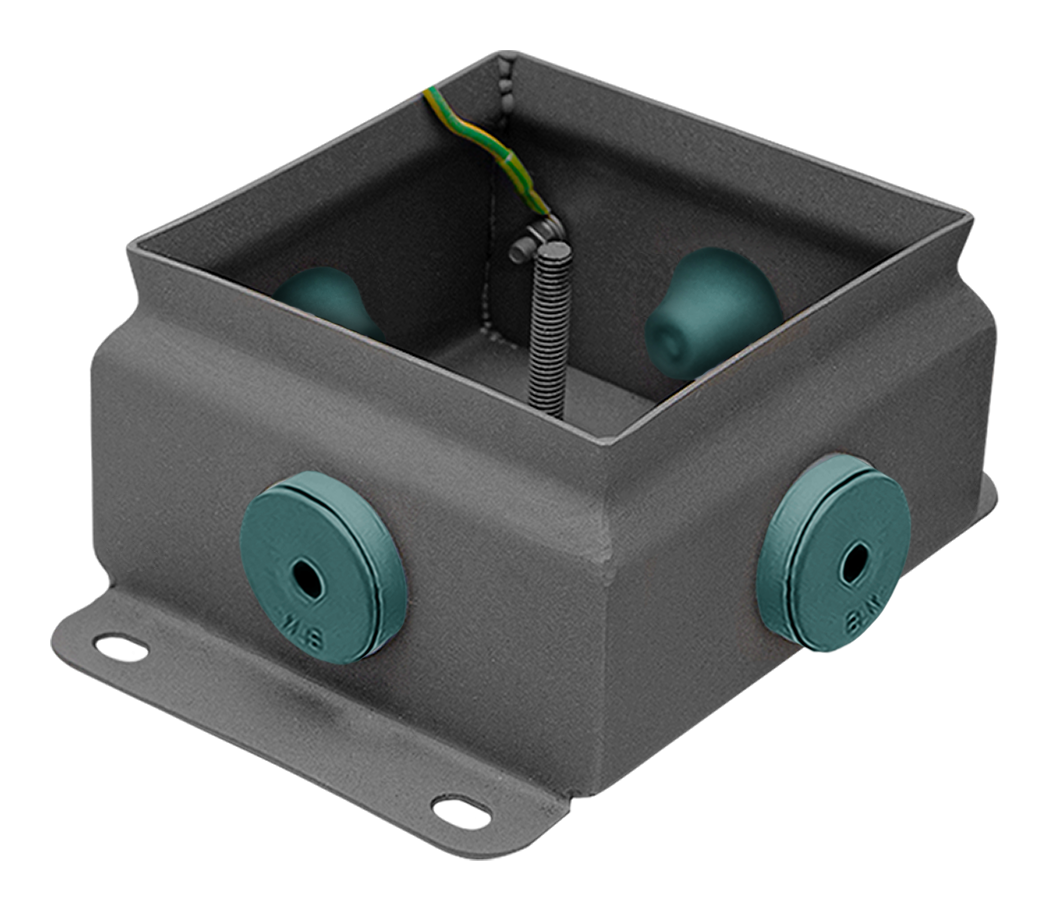

-открытая-изометрия.png "КМ IP66(Р) 1010 4 inputs (8-13) from stainless steel")
|
Modification designation |
Sizes*, mm |
Q-ty of inputs, up to |
| КМ IP66(R) 1010 from stainless steel | 103х103х62 | 8 |
* without fitting elements and cable glands
Electrical junction boxes IP66(R) have rubber cable glands and are designed to connect and branch wiring for various purposes.
They are used for installation indoors and outdoors under a roof. Enclosure is made of stainless steel AISI 304 with thickness of 1.2 mm.
Design
The body of the box is rectangular or square in shape. The lid fits hermetically to the body by the connection with screws and sealing silicone gasket. The boxes are equipped with a DIN rail for fixing the terminals. There are grounding clamps "PE" on the cover and on the body.
There are cable glands made of rubber, providing protection degree of at least IP66.
Electrical junction boxes have an increased corrosion resistance at the expense of galvanic treatment and polymer coating. All external mounting elements are made of stainless steel. Cable entries are made of rubber and provide quick and reliable access for the cable inside the box.
Certification
The boxes are certified for compliance with the requirements of technical regulations: ТR CU 004/2011 "About safety of low-voltage equipment".
Main technical specifications
Protection degree IP66
Temperature range: from - 40°С до +100°С
Climatic modification as per GOST 15150: EC 2, EC 5, MU 2, MU 5
Nominal connecting capacity of terminals: М12(4-7), М16(5-9), М20(8-13), М25(11-17).
| Bestseller | Novelty |
| Designation | КМ IP66(Р) 1010 from stainless steel |
| Dimensions | 103х103х62 mm |
| Dimensions, mm | 103х103х62 |
| Number of inputs, up to | 8 |
| Sheath protection degree | IP66 |
| Temperature regime | from -40ºС tо +100ºС |
| Weight | 0,75 kg |
