Description

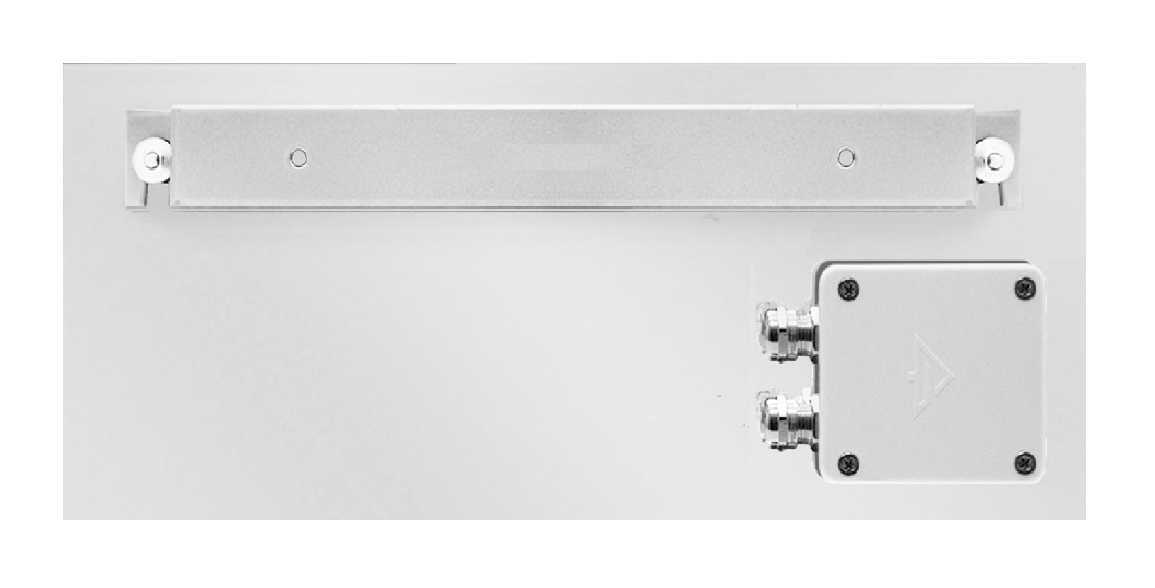

The body of the panel is made from galvanized steel (painted with a polymeric white paint and can be painted ion any RAL color according to the customer’s will).
Signal colors, form and sizes of the panels are corresponded to GOST 12.4.026-2015.
Any text or pictographic image can be used.
Peculiarities:
- Provide a contrast visibility of a sign in direct illumination conditions up to 50000 lux

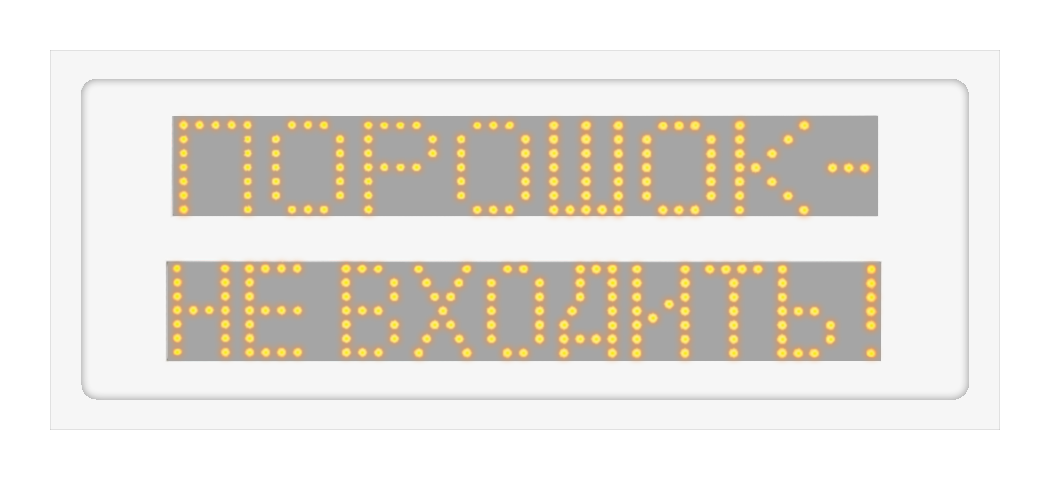

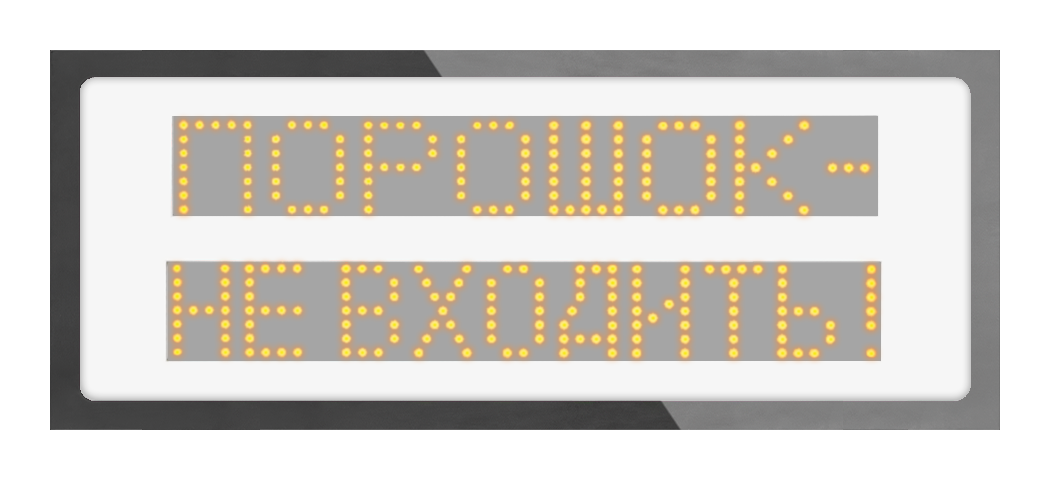

- LED screen
- For outside installation a cap should be used
- Any pictograms in any language can be placed
- Temperature range from -40 to +55
- Clearly inform about operation mode of a panel
- Protective cover – IP66
- Weight - 1,5 kg
Technical characteristics:
Electrical supply – from an AC power supply with U =24V
Operability under voltage change – from 18V to 30V (U max)
Useful current – not more than 250 mA
Sizes, mm:
2х8 - 350х150х40
Connection diagram
Characteristics
Designation | 2х8 |
Dimensions | 350х150х40 mm |
Power supply: current, no more | 250 mA |
Power supply: voltage | 24V |
Sheath protection degree | IP 44, IP 66 |
Temperature regime | from –40 to + 55°С |
Weight | 1,5 kg |
Docs
Datasheet. Visual alarm
552.6 Кб
Passport. Visual alarm
194.7 Кб
