449.00 rub.
Description

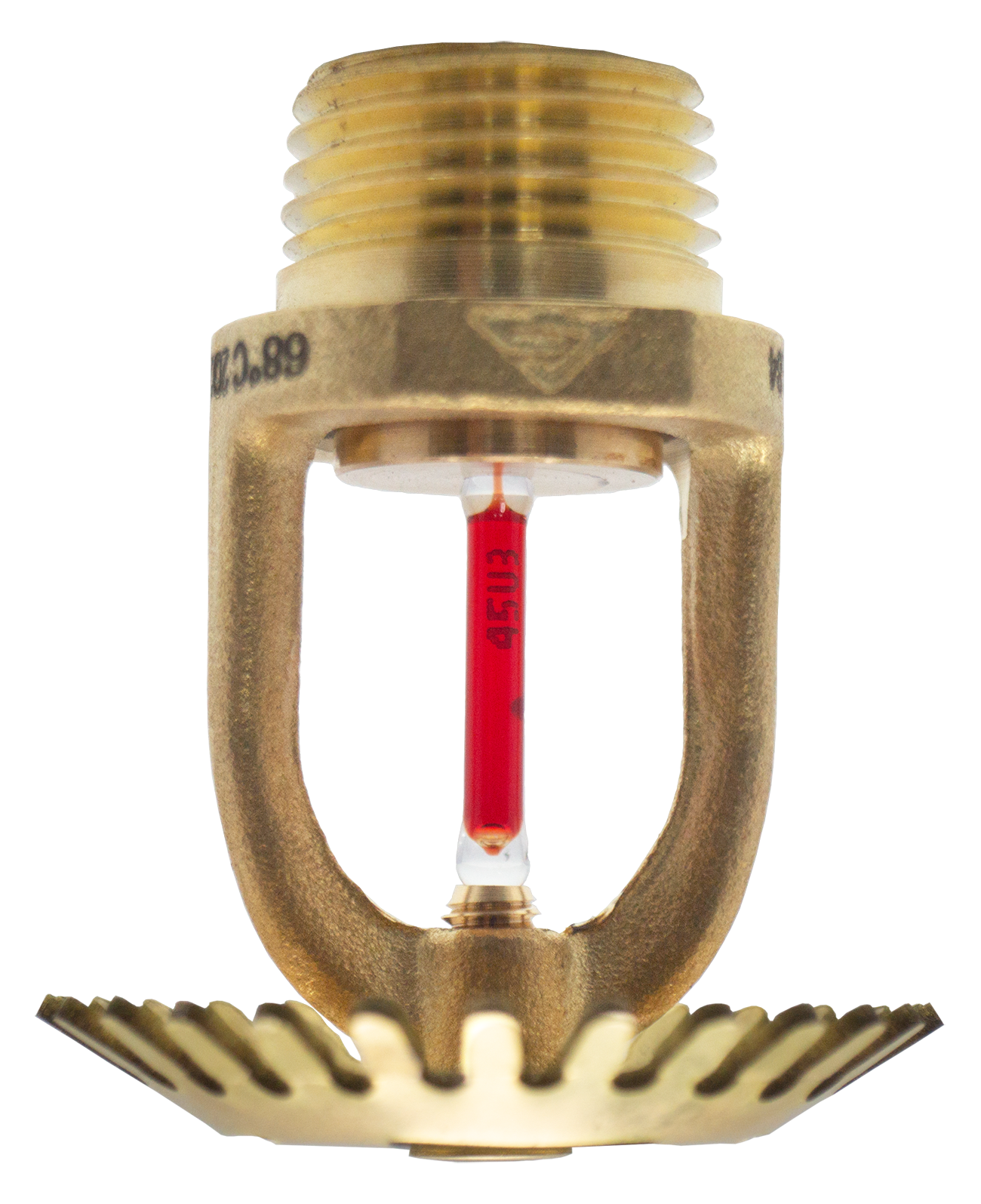

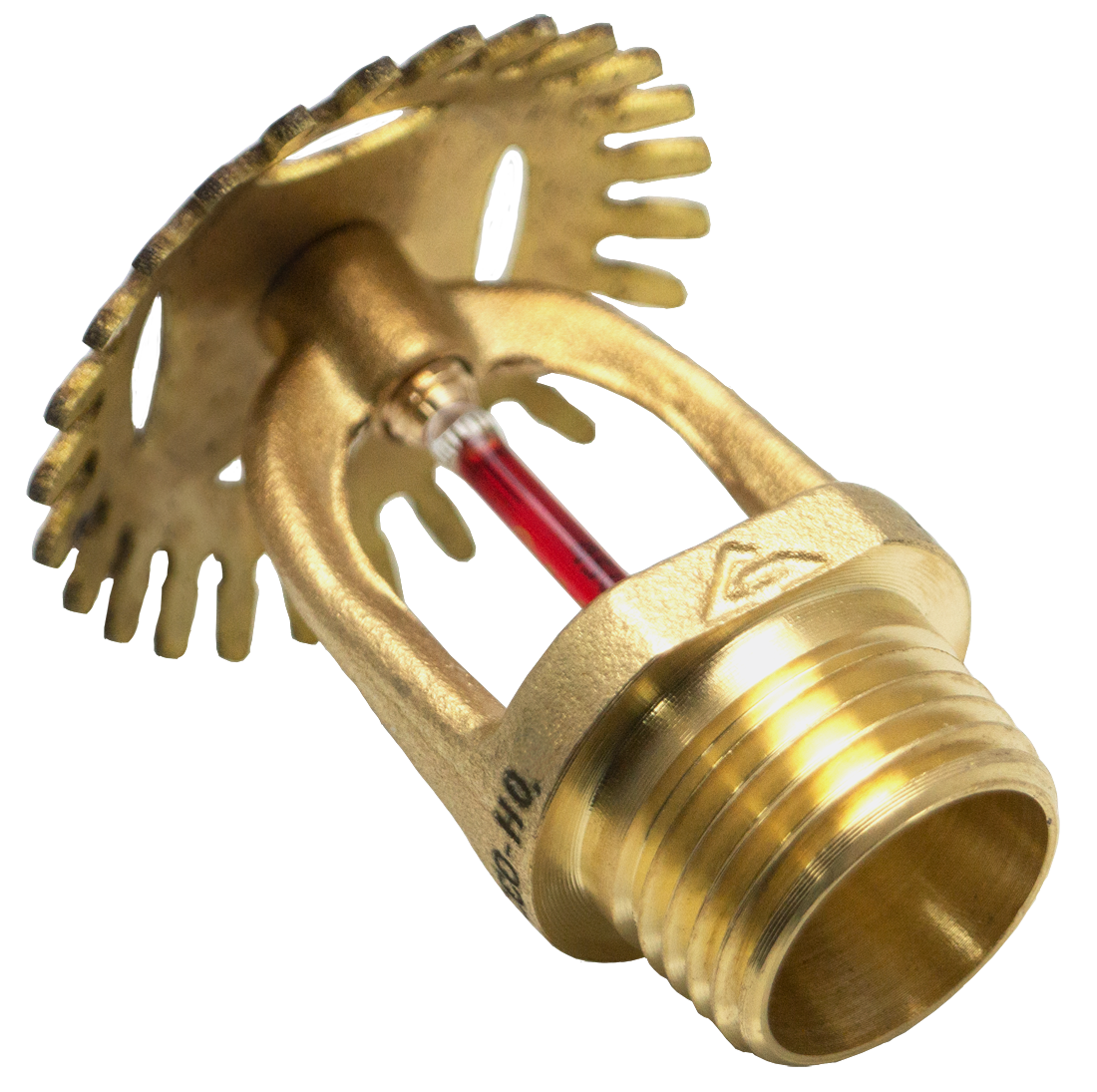

Rack sprinklers for high-storage warehouses К=0,47/89,1/6,1
Sprinklers "Aqua-Gefest" are implemented in automatic extinguishing units.
These sprinklers are designed to protect the premises with high-stack storage of goods.
Their installation is carried out in the intra-rack space and provides the fastest and most effective extinguishing of racks. Design of installations is carried out by SP 241.1311500.
We produce sprinklers with two capacity factors: 0.47, 0.80 and 0.84.
Characteristics
Atomizer weight | 0,076 кg |
Connecting thread | R½ |
Dimensions | 60х30 mm |
Drencher or Sprinkler | Sprinkler |
Installation orientation | Pendent |
K-factor | 6,1 (89,1) |
Performance factor | 0,47 |
Protected area | 3 m2 |
Sprinkler flask diameter | 2,5 mm, 3 mm, 5 mm |
Sprinkler response temperature | 57°С, 68°С , 79°С |
