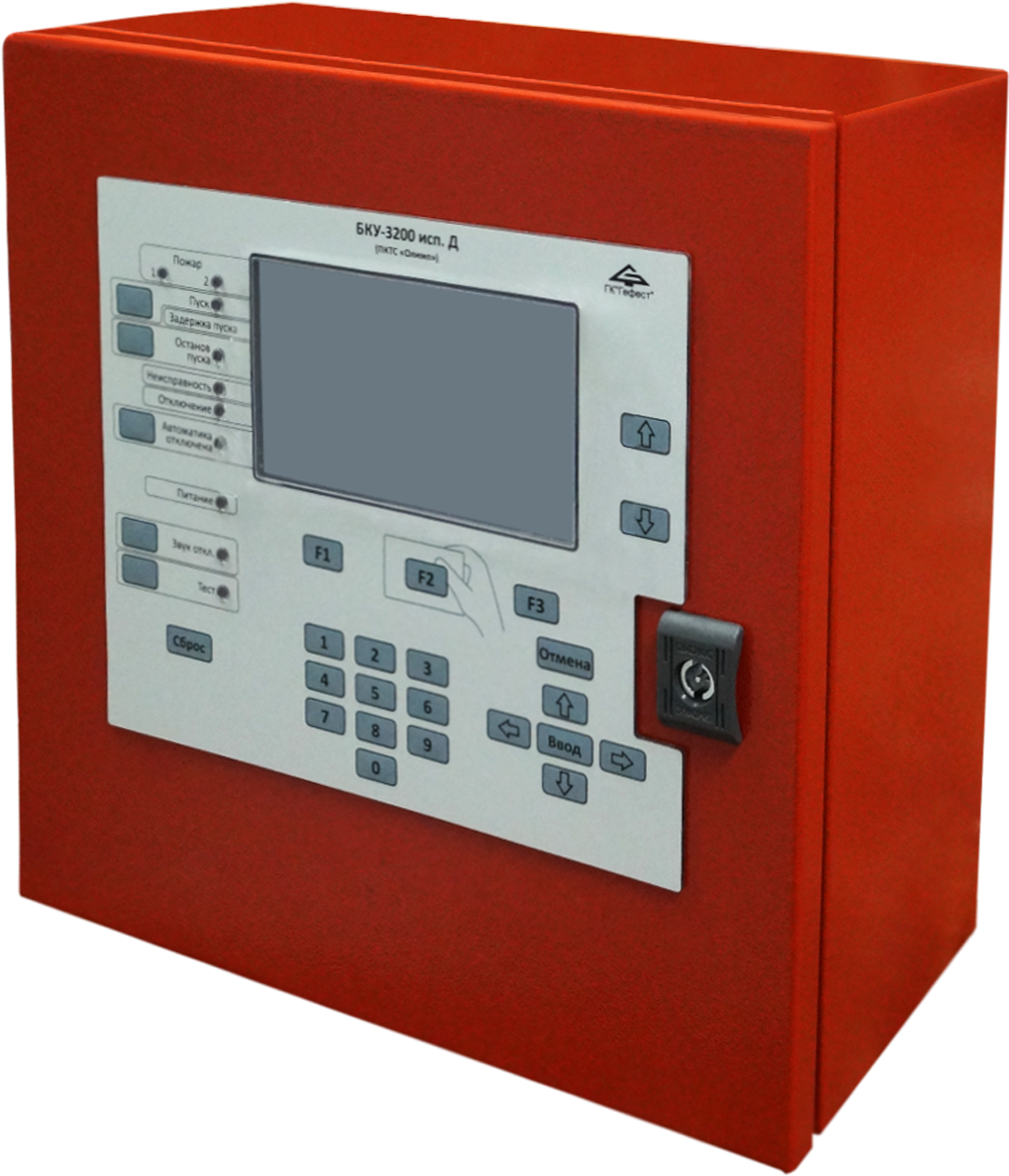

BKU-320 D (Monitoring and control unit) is a head device of a fire receiving and control unit PKTS “Olimp” and is aimed for monitoring and control of local controllers KL-240SA and KL-240AE. It has a graphic display which allows to show the condition of the automatic extinguishing system with electrical activation in real time.
Purpose
• Connection of Automatic working place
• Displaying of addressable information about events in the system in the text formant
• Control of automatic extinguishing units with electrical activation in automatic mode according to predetermined algorithm.
• Manual activation of any sprinkler
Technical specification
Parameter |
Value |
Comment |
Power supply voltage |
=24V |
|
Quantity of local controllers |
20 |
|
Quantity of addresses |
4800 |
+100 (20*5) technical address |
Length of the line: |
||
RS-485 |
1,5km |
|
Analog power line |
1,5km |
|
Power supply |
80m |
|
Quantity of zones (directions) of extinguishing |
1 |
|
to central observation |
4 |
Transfer |
Quantity of activated sprinklers: |
||
Simultaneously |
2 |
Current limitation |
Maximum |
20 |
Water limitation |
*Length increase is possible only using IKZ RS-485
Dimensions | 400х400х200 мм |
Power supply: current, no more | 180 мА |
Power supply: voltage | =24 ± 4 В |
