KL-240AE is used for monitoring of addressable-analog fire detectors. Ring connection line with addressable fire detectors provides a reliable operation of the system and their automatic addressing.
Purpose:
• monitoring of connection line with addressable devices
• receiving of analogous information;
• exchange of information with BKU-3200
• transfer of information to BKU-3200 about condition of detectors
• conductivity with heat detectors
Technical characteristics
| Parameter | Value |
|
Electric supply voltage current, not more |
|
|
Total number of connected AU |
240 |
| Voltage in signal estaphete line for feeding of address devices |
9 V |
|
Signal estaphete line parameters: |
|
| Cover protection degree | IP20 |
| Sizes, not more | 160х115х40 mm |

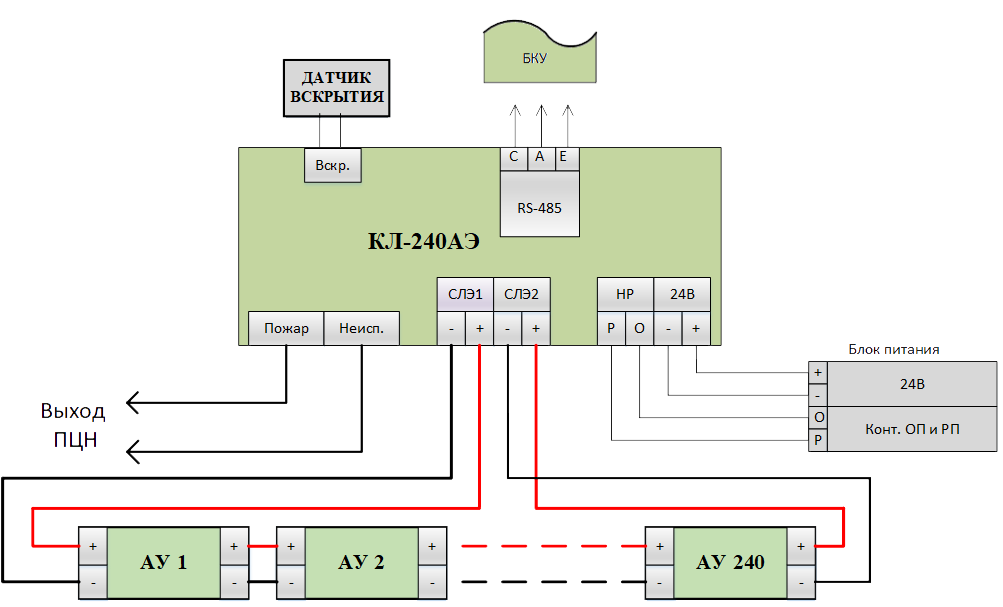

Connection diagram
| Dimensions | 160х115х40 mm |
| Power supply: current, no more | 90 mА |
| Power supply: voltage | 24 ± 4 V |
