Description

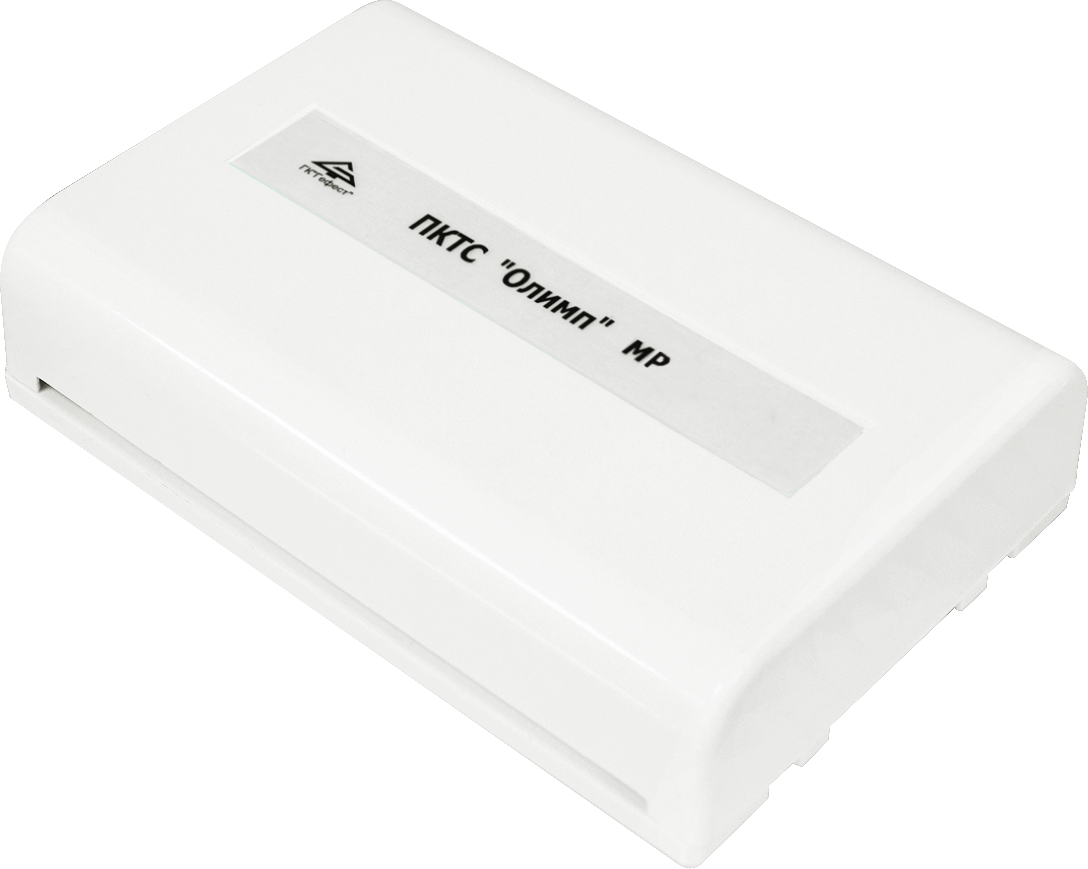

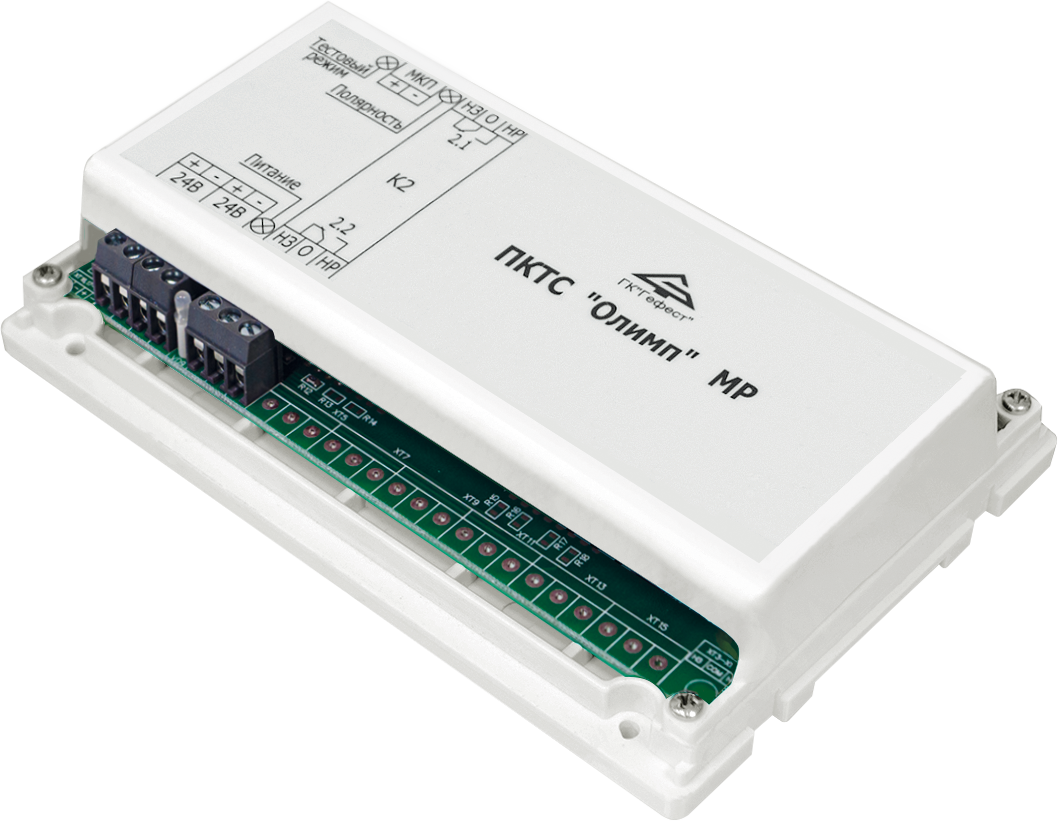

Relay module

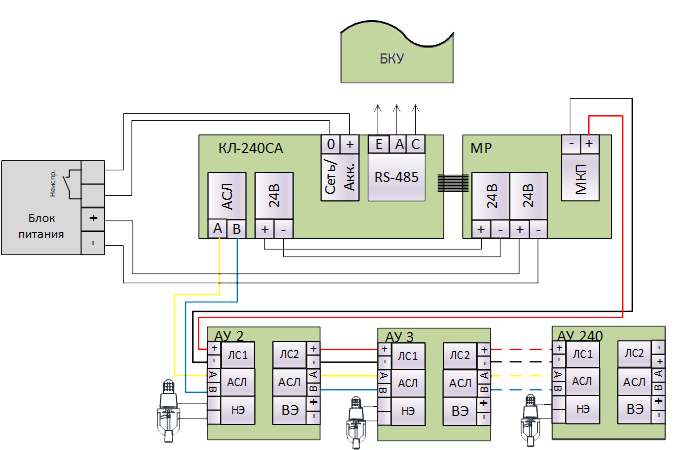

Relay module is used for power supply of peripheral devices of fire extinguishing systems with electrical activation. It works together with local controller KL-240SA and is located next to it.
Purpose
- Power supply of addressable devices
- Switching of power supply polarity of addressable devices
Technical specification
- Double-wire power supply stub - = 24V
- Power supply - = 24V
- Commutated current – not more than 5 A
Characteristics
Power supply: current, no more | 30 мА |
Power supply: voltage | 24 ± 4 В |
