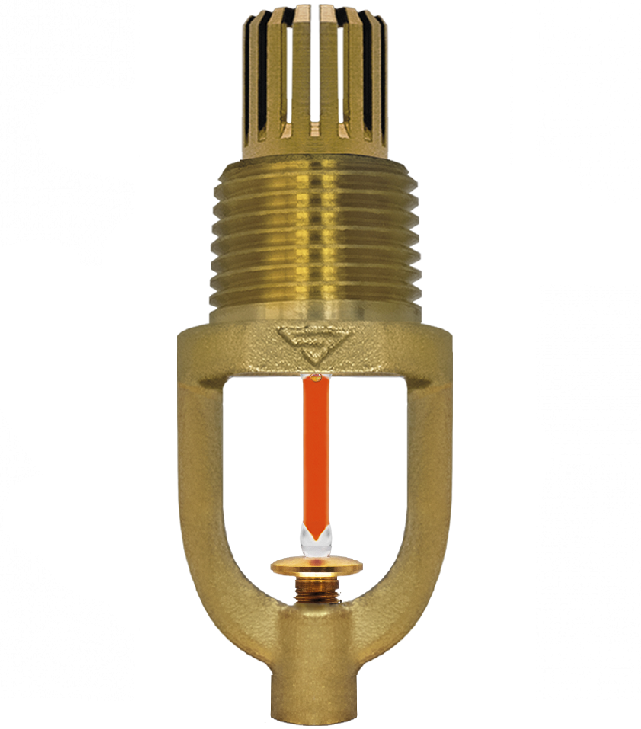

Water-Mist sprinkler «Aqua-Gefest»
CBS0-ПНо(д) 0,10-R1/2 /Р57 (68, 79, 93).В3 Aqua-Gefest
Description
Water-Mist sprinklers and nozzles are manufactured as pendent, upright and horizontal sidewall ones. Sprinkler map may be seen below.
Purpose
Protection of compartments of group I
Certificate - valid until 14.06.2022.
Design parameters
| Max. distance between sprinklers | 4 m |
| Protected area | 16 m2 |
| Max. height of installation | 20 m |
Technical characteristics
| K--Factor (Russian) | 0,10 |
| Orifice | 3.5 mm |
| Actuation temperature | 57°С, 68°С , 79°С, 93°С |
| Bulb diameter | 3 mm |
| Operating pressure | 0,8-1,7 MPa |
| Drops diameter | not more than 80 mkm |
| Max. air pressure | ≤0,6MPa |
| Heat inertia index | not more than 40 (m·s) 1/2 |
| Thread | 1/2 inch |
| Size | 89х28 mm |
| Weight | 0,096 kg |
Diagram of water irrigation intensity dependence on pressure
on the protected area of 16 m2
Sprinkler maps
Installation height 2,5m for pendent water-mist sprinklers
| Performance factor | 0,10 |
| Max. distance between nozzles | 4 м |
| Dimensions | 88х28 мм |
| Diameter add. holes | 2,0 мм |
| Sprinkler flask diameter | 3 мм |
| Main hole diameter | 3,5 мм |
| Drencher or Sprinkler | Sprinkler |
| Protected area | 16 м2 |
| K-factor | 0.10 |
| Number of add. holes | 8 |
| Max. installation height of nozzles | 20 м |
| Atomizer weight | 0,096 кg |
| Model | CBS0-ПНо(д) 0,10-R1/2 /Р57 (68, 79, 93).В3 |
| Installation orientation | Pendent |
| Connecting thread | 1/2 |
| Sprinkler response temperature | 57°С, 68°С , 79°С, 93°С |
