508.00 rub.
Description

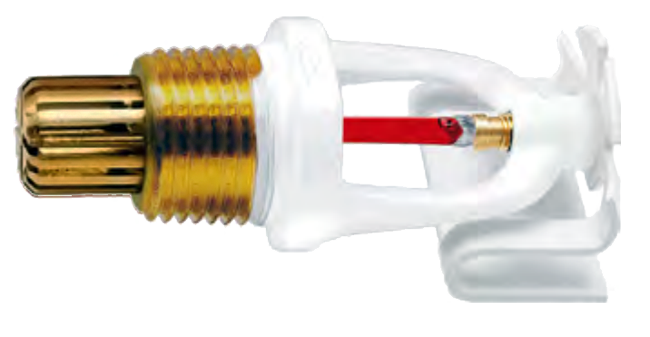

- Sidewall water-mist sprinkler
- CBS1-ПГо(д) 0,07-R1/2.Р57 (68, 79, 93).В2 Aqua-Gefest
- For locations of the 1-st and 2-nd groups (SP 5.13130) with height up to 20 m.
- Output port diameter - 3 mm
- K-factor - 0,9 (13,3)
- Protected area - not less than 9 sq.m.
- Actuation temperature - 57° С, 68° С , 93° С.
- Thread - 1/2 inches
- Color - without cover (bronze), with cover (nickel, white)

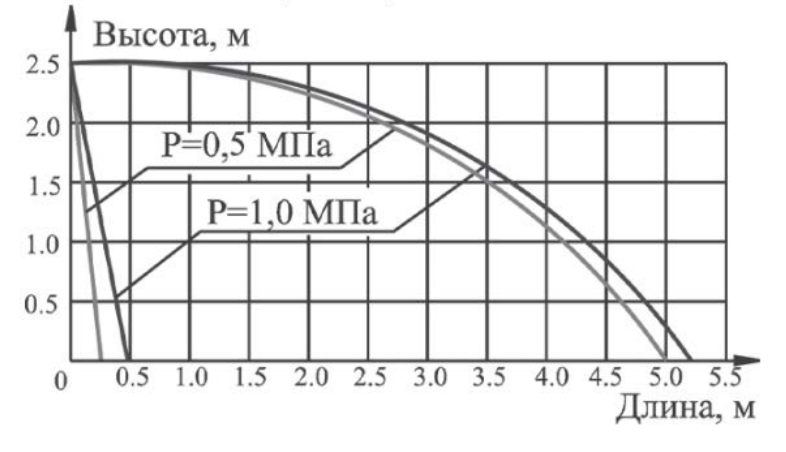

Diagram of water irrigation intensity for water-mist sprinklers with capacity factor K=0.07
Installation height 2,5m

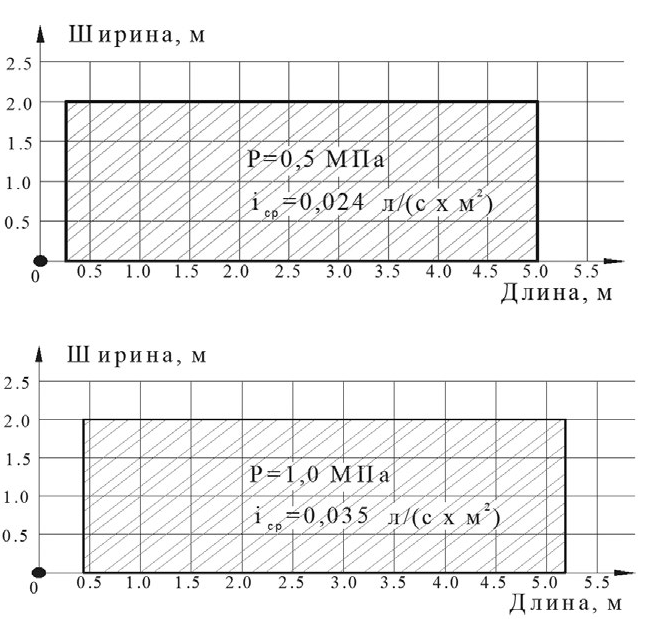

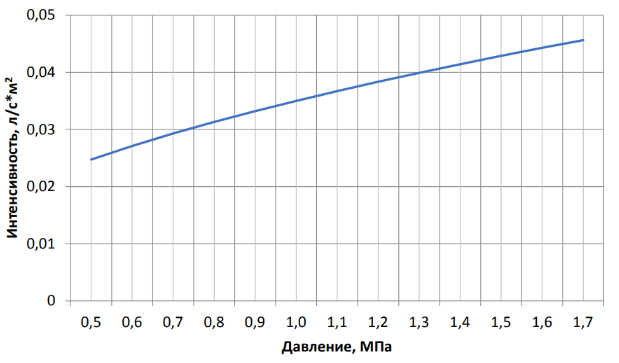

Diagram of water irrigation intensity dependence on pressure on the protected area of 20 m2
Installation height 2,5m for upright water-mist sprinklers
Characteristics
| Atomizer weight | 0,09 kg |
| Connecting thread | 1/2 |

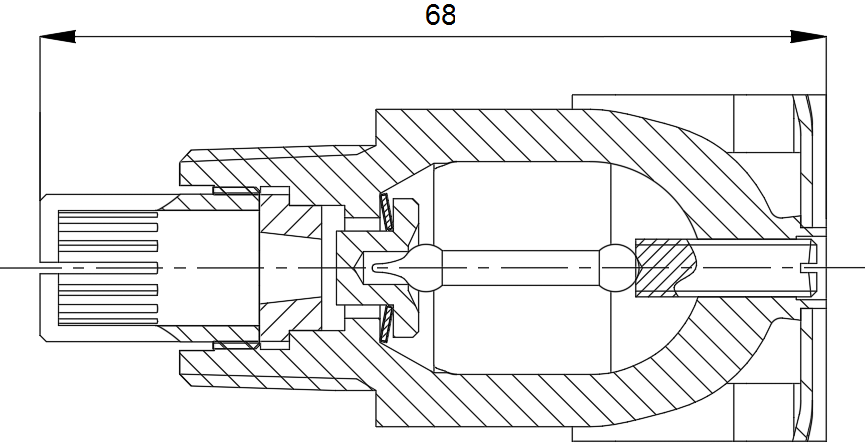

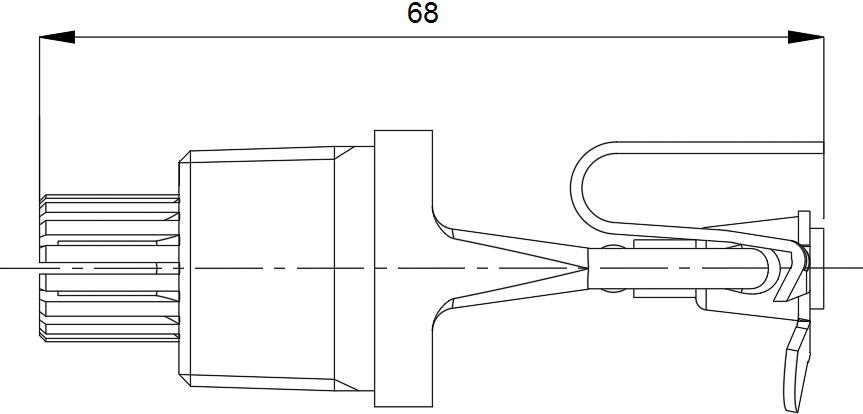

| Dimensions | 78x30 mm |
| Drencher or Sprinkler | Sprinkler |
| Installation orientation | Horizontal |
| K-factor | 0,9 (13,3) |
| Max. distance between nozzles | 3 м |
| Max. installation height of nozzles | 20 м |
| Model | CBS1-РГо(д) 0,07-R1/2 /Р57 (68, 79, 93).В3 Aqua-Gefest |
| Outlet diameter | 5 мм |
| Performance factor | 0,07 |
| Protected area | 20 м2 (5 м х 4 м) |
| Sprinkler flask diameter | 3 мм |
| Sprinkler response temperature | 57°С, 68°С , 79°С, 93°С |
