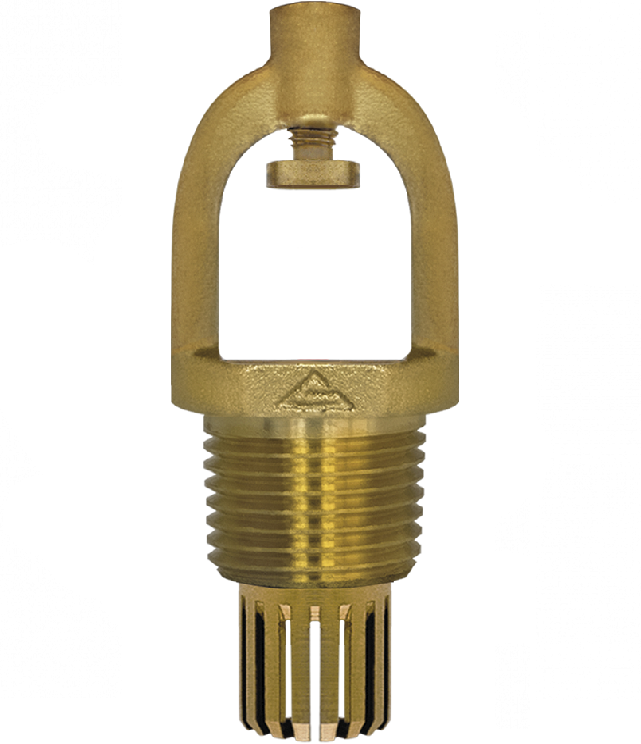

Water-Mist nozzle «Aqua-Gefest»
ДBS0-ПВо(д) 0,07-R1/2.В2 Aqua-Gefest
Description
Water-Mist sprinklers and nozzles are manufactured as pendent, upright and horizontal sidewall ones. Sprinkler map may be seen below.
Purpose
Protection of compartments of group I
Certificate - valid until 14.06.2022.
Design parameters
| Max. distance between sprinklers | 3 m |
| Protected area | 9 м2 |
| Max. height of installation | 20 м |
Technical characteristics
| K--Factor (Russian) | 0,07 |
| Orifice | 3 mm |
| Operating pressure | 0,8-1,7 MPa |
| Drops diameter | not more than 80 mkm |
| Max. air pressure | ≤0,6MPa |
| Heat inertia index | not more than 40 (m·s) ½ |
| Thread | 1/2 inch |
| Size | 68х28 mm |
| Weight | 0,096 kg |
Diagram of water irrigation intensity dependence on pressure on the protected area of 9 m2 (two or more)
Installation height 2,5m for upright water-mist sprinklers
Diagram of water irrigation intensity dependence on pressure on the protected area of 9 m2
Installation height 2,5m for upright water-mist sprinklers
Sprinkler maps
| Atomizer weight | 0,096 кg |
| Connecting thread | 1/2 |
| Dimensions | 68х28 мм |
| Drencher or Sprinkler | Drencher |
| Installation orientation | Upright |
| K-factor | 0,9 (13,3) |
| Max. distance between nozzles | 3 м |
| Max. installation height of nozzles | 20 м |
| Model | ДBS0-ПВо(д) 0,07-R1/2.В3 Aqua-Gefest |
| Outlet diameter | 3 мм |
| Performance factor | 0,07 |
| Protected area | 9 м2 |
| Sprinkler flask diameter | 3 мм |
| Sprinkler response temperature | 57°С, 68°С , 79°С, 93°С |
