Description
Foam/water standard sprinklers "Aqua-Gefest" are implemented in automatic extinguishing.
Technical features

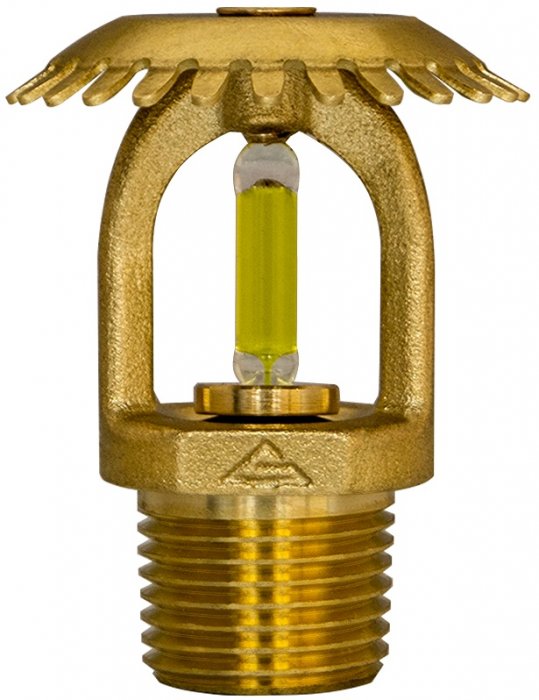

Upright sprinkler
K-factor - 0,71/9,5/135
Protected area - not less than 12 sq.m.
Actuation temperature - 57°С, 68°С , 79°С, 93°С.
Bulb of standard response - 5 mm, of fast response - 3mm
Thread - 1/2 inches
Finish - without cover (bronze), with cover (nickel, white)
Weight - 0,08 kg
Overall dimensions - 60х42 mm
Technical features
Upright sprinkler
K-factor - 0,71/9,5/135
Protected area - not less than 12 sq.m.
Actuation temperature - 57°С, 68°С , 79°С, 93°С.
Bulb of standard response - 5 mm, of fast response - 3mm
Thread - 1/2 inches
Finish - without cover (bronze), with cover (nickel, white)
Weight - 0,08 kg
Overall dimensions - 60х42 mm

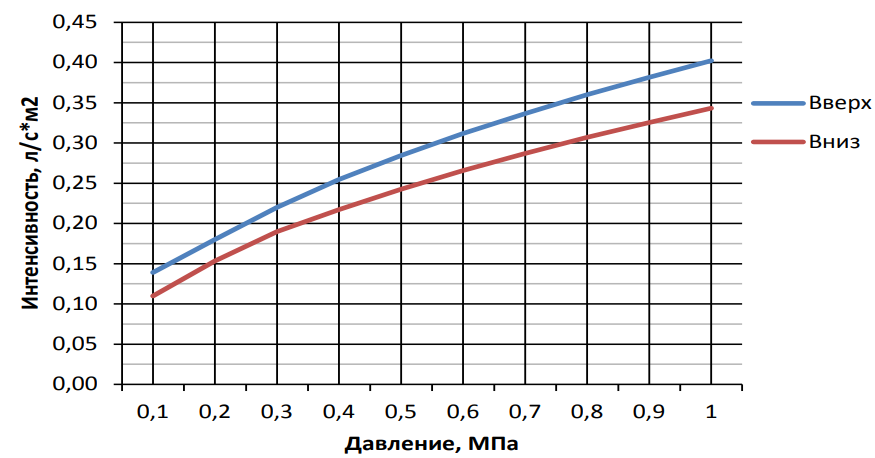

Diagram of irrigation intensity dependence on pressure at application of water and water solutions with capacity factor K=0.71 on 12 m2 protected area
Installation height 2,5m for upright sprinkler

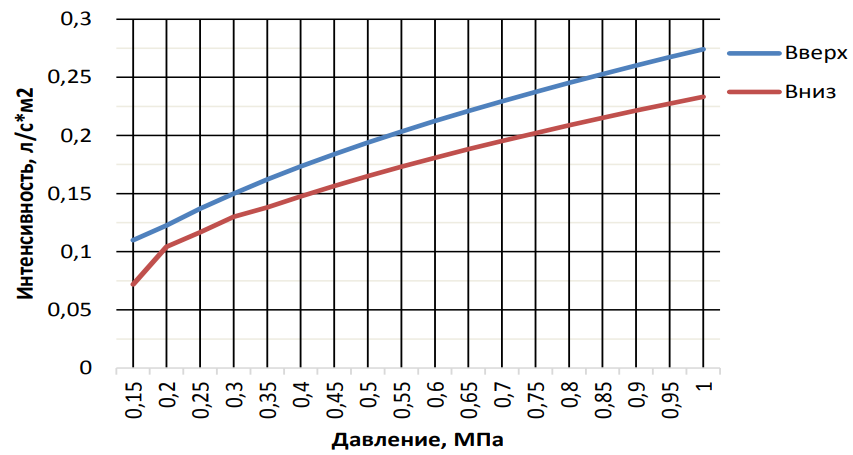

Diagram of irrigation intensity dependence on pressure at application of foam and foam solutions with capacity factor K=0.71 on 12 m2
Installation height 2,5m for upright sprinkler

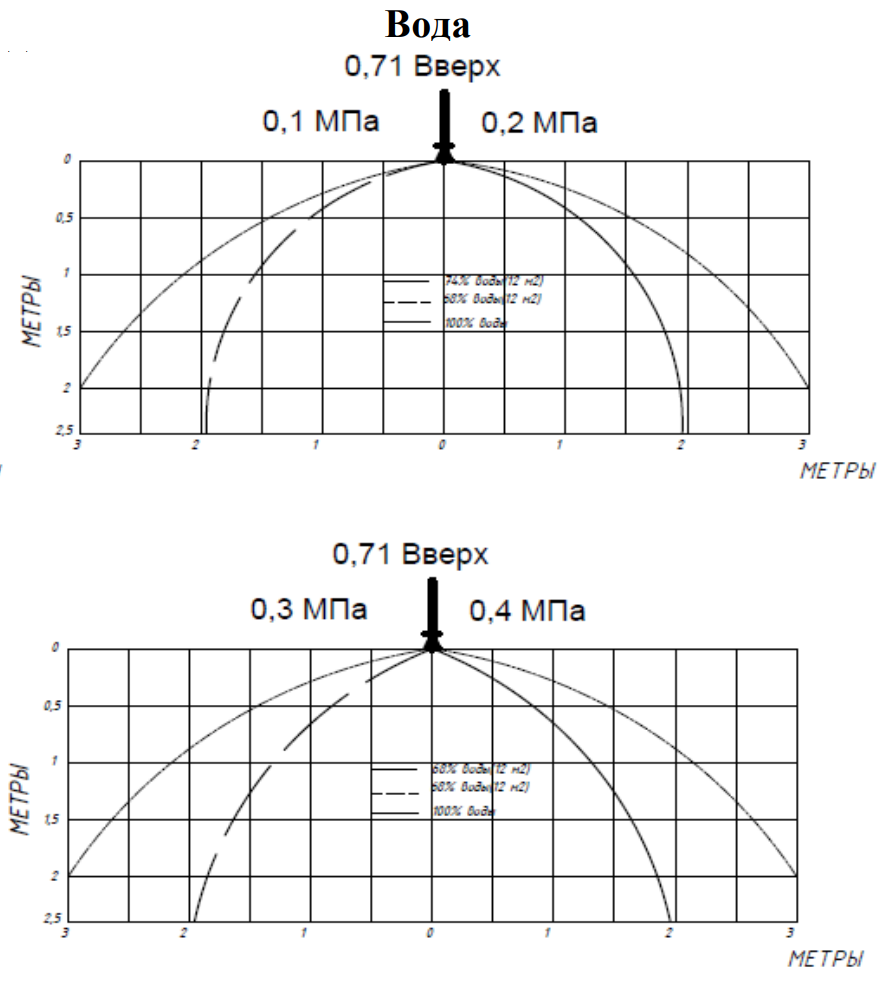

Sprinkler maps - water (water solutions)

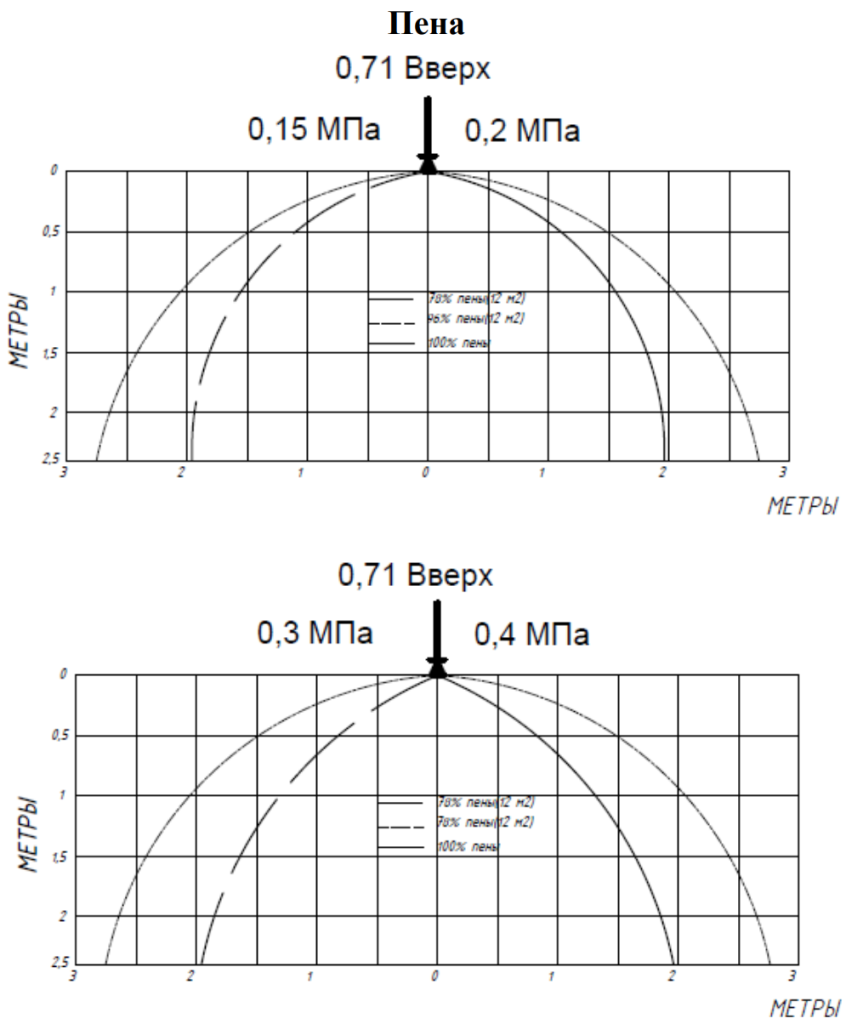

Sprinkler maps - foam (foam solutions)
Characteristics
Atomizer weight | 0,08 kg |
Connecting thread | 1/2 дюйма |
Dimensions | 60х42 mm |
Drencher or Sprinkler | Sprinkler |
Installation orientation | Upright |
K-factor | 9,5 (133) |
Model | CУО0-РВо(д) 0,6-R1/2 /Р57 (68, 79, 93).В3 Aqua-Gefest |
Performance factor | 0,71 |
Sprinkler flask diameter | 3 мм, 5 мм |
Sprinkler response temperature | 57°С, 68°С , 79°С, 93°С |
