360.00 rub.
Description
Foam/water standard sprinklers "Aqua-Gefest" are implemented in automatic extinguishing.
Technical features

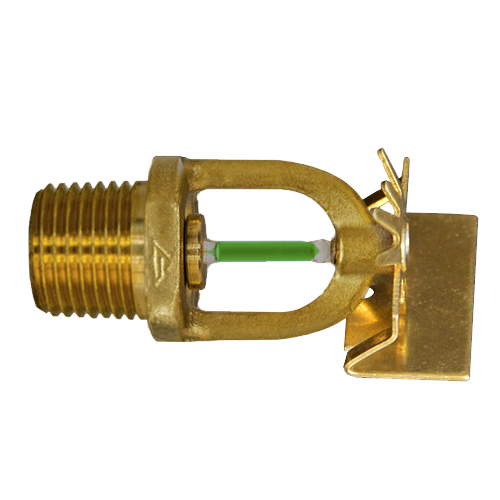

Side-wall sprinkler
K-factor - 0.35
Protected area - not less than 12 sq.m.
Actuation temperature - 57°С, 68°С , 79°С, 93°С.
Bulb of standard response - 5 mm, of fast response - 3mm
Thread - 1/2 inches
Finish - without cover (bronze), with cover (nickel, white)
Weight - 0,08 kg
Overall dimensions - 64х42 mm.
Technical features
Side-wall sprinkler
K-factor - 0.35
Protected area - not less than 12 sq.m.
Actuation temperature - 57°С, 68°С , 79°С, 93°С.
Bulb of standard response - 5 mm, of fast response - 3mm
Thread - 1/2 inches
Finish - without cover (bronze), with cover (nickel, white)
Weight - 0,08 kg
Overall dimensions - 64х42 mm.

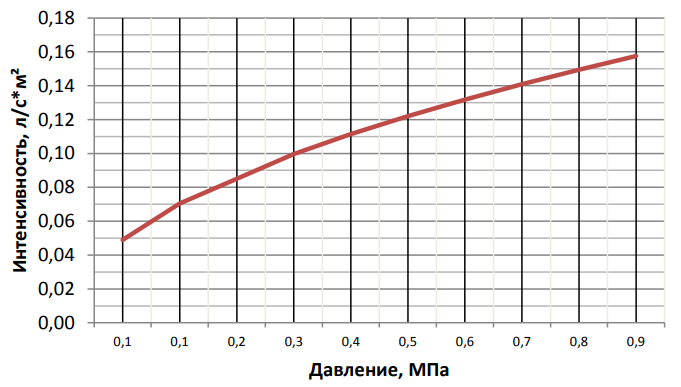

Diagram of irrigation intensity dependence on pressure at application of water and water solutions with capacity factor К = 0,35/57/4,0 on 12 m2 protected area
Installation height 2,5m for upright sprinkler

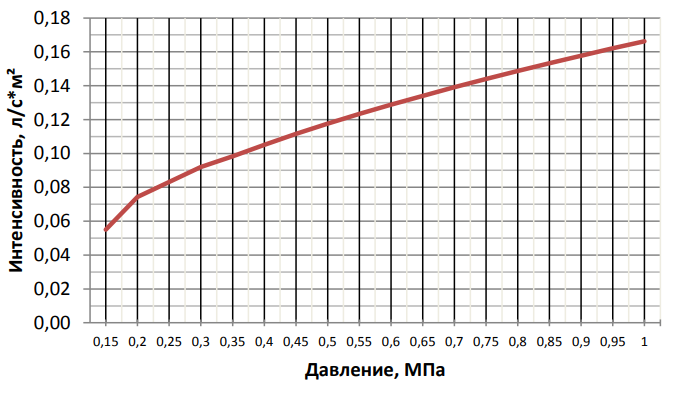

Diagram of irrigation intensity dependence on pressure at application of foam and foam solutions with capacity factor K=К = 0,35/57/4,0 on 12 m2
Installation height 2,5m for upright sprinkler

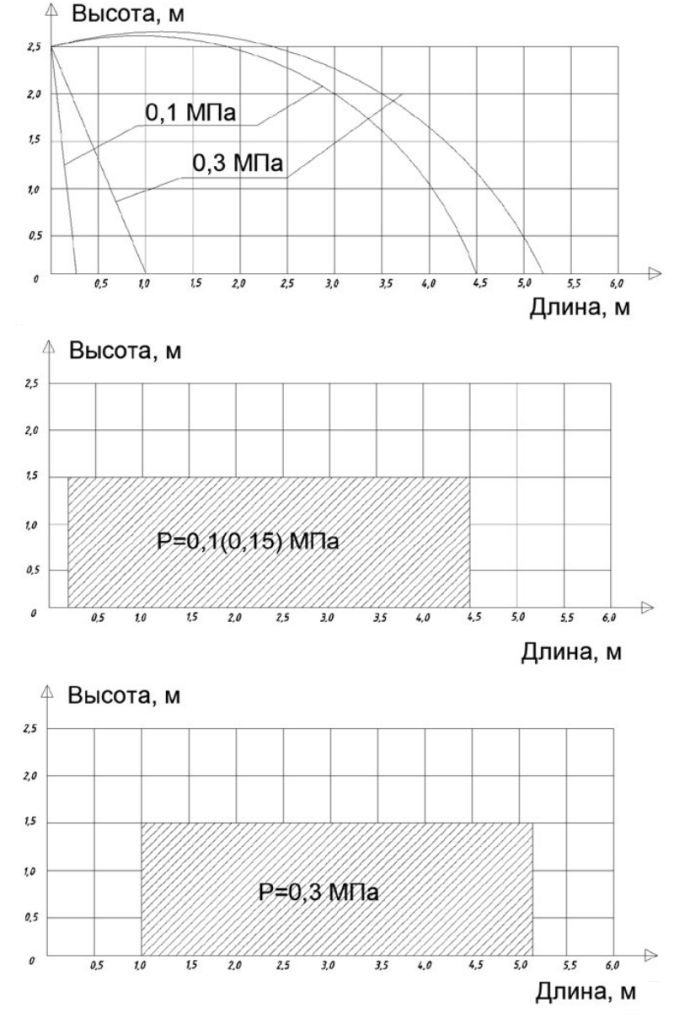

Sprinkler maps - water (water solutions) and foam (foam solutions)
Characteristics
| Atomizer weight | 0,08 kg |
| Dimensions | 60 x 42 mm |
| Drencher or Sprinkler | Sprinkler |
| Installation orientation | Horizontal |
| K-factor | 4,6 (66,3) |
| Model | СУ01-РГо(д)0,35-R1/2/P57(68, 79, 93).B2-Aqua-Gefest |
| Outlet diameter | 9,4 mm |
| Performance factor | 0,35 |
| Protected area | 12 м2 |
| Sprinkler flask diameter | 3 or 5 mm |
| Sprinkler response temperature | 57°С, 68°С , 79°С, 93°С |
