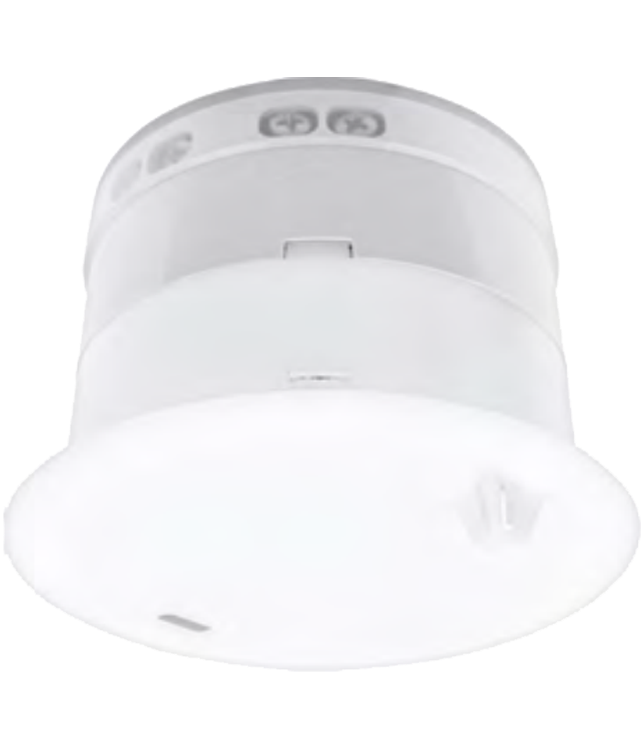

Concealed standard sprinklers “Aqua-Gefest” К = 0,3/57/4,0 pendent.
Marking
СЭВК0-РНо(д)0,3-R1/2/Р57(68, 79, 93).В2-"Aqua-Gefest"
Features
Concealed standard sprinklers “Aqua-Gefest” are used in automatic extinguishing units for extinguishing or localization of fires.
Concealed standard sprinklers “Aqua-Gefest” are activated via electrical activation.
For concealed installation a special escutcheon is used, which makes sprinklers nearly invisible indoors.
All types of “Aqua-Gefest” concealed sprinklers can be manufactured with electrical activation or with electrical activation and monitoring of activation.
Approvals
Sprinklers are certified for compliance with the technical regulations of the Eurasian Economic Union: TR EAEU 043/2017 "On requirements for fire safety equipment and fire-fighting equipment".
Technical parameters
Protected area | 12m2 |
K--Factor (Russian) | 0,3 |
Actuation temperature |
57°С, 68°С , 79°С, 93°С |
Sprinkler flask diameter |
2,5 mm, 3 mm |
Output port diameter | 9,4 mm |
Operating pressure | 0,1-1,0 MPa |
Heat inertia index: bulb diameter 2,5 mm bulb diameter 3 mm |
≤ 45 (m·с) 1/2 ≤ 50 (m·с) 1/2 |
Irrigation intensity at an installation height of 2.5 m and a pressure of 0,1 MPa |
0,048 |
Irrigation intensity at an installation height of 2.5 m and a pressure of 0,3 MPa | 0,088 |
Thread |
1/2 inches |
Overall dimensions |
108х90 mm |
Weight |
0,215 kg |
K--Factor, GPM/PSI (LPM/bar) |
4,0 (57) |

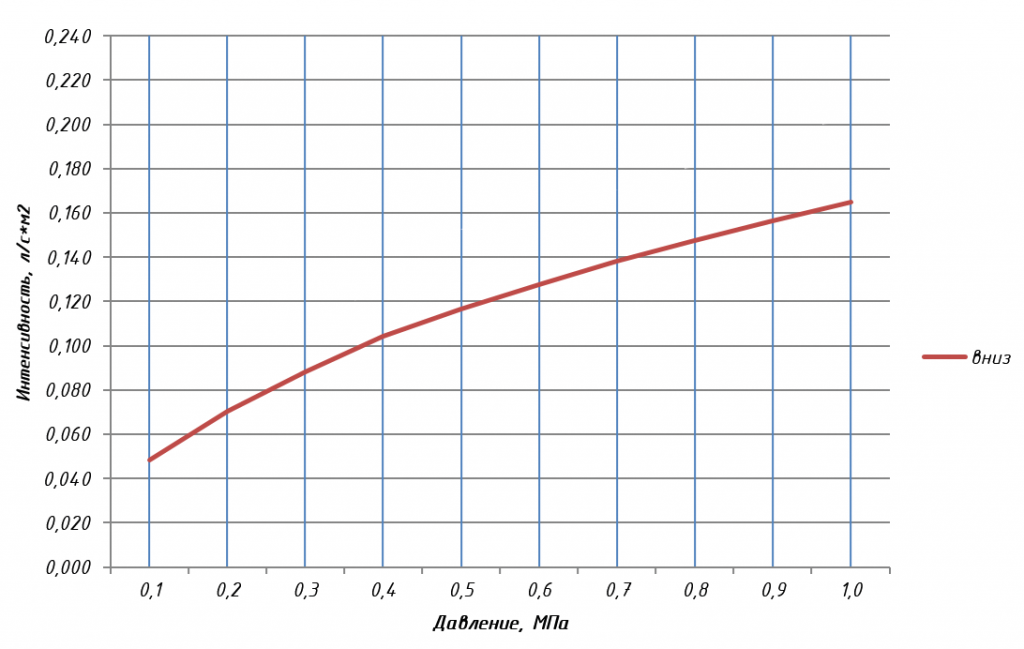

Diagram of the irrigation intensity dependence on pressure for standard concealed pendent sprinklers with capacity factor K = 0.3 on the protected area of 12m2

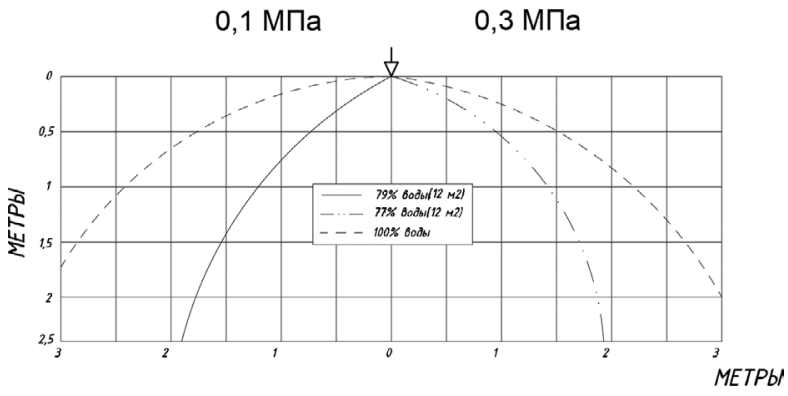

Drawing of irrigation intensity for concealed standard sprinklers “Aqua-Gefest” pendent К = 0,3/57/4,0
Installation height – 2.5 m.
Atomizer weight | 0,215 |
Connecting thread | 1/2 inches |
Dimensions | 108х90 |
Drencher or Sprinkler | Sprinkler |
Installation orientation | Pendent |
K-factor | 4,0 (57) |
Model | СЭВК0-РНо(д)0,3-R1/2/Р57(68, 79, 93).В2-"Aqua-Gefest" |
Outlet diameter | 9,4 mm |
Performance factor | 0,3 |
Protected area | 12 m2 |
Sprinkler flask diameter | 2,5 mm? 3 mm |
