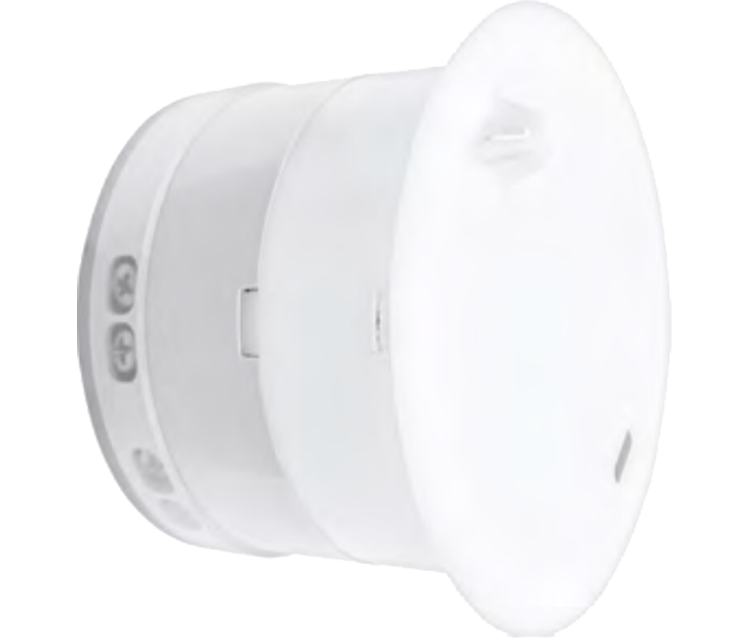

Concealed standard sprinklers “Aqua-Gefest” К = 0,42/80/5,5 horizontal.
Marking
СЭВК1-РГо(д)0,42-R1/2/Р57(68, 79, 93).В2 -"Aqua-Gefest"
Features
Concealed standard sprinklers “Aqua-Gefest” are used in automatic extinguishing units for extinguishing or localization of fires.
Concealed standard sprinklers “Aqua-Gefest” are activated via electrical activation.
For concealed installation a special escutcheon is used, which makes sprinklers nearly invisible indoors.
All types of “Aqua-Gefest” concealed sprinklers can be manufactured with electrical activation or with electrical activation and monitoring of activation.
Approvals
Sprinklers are certified for compliance with the technical regulations of the Eurasian Economic Union: TR EAEU 043/2017 "On requirements for fire safety equipment and fire-fighting equipment".
Technical parameters
Protected area | 12m2 |
K--Factor (Russian) | 0,42 |
Actuation temperature |
57°С, 68°С , 79°С, 93°С |
Sprinkler flask diameter |
2,5 mm, 3 mm |
Output port diameter | 11 mm |
Operating pressure | 0,1-1,0 MPa |
Heat inertia index: bulb diameter 2,5 mm bulb diameter 3 mm |
≤ 45 (m·с) 1/2 ≤ 50 (m·с) 1/2 |
Интенсивность орошения водой при высоте установки 2,5 м и давлении 0,1 МПа |
0,075 |
Интенсивность орошения водой при высоте установки 2,5 м и давлении 0,3 МПа |
0,092 |
Thread |
1/2 inches |
Overall dimensions |
108х90 mm |
Weight |
0,215 kg |
К – фактор, GPM/PSI (LPM/bar) |
5,5 (80) |

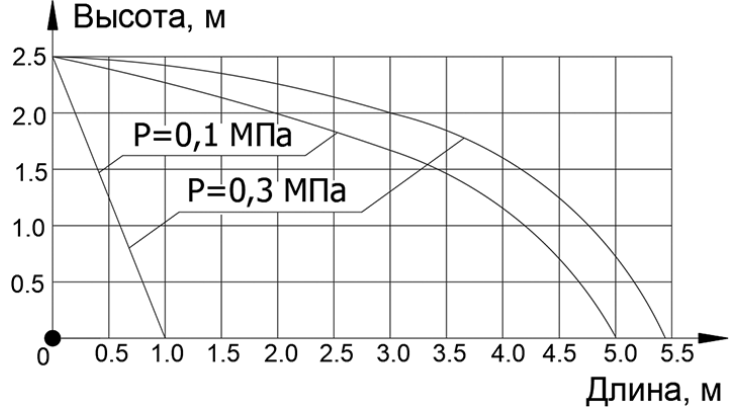

Drawing of irrigation intensity for concealed standard sprinklers “Aqua-Gefest” horizontal К = 0,42/80/5,5
Installation height – 2.5 m.
Atomizer weight | 0,215 |
Connecting thread | 1/2 inches |
Dimensions | 108х90 |
Drencher or Sprinkler | Sprinkler |
Installation orientation | Horizontal |
K-factor | 5,5 (80) |
Model | СЭВК1-РГо(д)0,42-R1/2/Р57(68, 79, 93).В2 -"Aqua-Gefest" |
Outlet diameter | 11 mm |
Performance factor | 0,42 |
Protected area | 12 m2 |
Sprinkler flask diameter | 2,5 mm, 3 mm |
