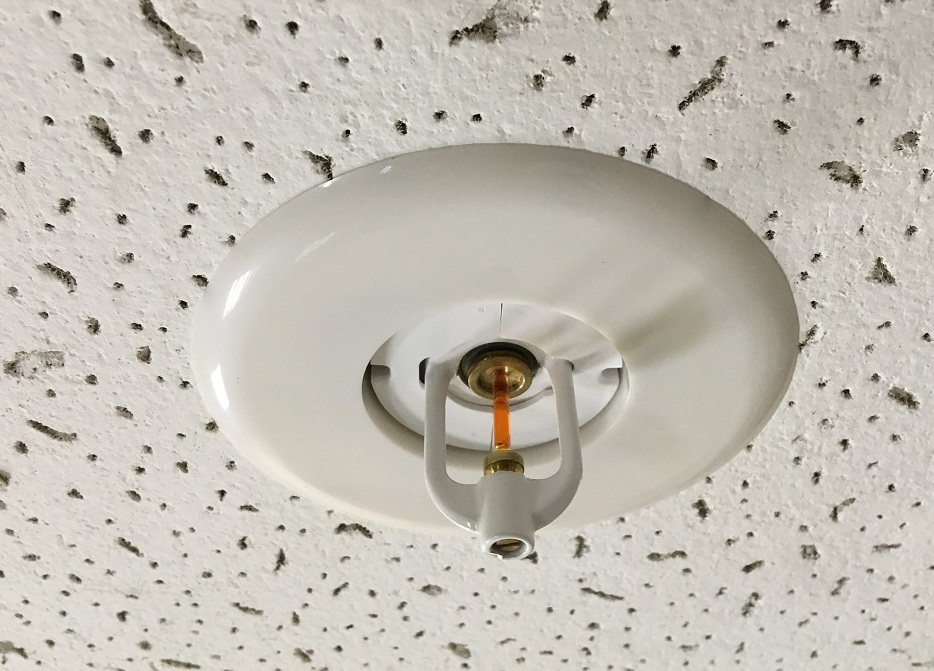

The advantages of the new "Gefest" shaped escutcheon for flush installation of sprinklers have already been appreciated by the first customers. The escutcheon is designed to decorate suspended ceilings in the areas of mounting holes for sprinklers.
Escutcheon allows for the installation or dismantling of the ceiling without removing the sprinklers, as well as to produce deeper mounting sprinklers by installing them into the recessed escutcheon with adjustable size of deepening to 30 mm.
All this greatly simplifies the work during construction and repair, makes it possible to "recess" sprinklers, freeing the ceiling from the protruding parts, creating additional opportunities for design space.
The escutcheon mounting element consists of two detachable parts, this design solution allows for easy installation of the plinth after installation of sprinklers and a suspended ceiling, it is easy to dismantle it without removing the sprinklers themselves.
Whereas screw-on plinths significantly slow down and complicate installation and dismantling.
The design of the escutcheon's recess adjustment mechanism ensures that it will remain securely in place throughout its entire service life. And also allows you to hide possible defects in the color sprinklers, caused by their careless installation.
The escutcheon is made of white ABS plastic and has a glossy surface. We are ready to offer plinths shaped "Gefest" for flush installation of sprinklers painted in any color from RAL palette.
The unique design of the socle allows you to use it with most sprinklers known manufacturers with connecting thread R1/2, including when used as a supply fixture elements of flexible liner.
And the low cost of a new shaped escutcheon Gefest" makes it possible to reduce the cost of repair and construction work.
Features shaped plinth "Gefest" for in-depth installation of sprinklers:
- The possibility of installation after the installation of sprinklers and suspended ceiling.
- Reliable fixation at any size of depth of the sprinklers.
- Wide adjustable range of fill depths.
- Can be removed without dismantling the sprinklers.
- Easy installation and therefore fast installation speed.
Translated with www.DeepL.com/Translator (free version)
Escutcheon for flush installation of sprinklers
Regulated escutcheon is used for installation of sprinklers in buildings with hanging ceilings. It covers an installation hole, optically planes differences between the height levels of installed levels.
