336.00 rub.
Description
Foam/water standard sprinklers "Aqua-Gefest" are implemented in automatic extinguishing.
Technical features
Upright sprinkler
K-factor - 0.3 (57)
Protected area - not less than 12 sq.m.
Actuation temperature - 57°С, 68°С , 79°С, 93°С.
Flask of standard response - 5 mm, of fast response - 3mm
Thread - 1/2 inches
Color - without cover (bronze), with cover (nickel, white)
Weight - 0,08 kg
Overall dimensions - 60х42 mm
Technical features
Upright sprinkler
K-factor - 0.3 (57)
Protected area - not less than 12 sq.m.
Actuation temperature - 57°С, 68°С , 79°С, 93°С.
Flask of standard response - 5 mm, of fast response - 3mm
Thread - 1/2 inches
Color - without cover (bronze), with cover (nickel, white)
Weight - 0,08 kg
Overall dimensions - 60х42 mm
Diagram of irrigation intensity dependence on pressure at application of water and water solutions with capacity factor K=0.3 on 12 m2 protected area
Installation height 2,5m for upright sprinkler
Diagram of irrigation intensity dependence on pressure at application of foam and foam solutions with capacity factor K=0.3 on 12 m2
Installation height 2,5m for upright sprinkler

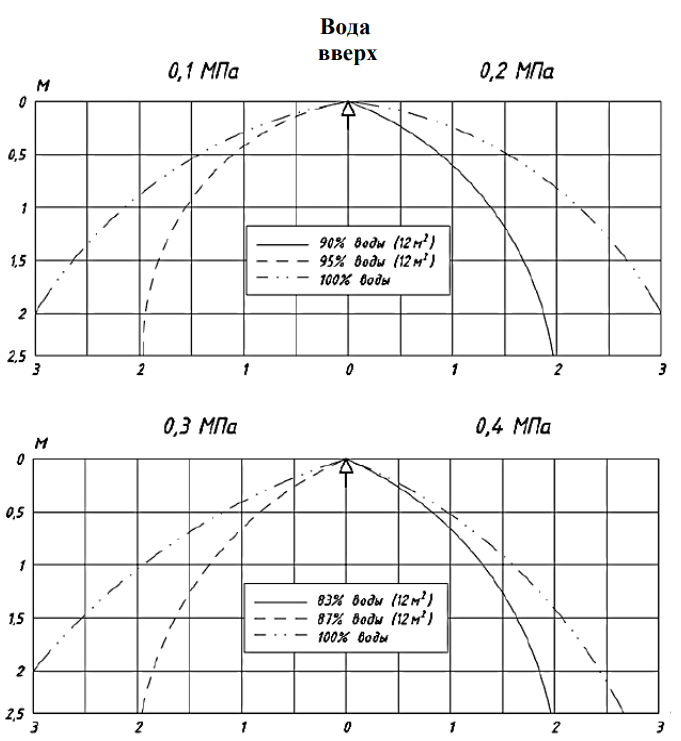

Sprinkler maps - water (water solutions)

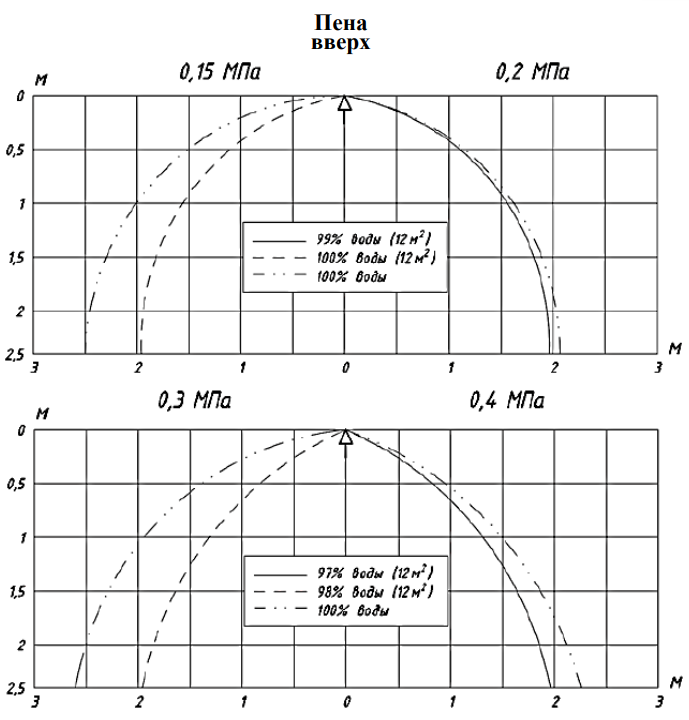

Sprinkler maps - foam (foam solutions)
Characteristics
| Performance factor | 0,3 |
| Dimensions | 60 x 42 mm |
| Sprinkler flask diameter | 3 or 5 mm |
| Drencher or Sprinkler | Sprinkler |
| Protected area | 12 м2 |
| K-factor | 4,0 (57) |
| Atomizer weight | 0,08 kg |
| Model | CУО0-РВо(д) 0,3-R1/2 /Р57 (68, 79, 93).В3 Aqua-Gefest |
| Installation orientation | Upright |
| Sprinkler response temperature | 57°С, 68°С , 79°С, 93°С |
| languages | English |
Docs
Certificate TR EAEU
946 Кб
Модели REVIT оросители ОН
170.2 Мб
