Description
Foam/water standard sprinklers "Aqua-Gefest" are implemented in automatic extinguishing.
Technical features

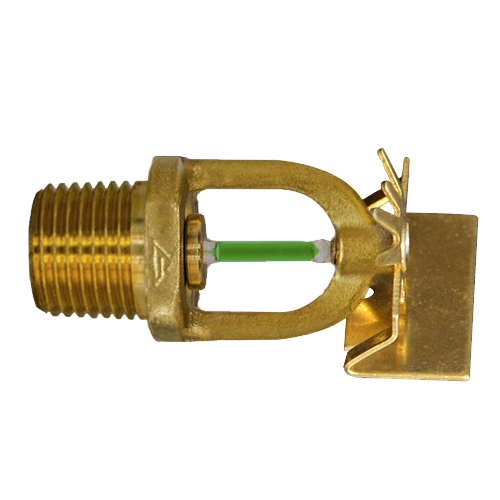

Side-wall sprinkler
K-factor - 0.42
Protected area - not less than 12 sq.m.
Actuation temperature - 57°С, 68°С , 79°С, 93°С.
Bulb of standard response - 5 mm, of fast response - 3mm
Thread - 1/2 inches
Finish - without cover (bronze), with cover (nickel, white)
Weight - 0,08 kg
Overall dimensions - 64х42 mm.
Technical features
Side-wall sprinkler
K-factor - 0.42
Protected area - not less than 12 sq.m.
Actuation temperature - 57°С, 68°С , 79°С, 93°С.
Bulb of standard response - 5 mm, of fast response - 3mm
Thread - 1/2 inches
Finish - without cover (bronze), with cover (nickel, white)
Weight - 0,08 kg
Overall dimensions - 64х42 mm.

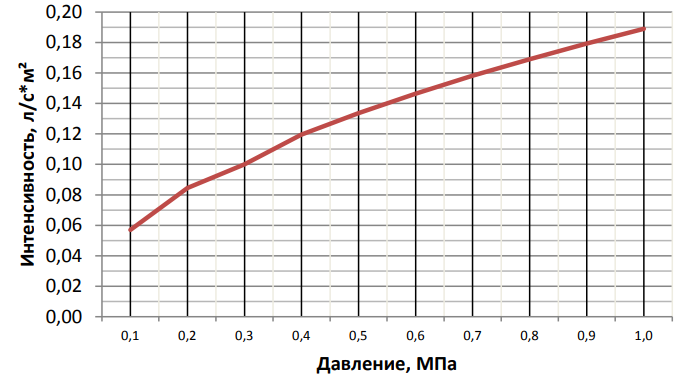

Diagram of irrigation intensity dependence on pressure at application of water and water solutions on 9,6 m2 protected area

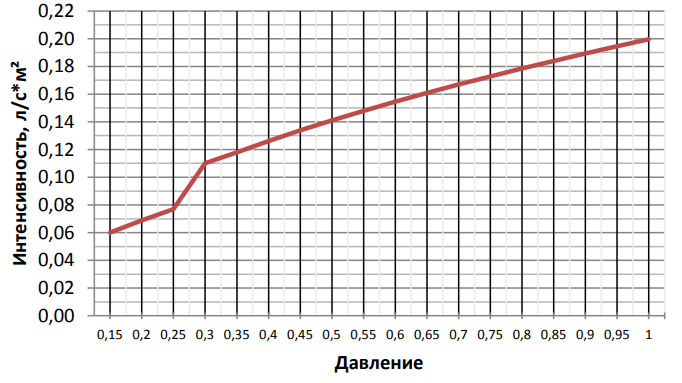

Diagram of irrigation intensity dependence on pressure at application of foam and foam solutions on 9,6 m2 protected area

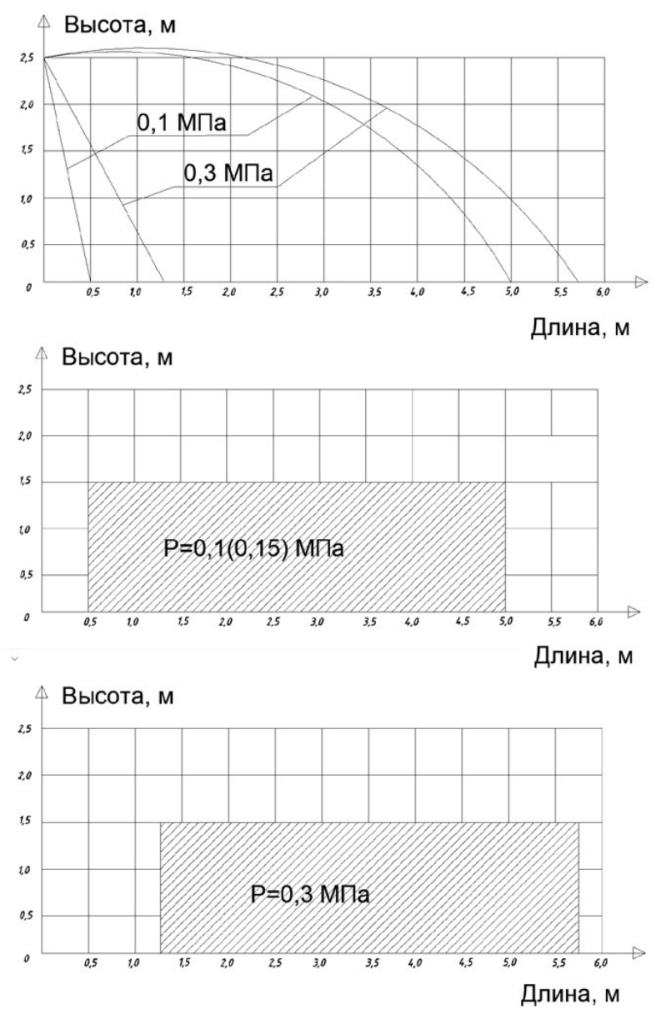

Sprinkler maps - water (water solutions) and foam (foam solutions) K=0.42/80/5.5
Characteristics
| Performance factor | 0,42 |
| Dimensions | 60 x 30 mm |
| Outlet diameter | 11 mm |
| Sprinkler flask diameter | 3 or 5 mm |
| Drencher or Sprinkler | Sprinkler |
| Protected area | 12 м2 |
| K-factor | 5,5 (80) |
| Atomizer weight | 0,076 kg |
| Model | CУО1-РГо(д) 0,42-R1/2 /Р57 (68,93).В3 Aqua-Gefest |
| Installation orientation | Horizontal |
| Sprinkler response temperature | 57°С, 68°С , 79°С, 93°С |
| languages | English |
