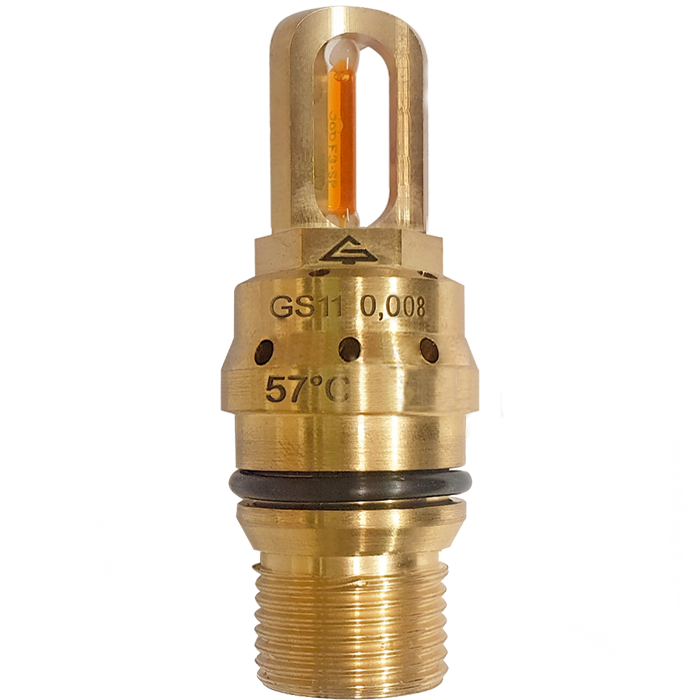

High pressure water-mist sprinklers К=0,008
СВS0-ПНо(д)0,008 – М20х1,5/Р57(68, 93).В3-«GS11»-Aqua-Gefest
Sprinklers "Aqua-Gefest" are implemented in automatic extinguishing units for water sprinkling and spreading it along the protected area to extinguish fire hotbeds and their localization and also for creating water screens.
Extinguishing via water-mist sprinklers is based on the liquidation of the fire by sprinkles of water with effective diameter not more than 150 micron.
Technical characteristics
K--Factor | 0,008 |
Working pressure, MPa | 8-12 |
Actuation temperature |
57°С, 68°С, 93°С |
Max. height of installation GS11(3,5,7,9) corner 120°, m | 3 |
Max. protected area GS11(3,5,7,9) corner 120° at the installation height 2,5 m, м2 | 9 |
Коэффициент тепловой инерционности не более, (m·s) ½ | 40 |
Thread | М20х1,5 |
Size, mm | 70х30 |
Weight, kg |
0,13 |
Characteristics
Atomizer weight | 0,13 кg |
Connecting thread | 1/2 |
Drencher or Sprinkler | Sprinkler |
Installation orientation | Pendent |
Max. installation height of nozzles | 3 m |
Performance factor | 0,008 |
Protected area | 9 m2 |
Sprinkler response temperature | 57°С, 68°С , 79°С, 93°С |
