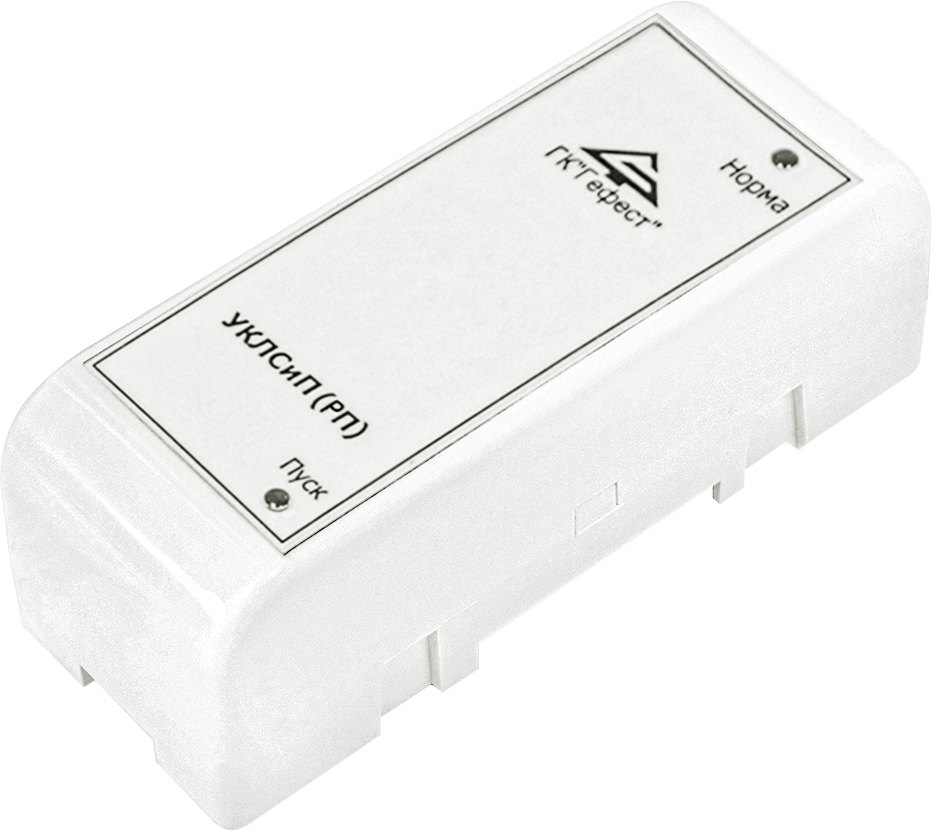

UKLSiP(S) serves for switching on/off power devices with 250V and for monitoring of circuit continuity.
ULSiP (S)220 controls:
- smoke-/gas-removal installations;
- engineering equipment or other fire-safety devices;
- combined installations.
UKLSiP(S)220 can work:
- with PPU “Gefest”
- with any other PPU with supply current 12 – 24V
UKLSiP(S)220 provides:
- when receives “Start” signal switching on/off an actuation device, monitoring of reverse actuation devices with 220 supply current
- monitoring of workability of circuits connecting actuation deviceswith ULSiP (220)
- monitoring of 220V voltage availability in 50Hz circuit 220;
- forming of “Failure” signal by disconnection of contact of data output circuit.
Technical charasteristics:
|
Technical feature |
Value |
|
1 Parameters of actuation devices |
|
|
- feeding voltage |
(187–242) W, 50 Hz |
|
- current, not more |
3 А |
|
2 Parameters of external starting signal |
|
|
- voltage |
10,2–28 V |
|
- current in “Start” mode |
45 mА |
|
3. Current supplied from 220V (O and N clamps), not more |
6 mА |
|
4 Monitoring current of circuit od actuation devices |
1,2 mА |
|
5 Allowable load on «CV»: |
|
|
- voltage, not more |
= 60 V |
|
- current, not more |
0,1 А |
|
6 Cover protection degree (according to GOST 14254-69): |
|
|
- with top cap |
IP30 |
|
- without top cap |
IP20 |
|
7 Mass, not more |
0,15 kg |
|
8 Sizes |
106х42х37 mm |
|
9 Temperature range |
From –5 to +55°С |
|
10 Relative humidity |
93% (under +40°С) |
| Dimensions | 106х42х37 mm |
| Power supply: current, no more | 45 mА |
| Power supply: voltage | 187-242 В, 50 Hz |
| Sheath protection degree | IР30 |
| Temperature regime | from -5°С tо + 55°С |
| Weight | 0,15 kg |
