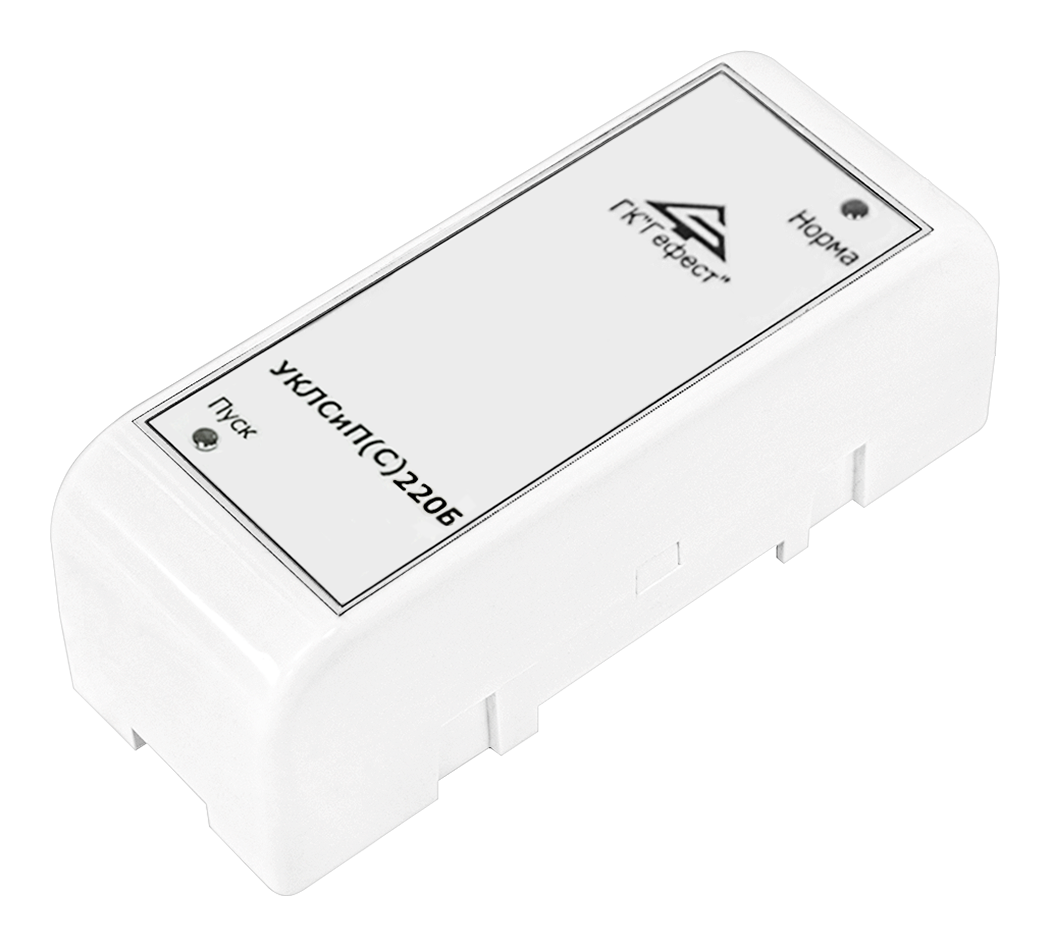

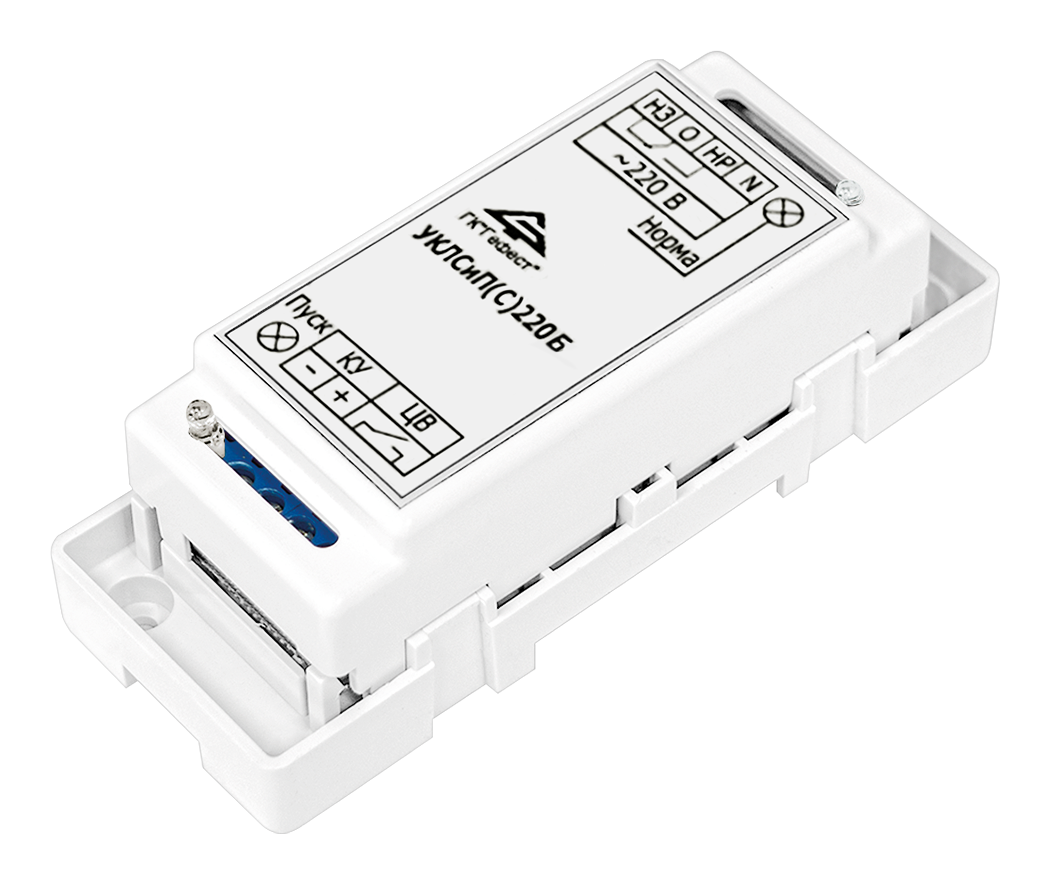

UKLSiP(S)220B is designed to control an electronically controlled reversing drive (for example, type BLE230) of:
• smoke/gas removal installations
• engineering equipment or other fire-safety devices
• combined installations
UKLSiP(S)220B can work:
• with PPU “Gefest” when connected to a communication line (LAN) with a control device of the Central Control Unit or UKLSiP (RP);
• under the control of a third-party control panel (PPKP) or fire control device (PPU), which generate the “Start” command by applying a constant voltage from 12 to 24 V.
UKLSiP(S)220B provides:
• on the "Start" command, control of a reversing actuator or drive (RA) powered by 230 V, 50 Hz;
• workability control (on a short circuit) of the circuit connecting the switched off section of the RA with UKLSiP(S)220B
• workability control (on breakage) of circuits of both sections connecting the RA with UKLSiP(S)220B;
• monitoring of 230V voltage availability in 50Hz circuit;
• forming of “Failure” signal by disconnection of contact of data output circuit.
When using the "Dry Contact Converter KSK" (hereinafter referred to as KSK), the generalized signal "Fault" can be broadcast over the LAN to the control device of the Central Control Unit or UKLSiP(RP).
Technical charasteristics:
Technical feature |
Value |
Parameters of actuation devices - feeding voltage
- current, not more |
(195–253) В, 50 Hz 2 А |
Parameters of external starting signal - voltage - current in “Start” mode |
10,2–28 V 16 mА |
Current supplied from 220V (L and N clamps), not more |
6 mА |
Actuator circuit control voltage, not more |
16 V |
Allowable load on «CV»: - voltage, not more
- current, not more |
60 V 0,1 А |
Cover protection degree:
- with top cap
- without top cap |
IP30
IP20 |
Mass, not more |
0,15 kg |
Sizes, not more |
109х42х37 mm |
Dimensions | 109х42х37 mm |
Power supply: current, no more | 16 mА |
Power supply: voltage | 10,2–28 В |
Sheath protection degree | IР30 |
Temperature regime | from -5°С tо + 55°С |
Weight | 0,15 kg |
