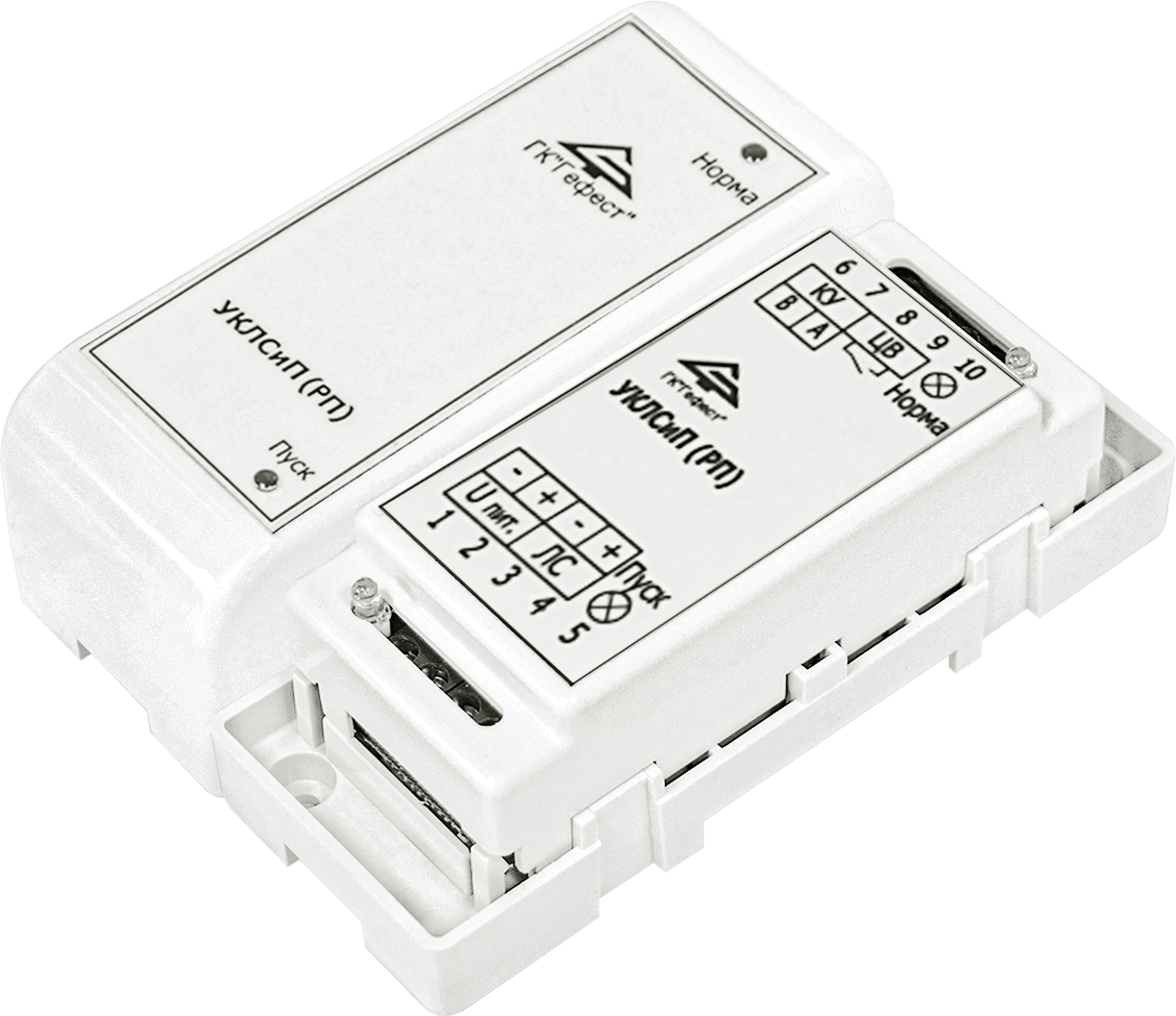

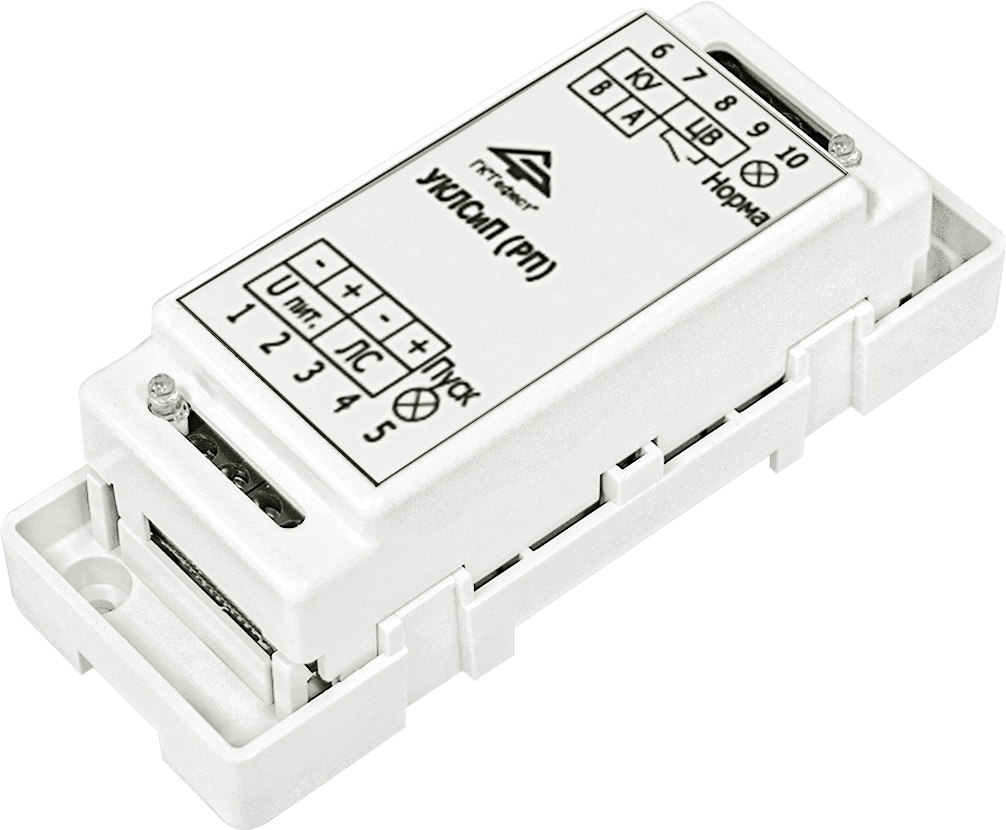

Connection lines and start control unit UKLSiP (RP)
UKLSiP(RP) is designed for control and monitoring of connection line with fire protection actuation devices including commutation and diagnostics devices (UK-D). Additionaly it provides the choice of switching on modes of actuation devices from “Start” signal.
UKLSiP(RP) is used together with different PPU for widening of their functional opportunities.
Provides:
• receiving and translation of “Start” command from superior devices to control objects
• monitoring of a connection line with monitoring objects for breakdown or short-circuit
• monitoring of constantly switched-on fire-safety technical devices
• monitoring of feeding voltage availability
• notification about failure to superior devices;
• light indication of «Norm» mode;
• alarm of “Failure” mode
Advantages:
• works under control of any monitoring device and also ASU-TP;
• provides continuous or synchronically discontinuous monitoring of annunciators;
• connection of objects in one monitoring line;
• high load capacity;
• wide range of feeding voltages (10-28 V);
• low energy consumption;
• protection from electromagnetic interference (installation near GSM navigator);
• simplicity of installation ;
• two types of installation: on standard 35mm DIN-rail and with self-tappers to solid surface;
• protected from short-curcuit
Type of connection line – double-wire
Electric supply of UKLSiP (RP) – from the external DC power supply with voltage (10..28) V. During the closure of UK-D devices in connection line, DC power supply for UKLSiP (RP) must be chosen with supply voltage from 20 to 28 V.;
Current intensity consumed by UKLSiP (RP) from the supply power unit – not more than 40 mA;
Max. current in the connection line;
During the implementation of “Start” command, not more than 2 A under the temperature not more than +40 and not more than 1,6 A under the temperature not more than +55C;
- In stand by conditions not more than 500 mA
Max. voltage and current trough contacts, forming the signal “Fail” to the receiving-control device (via interruption)
- DC voltage 60 V, current 0,1 A;
Environmental protection rate of covering
- With top cap – IP30
- Without top cap – IP20
- UK-D (01) keeps workability in the temperature range from -30C to +55C, relative humid limit of environment – 93% (under +40C)
Examples of usage of UKLSiP (RP)
Diagrams of implementation UKLSiP (RP) with some devices
