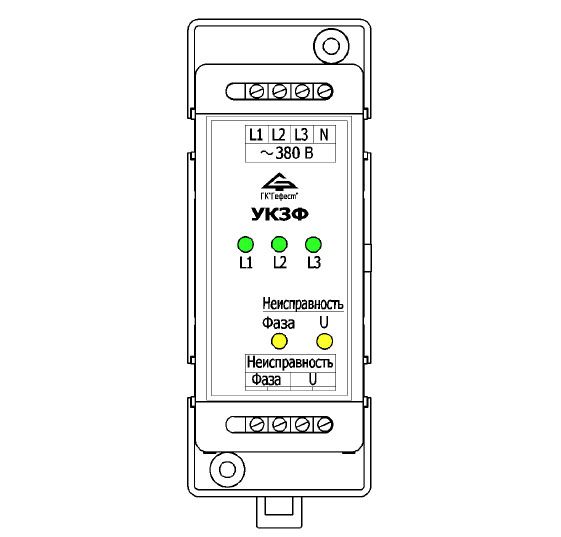

UK3F controls:
• voltage values in each phase of the network;
• the order of the phases of the network.
UK3F provides:
• formation of a "Fault" signal in the form of opening normally closed contacts of the "U" opto-relay at a reduced voltage in any phase of the network below a predetermined threshold;
• generation of the “Fault” signal in the form of opening of the normally closed contacts of the “Phase” opto-relay in case of violation of the order of the phases of the network.
Technical charasteristics:
|
Technical feature |
Value |
|
Parameters of actuation devices - feeding voltage - current, not more |
~230 V before 253 V |
|
Specified thresholds of controlled voltage: transition to the "Fault" state, not more transition to standby mode, not less |
198 V 205 V |
|
Own current consumption for each phase, not more |
3,5 mА
|
|
Optorelay contacts parameters (terminals "U" and "Phase"): maximum direct voltage maximum switching current |
60 V 0,1 А |
| Cover protection degree | IР20 |
|
Temperature range |
From –5 to +55°С |
|
Relative humidity (under +40°С) |
93 % |
| Sizes, not more | 109х42х37 mm |
| Dimensions | 109х42х37 mm |
| Power supply: current, no more | 3,5 мА |
| Power supply: voltage | ~230 В |
| Sheath protection degree | IР20 |
| Temperature regime | from –30 tо +55°С |
| Weight | 0,15 kg |
