vendor code УТ000018396
1267.00 rub.
Description

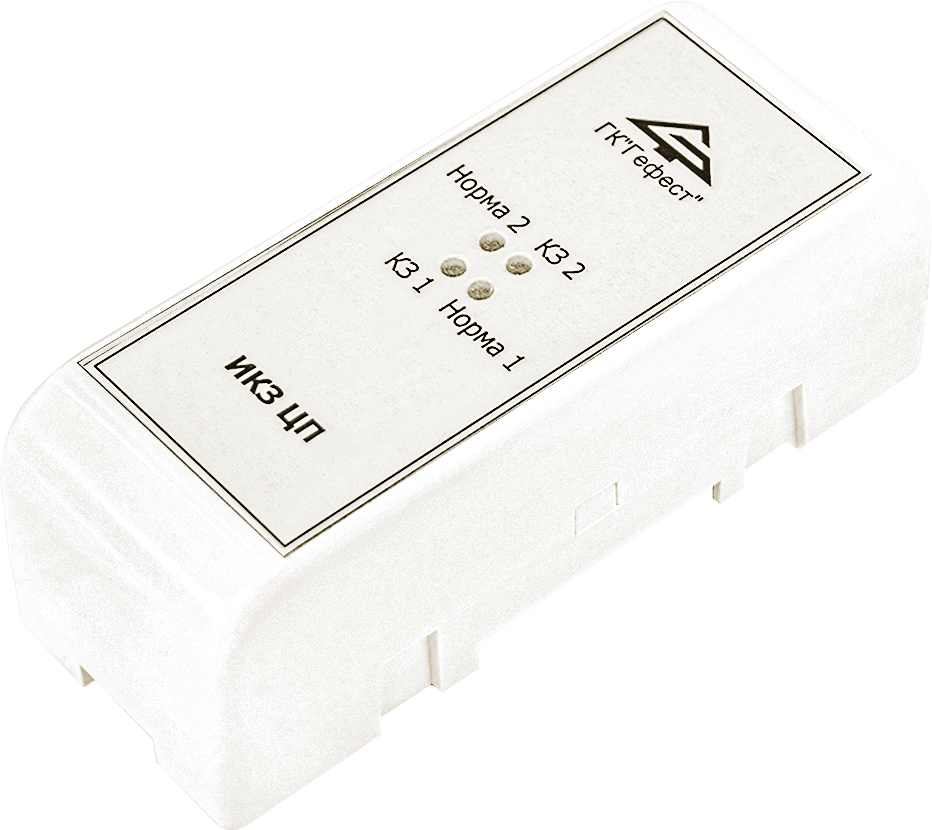

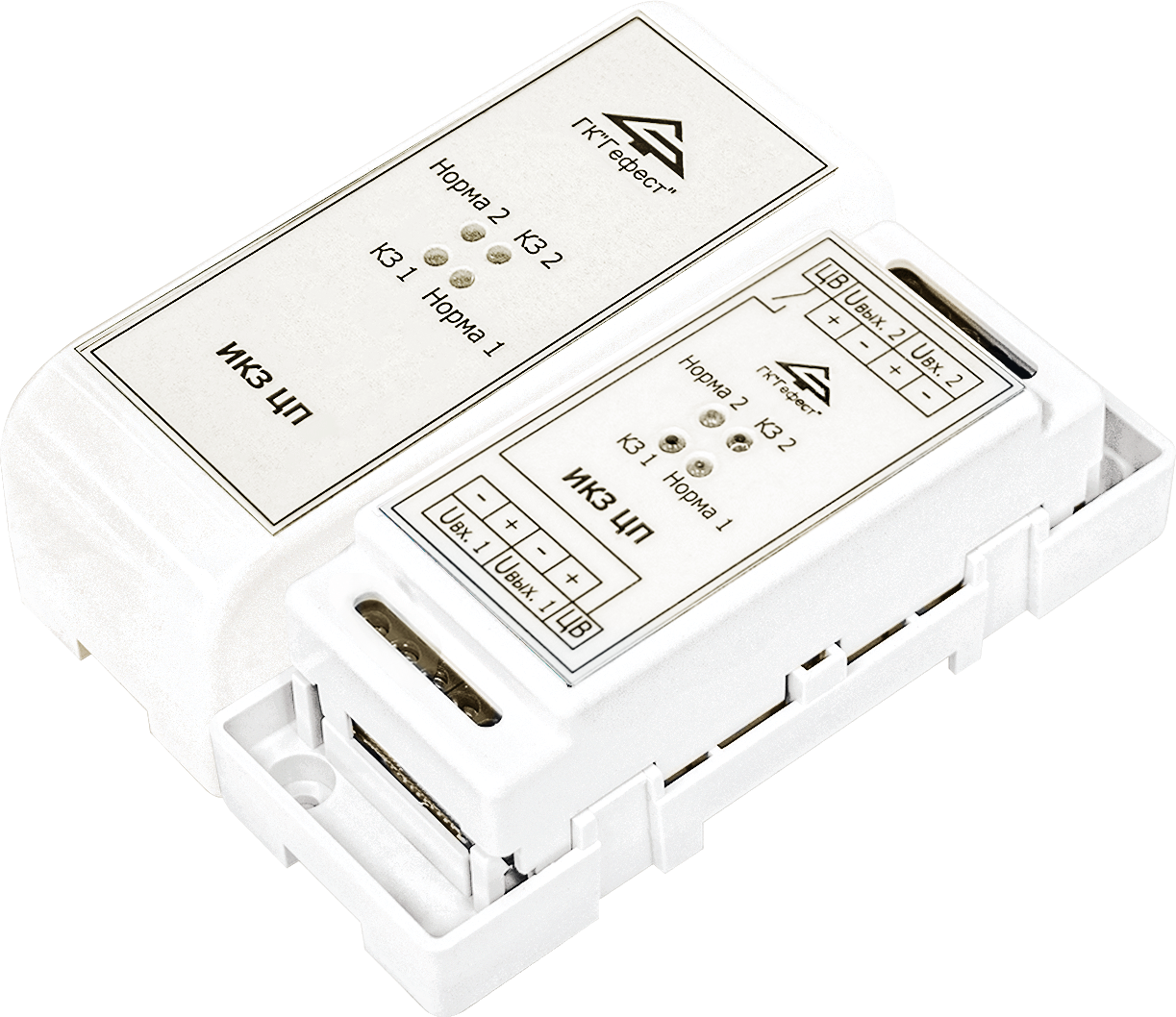

Short-circuit isolator of feeding circuits IKZ CP.
Fire alerting systems and systems of people evacuation control must work in the time period needed for completing the evacuation of people from the building
IKZ CP developed to prevent the short-circuit in loading of supply power units. IKZ CP isolates short circuit from a supply power unit for the time the circuit stays in this condition. IKZ CP has fast operation speed and protects supply power units from extra currents of SC. It automatically recovers supply in a circuit after shortcut removal. It can be used both as a part of PPU “Gefest” or independently.
Fire alerting systems and systems of people evacuation control must work in the time period needed for completing the evacuation of people from the building
“Fail” formed by the inner relay of IKZ CP is fixed.
Extra function of IKZ CP is power supply control in stand-by conditions. It’s allowed to use IKZ CP for developing of fire automation systems with remote power supply units.
Purpose
Main parameters and features

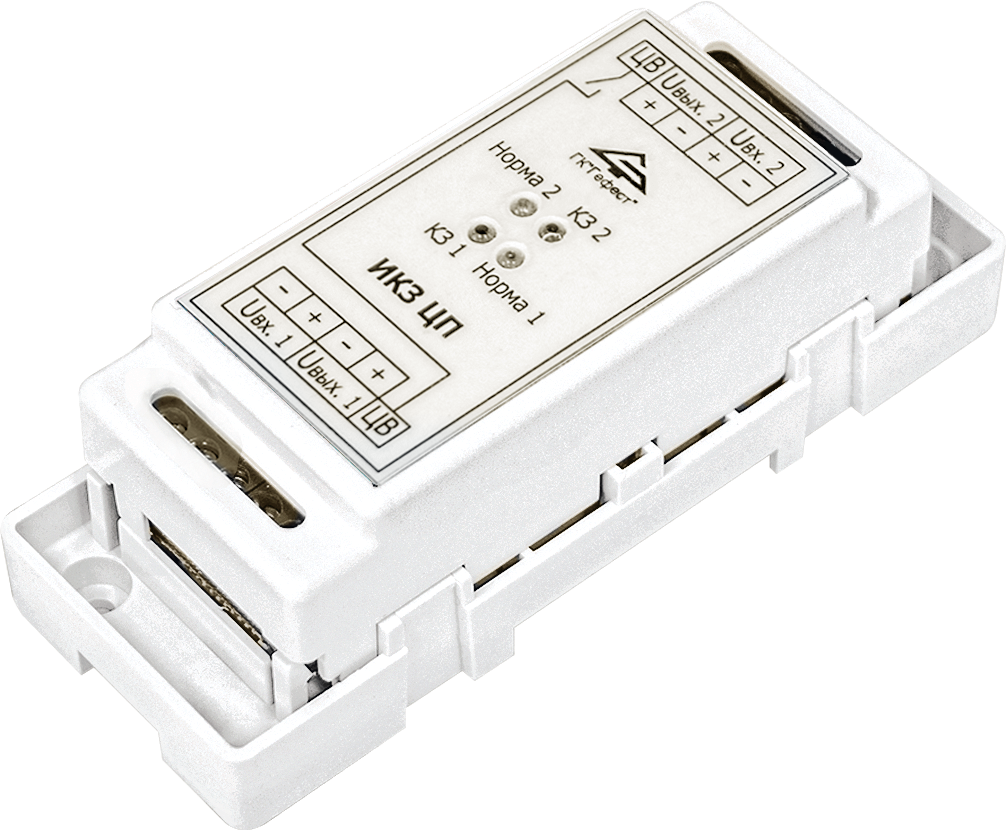

IKZ CP has two input circuits that are connected to the power supply and two output circuits for connecting two circuits of loadings supply. Output circuit of IKZ CP allows connecting the loading with capacity not more than 220 microfarad.
- Minimal commutation voltage – not less than 9 V
- Maximal commutation voltage – not more than 30 V
- Quantity of connected output lines – 2
- Current rate, used by SCI FC from the power supply – not more than 5 mA
- Maximal current, formed by SCI FC in output circuit – not more than 2,5 A
- Actuation current of SCI FC (short-current isolation) – from 2,6 to 2,9 A
- Protection rate of the cover from environment – IP-20
- Sizes – mm 90x40x40
- Weight – 150 g.
- IKZ CP saves workability at the temperature rate from -10 °С to +55 °С
- Relative humidity limit – 93% (when t=+40°С)
Notice: Manufacturing of IKZ CP with maximal output circuit current rate up to 5 A is possible by a customer’s order.
Characteristics
| Dimensions | 106х42х37 mm |
| Model | IKZ CP |
| Power supply: current, no more | 5 мА |
| Power supply: voltage | 9 В – 30 В. |
| Sheath protection degree | - IР30 |
| Temperature regime | from - 10 °С tо + 55 °С |
| Weight | 0,15 kg |
