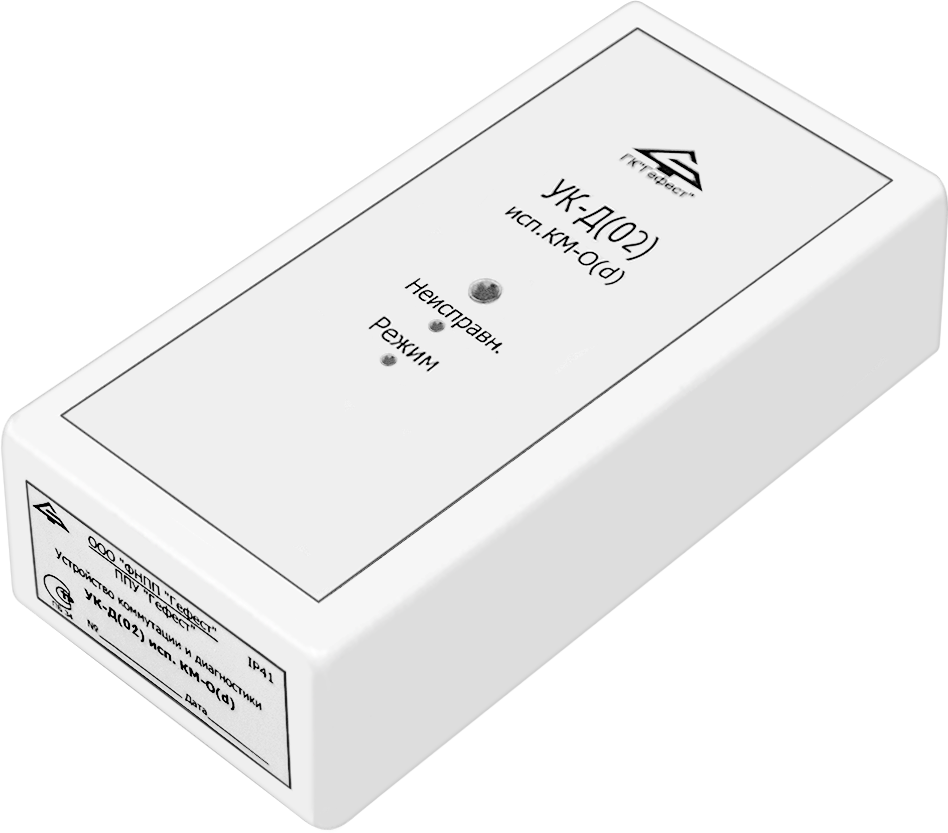

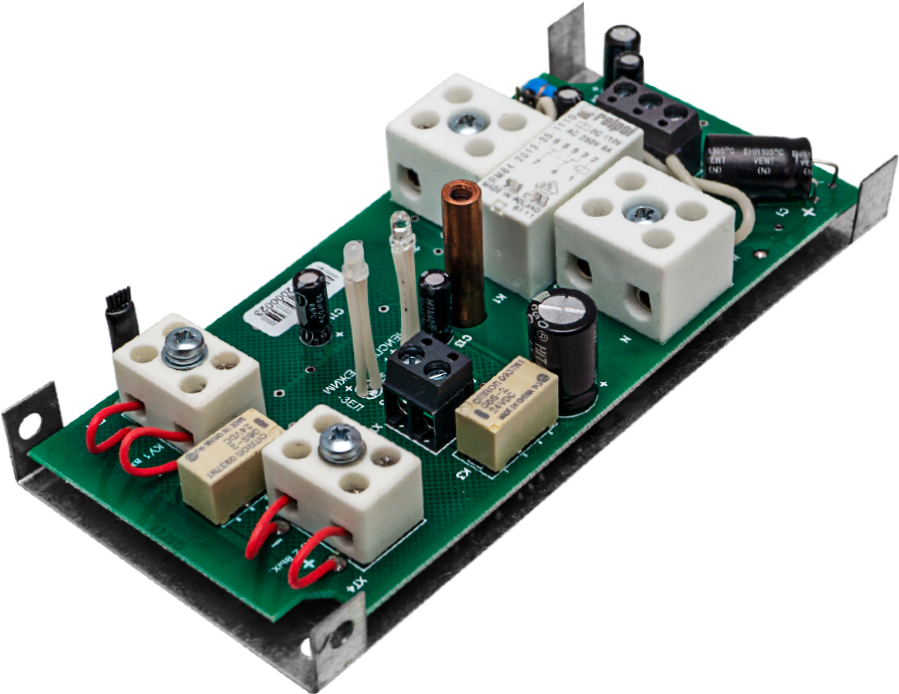

 исполение КМ-О плата.png "UK-D (02) without cover")
UK-D (02) is connected in a diagnose connection line of controlling device: either connection line start and control unit (basic) UKLSiP (B) or connection line start and control unit (relay-precision) UKLSiP (RP)
UK-D (02) is used to control a consistency of initially switched-off and initially switched-on and windings of actuating elements (AE) from the power circuit 220 V
UK-D (02) forms in CL "Norm" signal when working and actuating elements are connected. CU-D (02) forms in CL "Fail" signal when the winding of actuating device is damaged or the line is broken.
UK-D (02) has a starting relay via technological tumbler, fixed inside a device.
If the voltage polarity in CL was changes on the opposite ("Start" mode), the relay of voltage energizing or removal will be actuated with AE. During that the UK-D (02) relay will be blocked – this is necessary for holding AE in "Start" mode during a possible CL fail to UK-D (02)
NEW FEATURES: UK-D (02) has "trigger function", in other words after switching on start relay and removal of voltage from CL relay continues to be in switched-on conditions.
We draw your attention that such devices as UK-D (02) imp. KM-O and UKLSiP (S) were tested only with Belimo drives. No tests were done with other drives.
The device has "go-ahead" start mode in order to mount more UK-D (02) devices in CL of UKLSiP (B) or UKLSiP (RP). "Start" command is delivered in chain order and start relay has 100 ms delay in every following CU-D (02) actuation.
| 100-300 un. | 300-500 un. | 500-1000 un. | От 1000 un. |
| 720,00 | 705,00 | 690,00 |
Contract price |
| Consumption current | 5 мА - 8 мА |
| Dimensions | 145х72х37 mm |
| Power supply: current, no more | 5 mА - 8 mА |
| Sheath protection degree | IР41 |
| Temperature regime | from –40 °С tо +55 °С |
| Weight | 0,35 kg |
