44880.00 rub.
Description

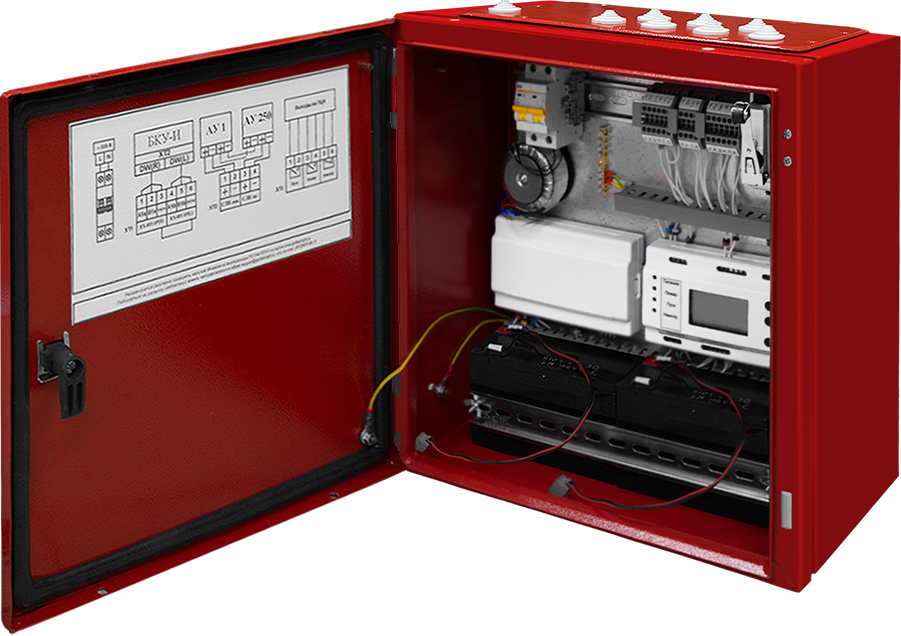

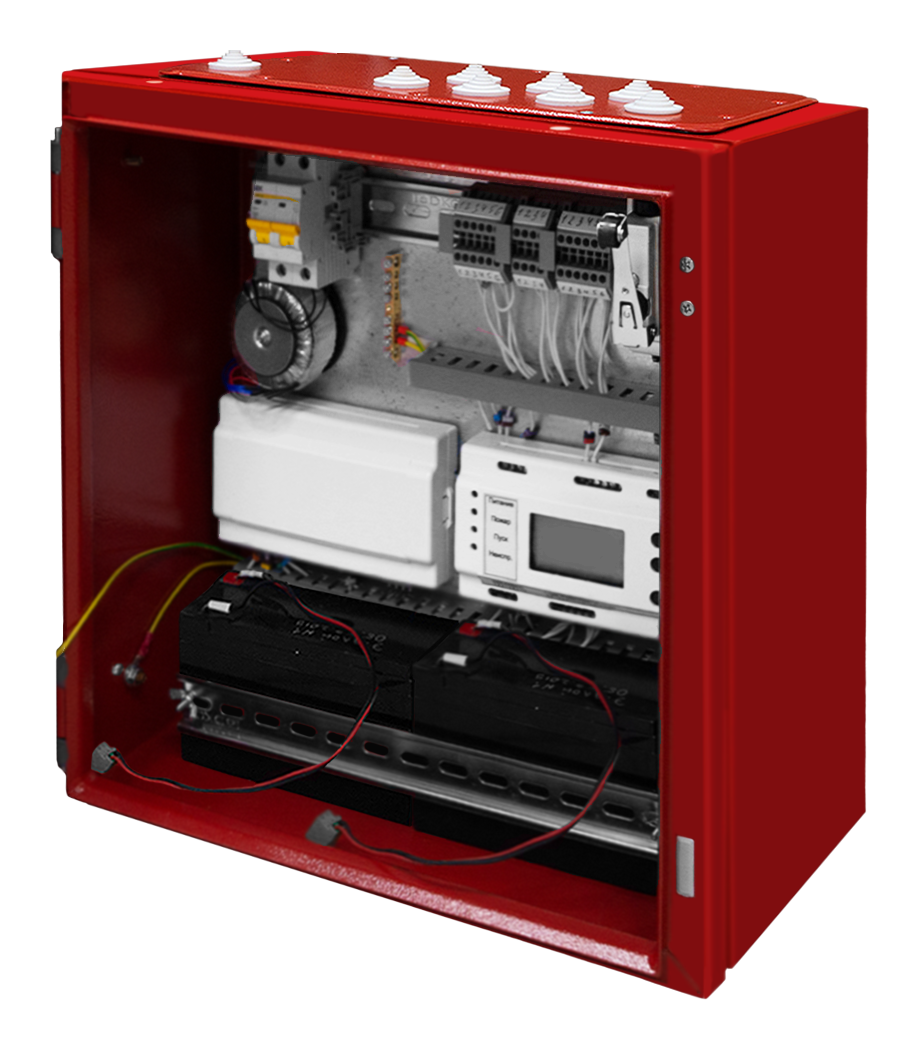

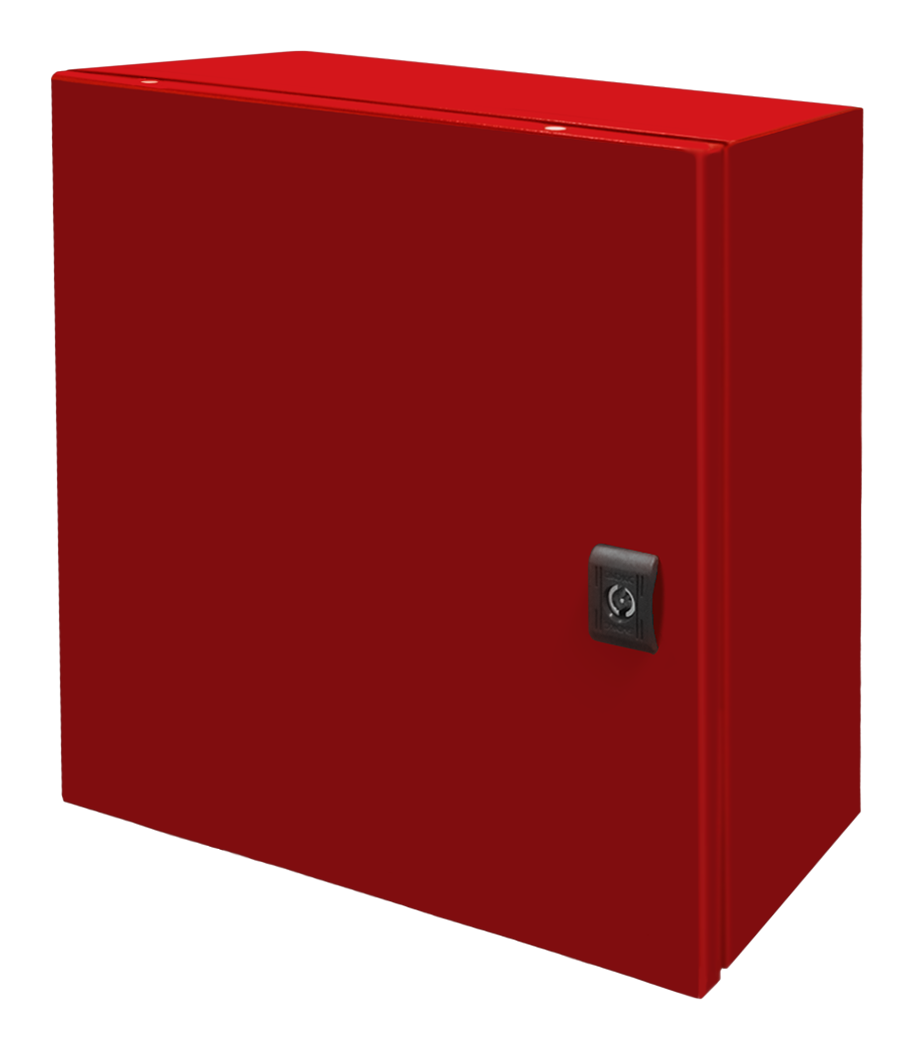

KL-I is designed to monitor and control addressable devices (AD) of the system. It is a mandatory component of the system.
Purpose:
-
exchange of information and control of the state of the AD;
-
automatic monitoring of the serviceability of the communication line (SLI) with the boosters;
-
information exchange with the BKU-I (RS-485 interface), receiving commands and transmitting them to the boosters.
Compatibility with control equipment:
-
2-wire ring SLI communication line (loop) with the possibility of branching;
-
Possibility to connect 250 addressable devices;
-
3 relay outputs (Fire, Start, Fault).
Connected equipment:
-
Fire detectors (FD);
-
Control Modules (MC).
Technical Specifications:
Parameter |
Value |
Mains voltage: nominal allowable |
~230 V Here 195 to 253 V |
Voltage in the SLI for power supply of addressable devices |
24 V |
RS-485 line length |
1 km |
SLI parameters: maximum current, not more than maximum short-circuit current, not more than maximum resistance, not more than |
250 mA 280 mA 50 Ohm |
Enclosure degree of protection |
IP55 |
Overall dimensions, not more than | 160х115х40 mm |
Weight, not more than |
14 kg |
Characteristics
Dimensions | 420х400х200 mm |
Exit to the monitoring station | 4 |
Maximum number of connected addressable devices | 250 |
Power supply: current, no more | 250 mA |
Power supply: voltage | 195 – 253 В |
RS-485 line length | 1 km |
Sheath protection degree | IP55 |
Temperature regime | from - 5 to 55 °C |
Weight | 14 kg |
