Description

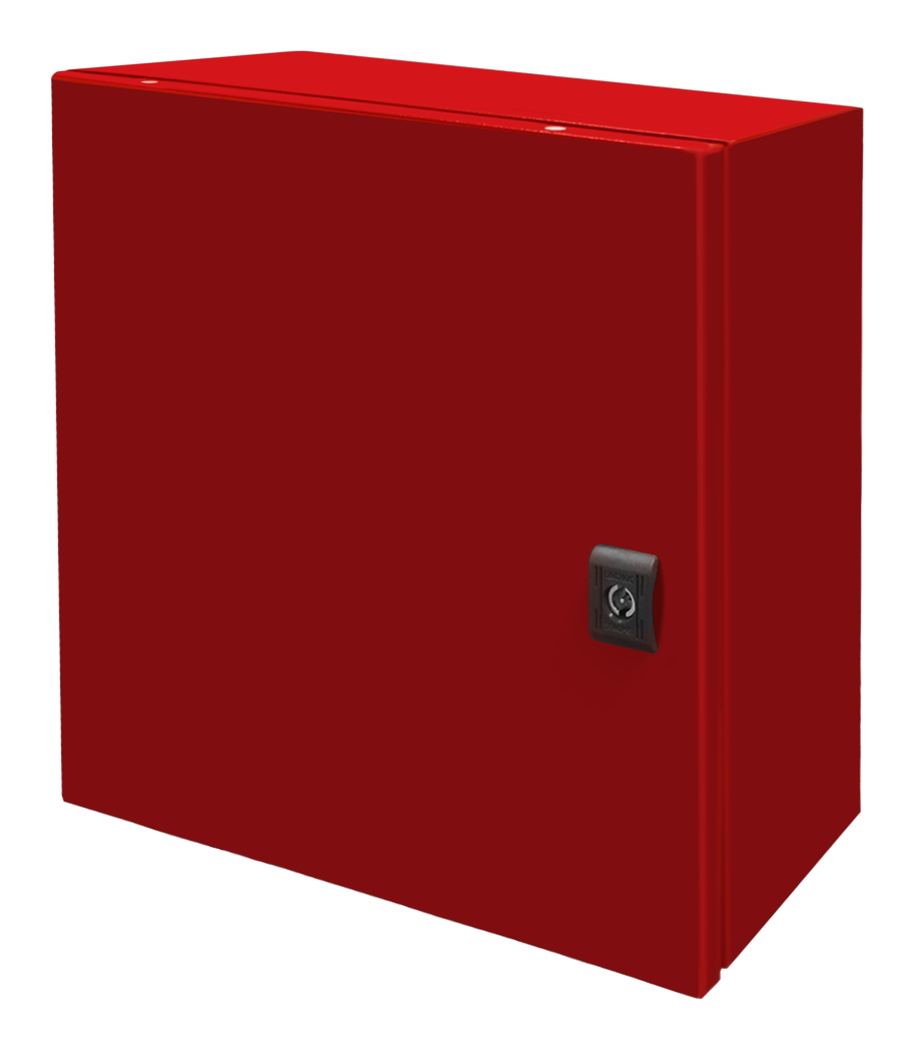

KL-I-2 combines the functions of two Controllers/
Is designed to monitor and control addressable devices (AD) of the system. It is a mandatory component of the system.
Purpose:
-
exchange of information and control of the state of the AD;
-
automatic monitoring of the serviceability of the communication line (SLI) with the boosters;
-
information exchange with the BKU-I (RS-485 interface), receiving commands and transmitting them to the boosters.
Connected equipment:
-
Fire detectors (FD);
-
Control Modules (MC).
Technical Specifications:
|
Parameter |
Value |
|
Mains voltage: nominal allowable |
~230 V Here 195 to 253 V |
|
SLI parameters: maximum current, not more than maximum short-circuit current, not more than maximum resistance, not more than |
200 mA 250 mA 50 Ohm |
|
Enclosure degree of protection |
IP55 |
| Overall dimensions, not more than | 520х400х40 mm |
| Weight, not more than |
17 kg |
Characteristics
| Dimensions | 420х400х200 mm |
| Exit to the monitoring station | 4 |
| Maximum number of connected addressable devices | 250 |
| Power supply: current, no more | 250 mA |
| Power supply: voltage | 195 – 253 В |
| RS-485 line length | 1 km |
| Sheath protection degree | IP55 |
| Temperature regime | from - 5 to 55 °C |
| Weight | 14 kg |
