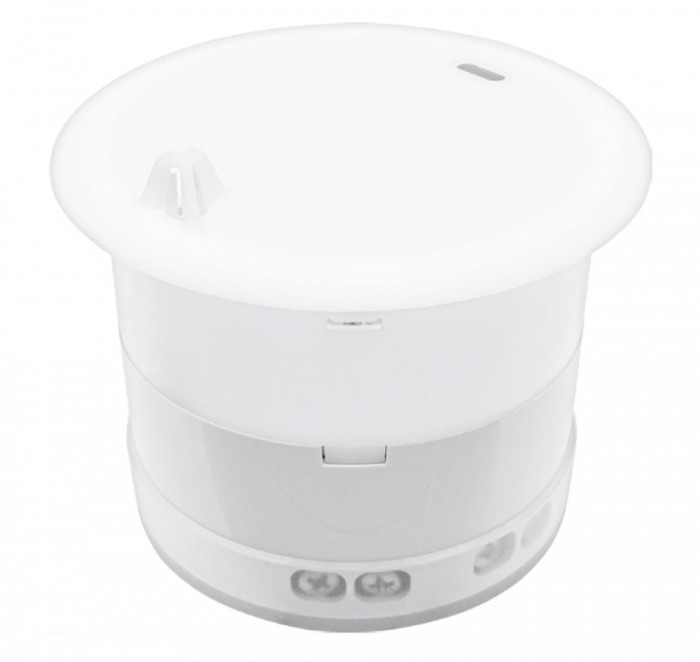

Sprinkler control module MKS-I-ks
The MKS-I sprinkler control module includes a CO-CPP control device. This device contains a block of ionizers (supercapacitors), the stored energy of which is used for forced electric triggering (heating) of the EAS on command from the BKU-I.
MKS-I provides control of ion-exchangers charge and their recharge from the SLI. Connected EASs are automatically monitored for serviceability of the communication line with them (breakage, short circuit) and for tampering (starting EAS).
Technical readiness time of MKS-I after a full discharge of the ionic batteries is not more than 45 minutes.
Technical readiness time of the SLI with 250 MKS-I (or satellite FDs) after a full discharge of the ionic batteries is not more than 48 hours.
Designed to receive signals from third-party technical means of fire automation with a relay output and further use it in the system as a logical event. As such technical means can be, for example, third-party power supplies (with relay outputs) or PPKP.
Technical Specifications:
Parameter |
Maximum value |
Voltage in the SLI | 18 - 24 V |
Current consumption from the SLI, not more: in "Ionizer charge " mode in all other modes |
17,2 mА 0,2 mА |
Enclosure degree of protection |
IP41 |
Overall dimensions, not more than |
54мм, Ø 89мм |
Weight, not more than |
0,25 kg |
Dimensions, mm | 54mm, Ø 89mm |
Power supply: voltage | до 26 В |
Sheath protection degree | IP41 |
Temperature regime | from -20 to 80 °C |
Weight | 0,2 kg |
