5871.00 rub.
Description

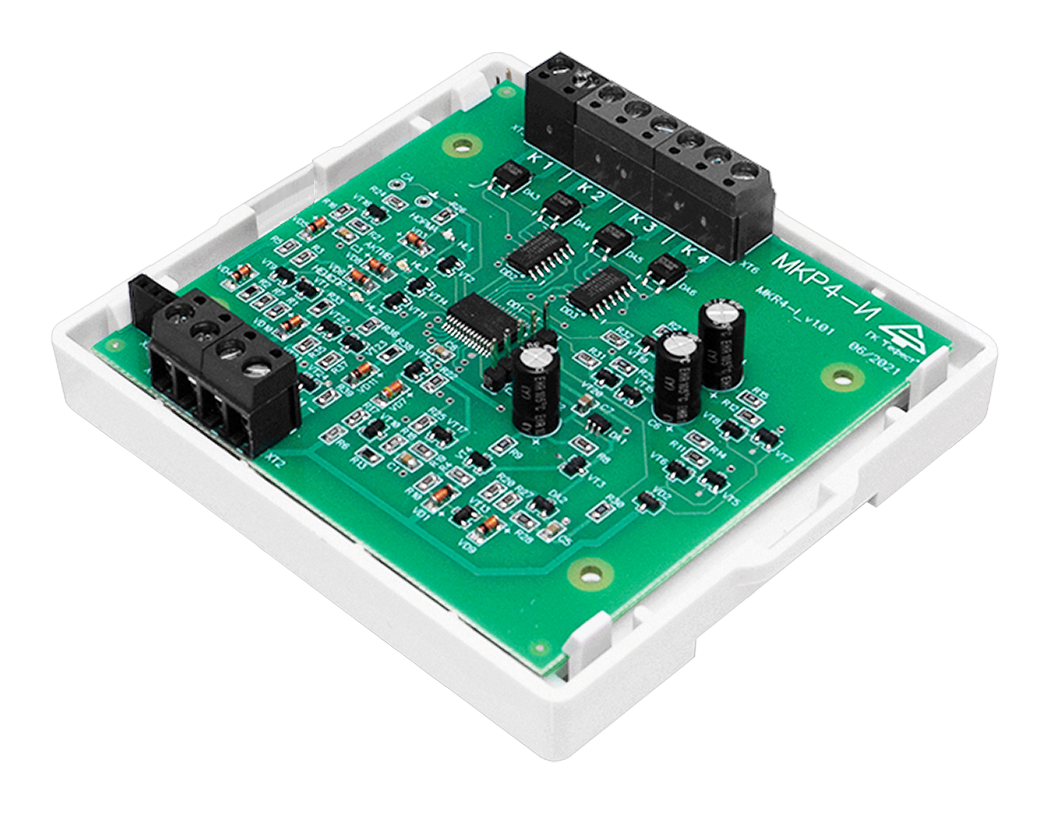

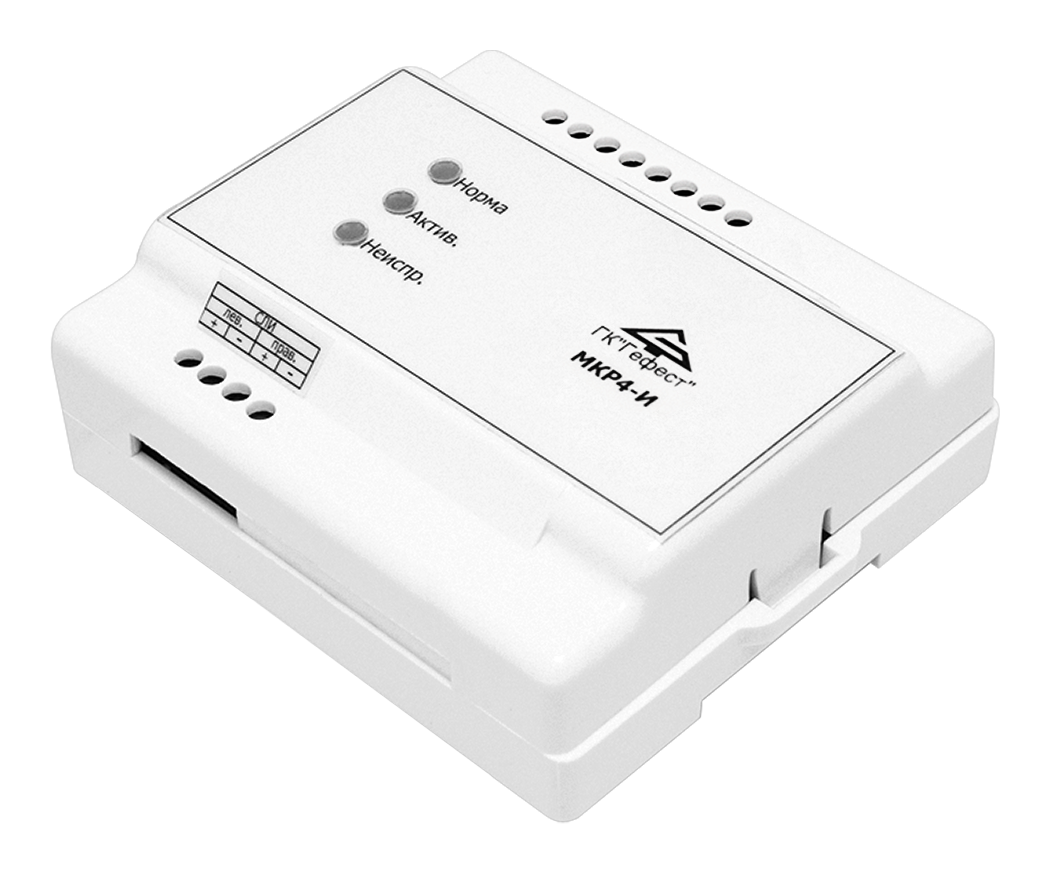

Designed to transmit relay control signals to third-party engineering, technological equipment and other devices involved in ensuring fire safety.
Features:
- number of outputs:
MKR4-I - 4 independent outputs
- control of the state of the primary circuit of optocouplers;
- the ability to configure logical events to activate the output.
Technical Specifications:
Parameter |
Maximum value |
Voltage in the SLI | 18 - 24 V |
Current consumption from SLI, not more: in "Closed loop" mode МКR2-I/МКR4-I in all other modesх |
4,2/8,2 mА 0,2 мА |
Maximum load on the optocoupler | 60V, 600 mА |
Enclosure degree of protection |
IP20 |
Overall dimensions, not more than |
93х104х34 mm |
Weight, not more than |
0,25 kg |
Characteristics
Dimensions, mm | 93х104х34 mm |
Sheath protection degree | IP20 |
Weight | 0,25 kg |
