4729.00 rub.

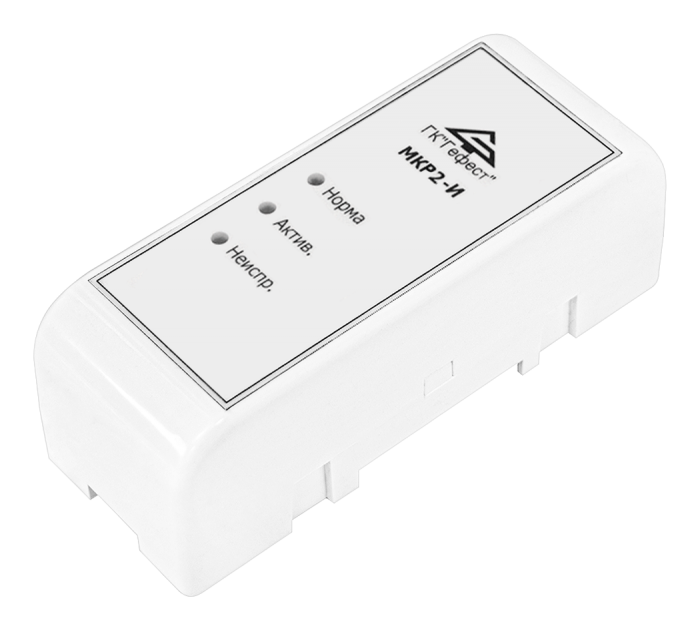

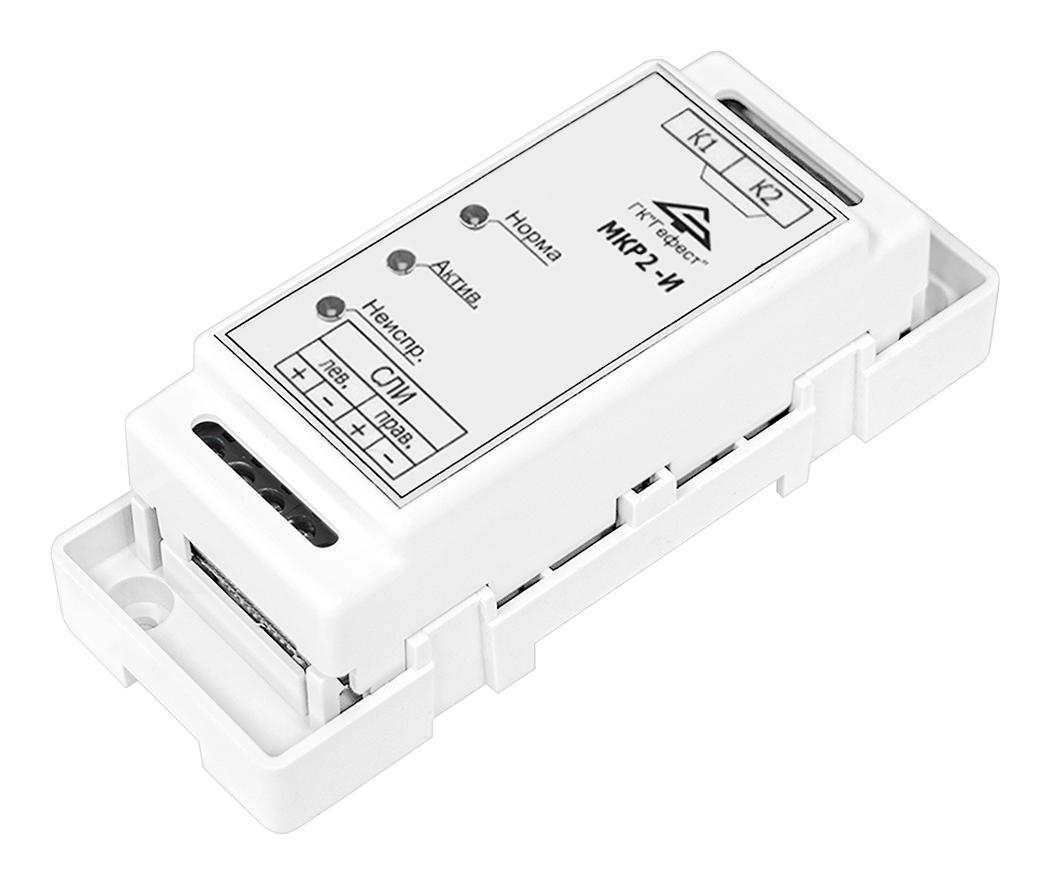

Description
Designed to transmit relay control signals to third-party engineering, technological equipment and other devices involved in ensuring fire safety.
Features:
- number of outputs:
MKR2-I - 2 independent outputs
- control of the state of the primary circuit of optocouplers;
- the possibility to configure logical events to activate the output.
Technical Specifications:
Parameter |
Maximum value |
Voltage in the SLI | 18 - 24 V |
Current consumption from SLI, not more: in "Closed loop"mode МКR2-I/МКR4-I in all other modes |
4,2/8,2 mА 0,2 mА |
Maximum load on the optocoupler | 60V 600 mА |
Enclosure degree of protection |
IP20 |
Overall dimensions, not more than |
90х40х40 mm |
Weight, not more than |
0,25 kg |
Characteristics
Dimensions, mm | 113х41х38 mm |
Power supply: voltage | от 19 до 27 В |
Sheath protection degree | IP41 |
Temperature regime | from -5 to 55 °C |
Weight | 0,2 kg |
