vendor code 00-00013219
3987.00 rub.
Description
They are designed to receive signals from third-party technical means of fire automation with a relay output and further use it in the system as a logical event. As such technical means can be, for example, third-party power supplies (with relay outputs) or PPKP.
Features:

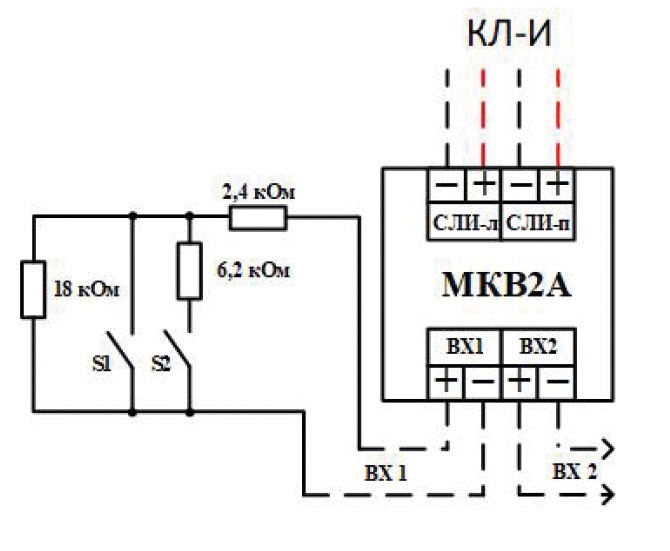

- Monitoring the state of the relay contacts:
MKV2A-I independent inputs;
- Automatically monitors inputs for open and short circuits (by resistance);
- The length of the communication line is not more than 1m.
Technical Specifications:
|
Parameter |
Maximum value |
| Voltage in the SLI | 26 V |
|
Current consumption from the SLI, max |
0,2 mА |
|
Enclosure degree of protection |
IP30 |
|
Overall dimensions, not more than |
113х41х38 mm |
| Weight, not more than |
0,2 kg |
Characteristics
| Consumption current | 0,2 mА |
| Dimensions, mm | 113х41х38 mm |
| Power supply: current, no more | 0,2 mА |
| Power supply: voltage | from 19 to 27 В |
| Sheath protection degree | IP41 |
| Temperature regime | from -5 to 55 °C |
| Weight | 0,2 kg |
