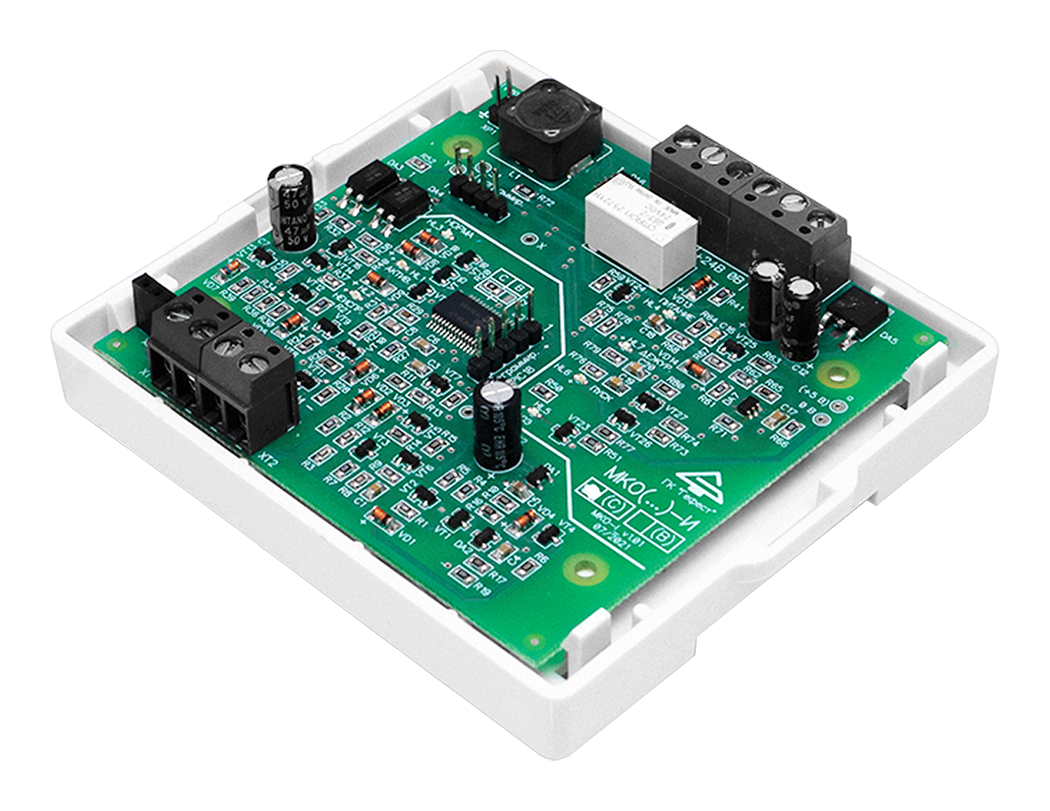

Designed to monitor and control light and sound sirens. The modules are available in 2 modifications MKO(B)-I and MKO(S)-I.

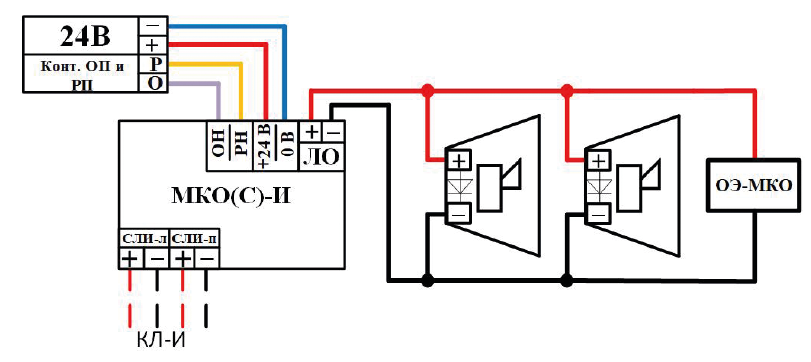

MKO (S)-I is designed to connect light and sound sirens, activated by command.
Performs voltage polarity reversal and/or switching to flashing mode in warning line WL on command from the BKU-I.
Features:
- monitoring and control of light and sound sirens:
MKO(S)-I - MKO(S)-I - switched on by command (e.g. sirens);
- automatic control of the serviceability of the alarm line (LS) for breakage and short circuit (by the presence of a response from the "OE-MKO");
- self-recovery of WL after a short circuit;
- 4 modes of operation:
direct polarity;
direct polarity with flashing;
reverse polarity (only MKO(S)-I);
reverse polarity with flashing (only MKO(S)-I);
- Check the condition of the external power supply;
- the possibility to configure a logical event to activate the output.
Technical Specifications:
стики:
Parameter |
Maximum value |
Voltage in the SLI | 18 - 24 V |
Current consumption from the SLI, max |
0,2 mA |
Enclosure degree of protection |
IP20 |
Overall dimensions, not more than |
98х90х34 mm |
Weight, not more than |
0,25 kg |
Consumption current | 20 mА |
Dimensions, mm | 94х104х34 mm |
Power supply: current, no more | 0,15 мА |
Power supply: voltage | 24 В |
Sheath protection degree | IP41 |
Temperature regime | from -5 to 55 °C |
Weight | 0,2 kg |
